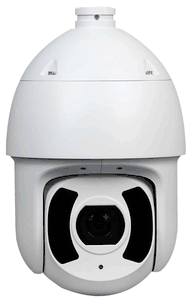

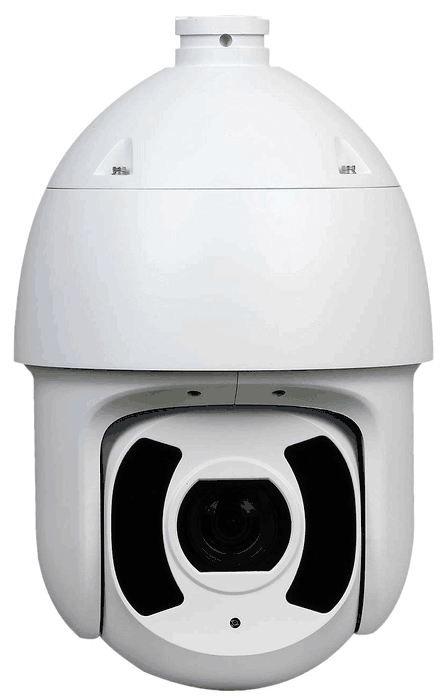

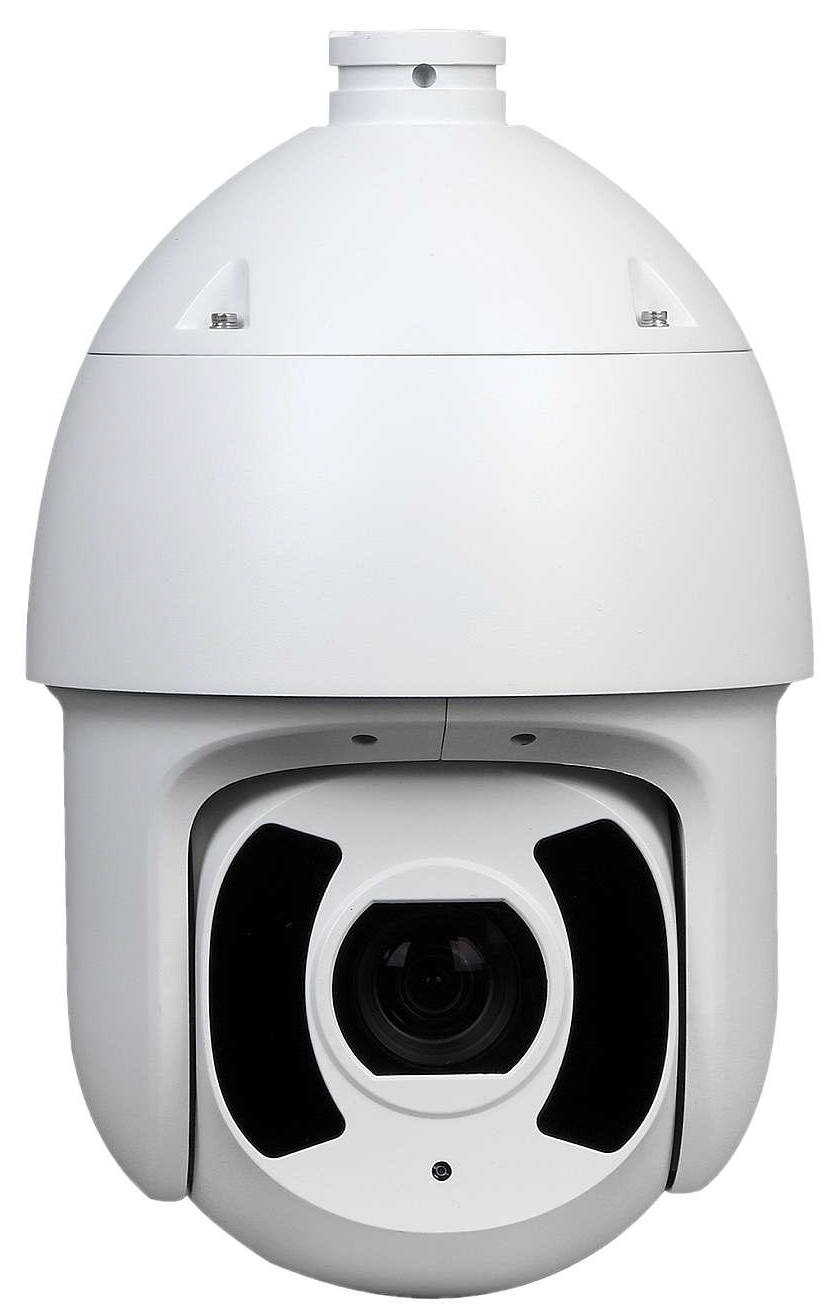

Eyemax NPT-IR-E2145 | 1080P H.265+ IR PTZ Network Camera with 45x Optical Zoom, 820ft IR Range, Starlight, True WDR, UL-Listed, IP67+IK10, Auto-tracking, IVS, PoE+

Model	NPT-IR-E2145
Camera
Image Sensor	1/2.8" STARVIS� CMOS
Effective Pixels	1920(H) x 1080(V), 2 Megapixels
RAM/ROM	512M/128M
Scanning System	Progressive
Electronic Shutter Speed	1/1s ~ 1/30,000s
Minimum Illumination	Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)
S/N Ratio	More than 55dB
IR Distance	Distance up to 250m (820ft)
IR On/Off Control	Auto/ Manual
IR LEDs	6
Lens
Focal Length	3.95 ~ 177.7mm
Max. Aperture	F1.6~ F4.95
Angle of View	H: 70.3� ~ 1.8�
Optical Zoom	45x
Focus Control	Auto/Manual
Close Focus Distance	100 ~ 1000mm
DORI Distance	Detect: 2345m(7694ft) Observe: 938m(3077ft) Recognize: 469m(1539ft) Identify: 234m(768ft)
Pan/Tilt/Rotation
Pan/Tilt Range	Pan: 0� ~ 360� endless; Tilt: -20� ~ 90�, auto flip 180�
Manual Control Speed	Pan: 0.1� ~ 200� /s; Tilt: 0.1� ~ 120� /s
Preset Speed	Pan: 300� /s; Tilt: 200� /s
Presets	300
PTZ Mode	5 Pattern, 8 Tour, Auto Pan, Auto Scan
Speed Setup	Human-oriented focal Length/ speed adaptation
Power up Action	Auto restore to previous PTZ and lens status after power failure
Idle Motion	Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period
Protocol	DH-SD, Pelco-P/D (Auto recognition)
Intelligence
Auto Tracking	Support
IVS	Tripwire, Intrusion, Abandoned/Missing, Face Detection, Heat Map
Video
Compression	H.265+ / H.265 / H.264+ / H.264
Streaming Capability	3 Streams
Resolution	1080P(1920�1080) / 1.3M(1280�960) / 720P(1280�720) / D1(704�576/704�480) / CIF(352�288/352�240)
Frame Rate	Main stream: 1080P/1.3M/720P(1~50/60fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.265 / H.264: 448K ~ 8192Kbps
Day/Night	Auto(ICR) / Color / B/W
Backlight Compensation	BLC / HLC / WDR (120dB)
White Balance	Auto, ATW, Indoor, Outdoor, Manual
White Balance	Auto, ATW, Indoor, Outdoor, Manual
Gain Control	Auto / Manual
Noise Reduction	Ultra DNR (2D/3D)
Motion Detection	Support
Region of Interest	Support
Electronic Image Stabilization (EIS)	Support
Defog	Support
Digital Zoom	16�
Flip	180�
Privacy Masking	Up to 24 areas
Privacy Masking	Up to 24 areas
Audio
Compression	G.711a/G.711Mu/AAC/G.722 / G.726/G.729/MPEG2-L2
Network
Ethernet	RJ-45 (10Base-T/100Base-TX)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x
Interoperability	ONVIF, PSIA, CGI
Streaming Method	Unicast / Multicast
Max. User Access	20 users
Edge Storage	NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 128GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS
Smart Phone	IOS, Android
Certifications
Certifications	CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 UL: UL60950-1+CAN/CSA C22.2,No.60950-1
Interface
Video Interface	1 port(BNC, 1.0V[p-p], 75O)
RS485	1
Audio I/O	1-Jan
Alarm I/O	2-Jul
Electrical
Power Supply	AC24V/3A(�25%), PoE+(802.3at)
Power Consumption	17W, 25W(IR On, Heater On)
Environmental
Operating Conditions	-40�C ~ 70�C (-40�F ~ +158�F) / Less than 95% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal
Dimensions	�209�337.4mm
Net Weight	5.8kg(12.79lb)
Gross Weight	9.1kg(20.06lb)
