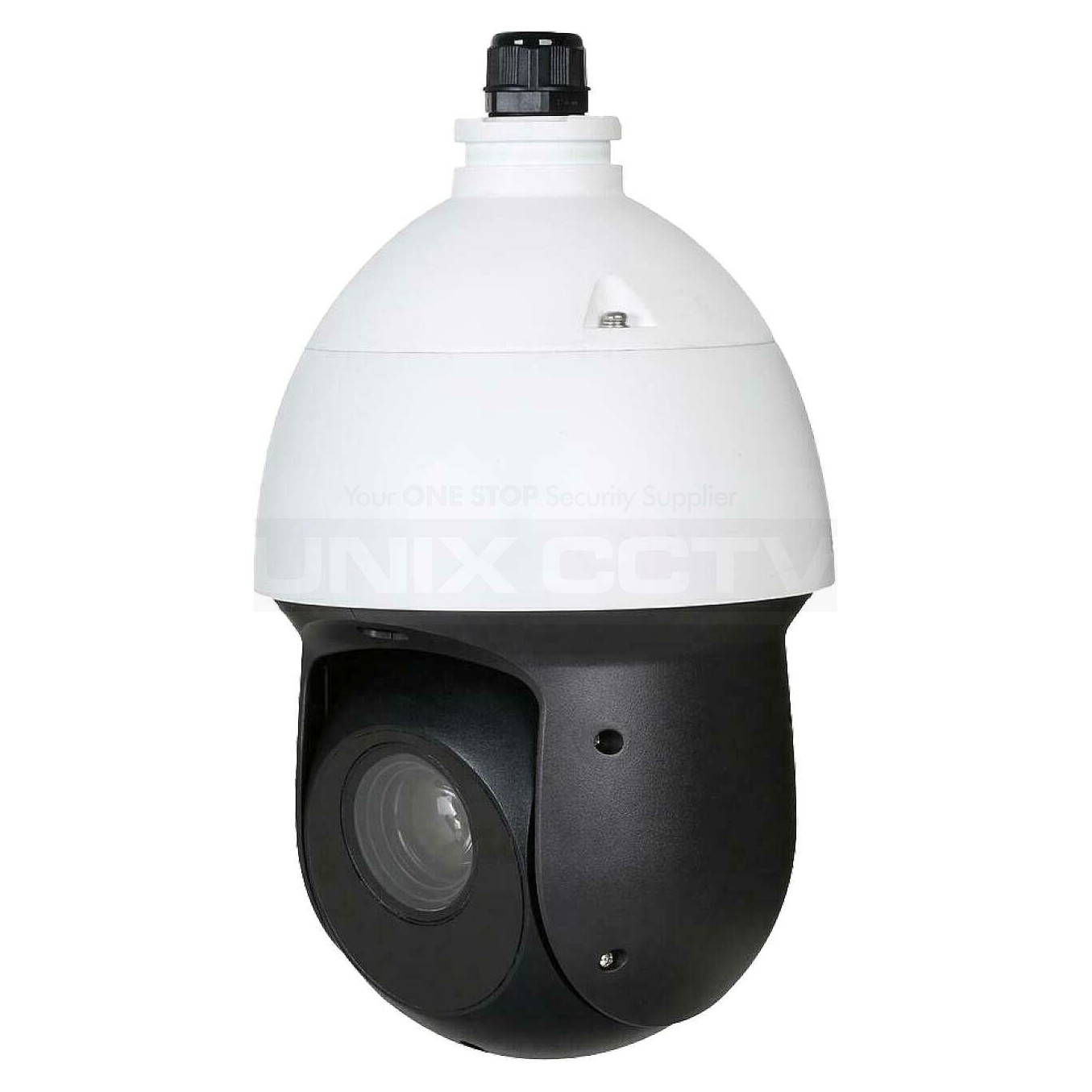

Eyemax NPT-IR-A9200SL IR-A9200SL | 1080P(2MP) H.265+ PTZ Network Camera with Starlight ,25x Optical Zoom, SMD Plus, 330ft IR Range, True WDR, WizSense, AI Series, PoE+

1/2.8″ 2Megapixel CMOS • Powerful 25x optical zoom • Starlight technology • Max. 50/60fps@1080P • Perimeter protection • Support PoE+ • IR distance up to 330ft (100m) • SMD PLUS • IP66

Mount Accessories

PTZ Junction Box	PTJB-E120
Pole Mount Bracket	CPM-E150
PTZ Ceiling Mount	PTMC-E300C

Camera
Image Sensor	1/2.8" STARVIS™ CMOS
Pixel	2MP
Max. Resolution	1920 (H) × 1080 (V)
ROM	4GB
RAM	1GB
Electronic Shutter Speed	1/1 s ~ 1/30,000 s
Scanning System	Progressive
Min. Illumination	Color: 0.005Lux@F1.6 B/W: 0.0005Lux@F1.6 0Lux@F1.6 (IR light on)
Illumination Distance	100 m (328.08 ft)
Illuminator On/Off Control	Zoom Prio/Manual/SmartIR
Illuminator Number	6
Lens
Focal Length	4.8 mm ~ 120 mm
Max. Aperture	F1.6 ~ F4.4
Field of View	H: 62.8°–2.6°; V: 33.2°–1.7°; D: 67.3°–3.9°
Optical Zoom	25x
Focus Control	Auto/Semi-Auto/Manual
Close Focus Distance	0.1 m–1.5 m (0.33 ft–4.92 ft)
Iris Control	Auto/Manual
DORI Distance	Detect: 1613 m (5291.99 ft) Observe: 646 m (2119.42 ft) Recognize: 323 m (1059.71 ft) Identify: 161 m (528.22 ft)
PTZ
Pan/Tilt Range	Pan: 0°–360° (endless) Tilt: -15°–90° (auto flip 180°)
Manual Control Speed	Pan: 0.1°–200°/s Tilt: 0.1°–120°/s
Preset Speed	Pan: 240°/s Tilt: 200°/s
Presets	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Speed Adjustment	Support
Power-off Memory	Support
Idle Motion	Preset/Tour/Pattern/Scanning
Protocol	DH-SD Pelco-P/D (auto recognition)
General Intelligence
Event Trigger	Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
IVS	Object Abandoned/Missing
Artificial Intelligence
Perimeter Protection	Tripwire and intrusion. Support alarm triggering by target types (human and vehicle). Support filtering false alarms caused by animals, rustling leaves, bright lights, etc.
SMD PLUS	Support
Face Detection	Support
Smart Capture	Support human, motor vehicle and non-motor vehicle image capture.
Video
Compression	H.265+/H.265/H.264+/H.264/MJPEG (sub stream)
Streaming Capability	3 streams
Resolution	1080P (1920 × 1080); 1.3 M (1280 × 960); 720P (1280 × 720); D1 (704 × 576/704 × 480); CIF (352 × 288/352 × 240)
Frame Rate	Main stream: 1080P/1.3 M/720P (1–50/60fps) Sub stream 1: D1/CIF (1–25/30fps) Sub stream 2: 1080P/1.3M/720P/D1/CIF (1–25/30fps)
Bit Rate Control	Variable/Constant
Bit Rate	H.265/H.264: 3 kbps ~ 20480 kbps
Day/Night	Auto(ICR)/Color/B/W
BLC	Support
WDR	120 dB
HLC	Support
White Balance	Auto/Indoor/Outdoor/Track/Manual/Sodium lamp/ Natural light/Street lamp
Gain Control	Auto/Manual
Noise Reduction	Ultra DNR (2D/3D)
Motion Detection	Support
Region of Interest (RoI)	Support
Image Stabilization	Electronic
Defog	Electronic
Digital Zoom	16x
Flip	180°
Privacy Masking	Up to 24 areas, and up to 8 areas in the same view
Audio
Compression	G.711a; G.711Mu; AAC; G.722.1; G.726; MPEG2-Layer2; G.729
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4; IPv6; HTTP; HTTPS; SSL; TCP/IP; UDP; UPnP; ICMP; IGMP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; SMTP; NTP; DHCP; DNS; PPPOE; DDNS; FTP; IP Filter; QoS; Bonjour; 802.1x
Interoperability	ONVIF Profile S&G&T; CGI
Streaming Method	Uni-cast/Multi-cast
User/Host	19
Storage	NAS; Local PC; Micro SD card (256G)
Browser	IE7 and newer versions Chrome 45 and newer versions Firefox 52 and earlier versions Safari (no version restrictions)
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS/Android
Certification
Certifications	CE: EN55032/EN55024/EN50130 ~ 4 FCC: Part15 subpartB, ANSI C63.4 ~ 2014 UL: UL62368 ~ 1+CAN/CSA C22.2,No. 62368 ~ 1
Port
Audio Input	1
Audio Output	1
Alarm I/O	2/1
Power
Power Supply	DC 12V/3A PoE+ (802.3at)
Power Consumption	13W 22W (IR on)
Environment
Operating Temperature	−40°C to +70°C (−40°F to +158°F)
Operating Humidity	≤95%
Protection	IP66; TVS 6000V lightning proof; Surge protection
Structure
Dimensions	Φ160 mm × 295 mm (6.30" × 11.61")
Net Weight	3 kg (6.61 lb)
Gross Weight	4.8kg (10.58lb)
