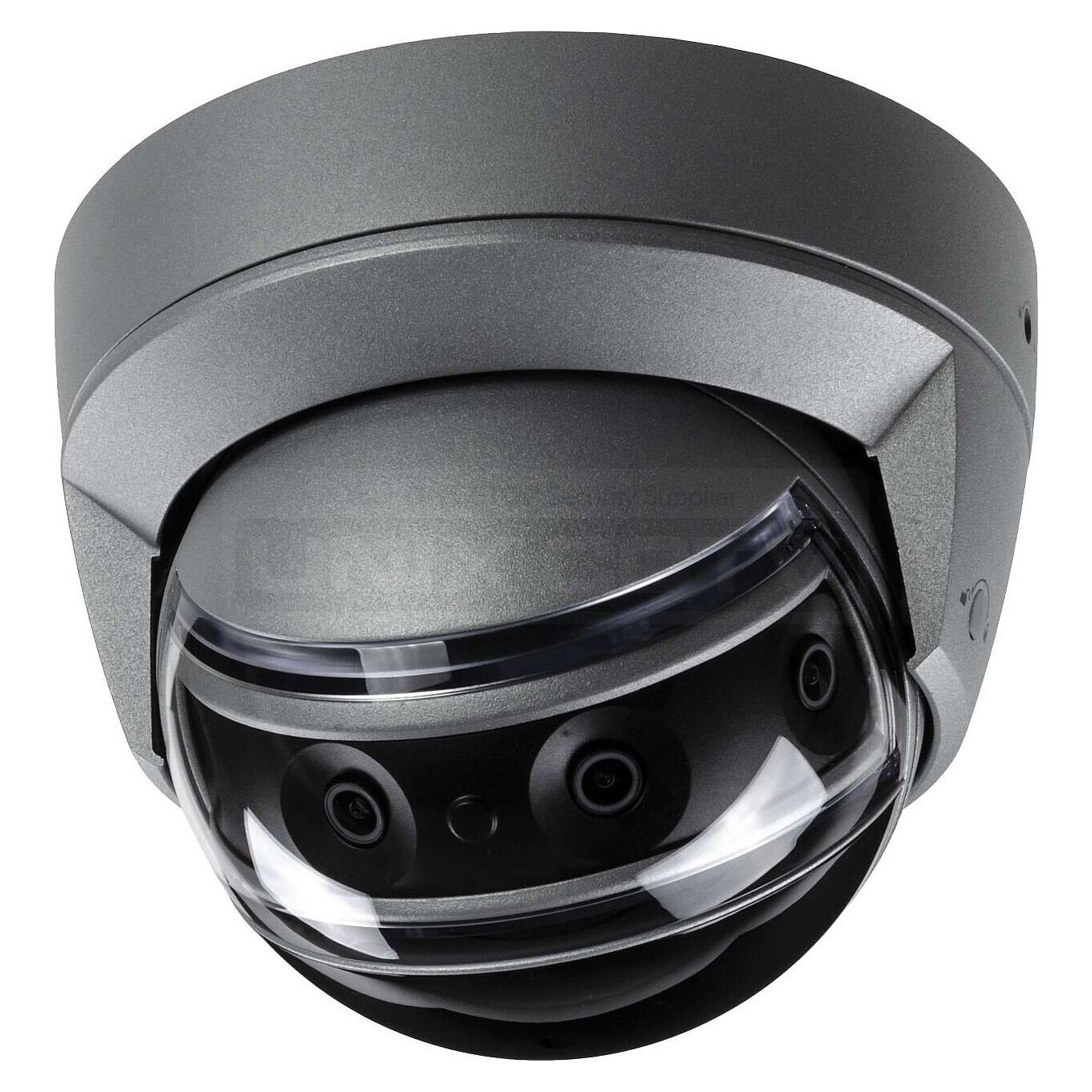

Eyemax NIT-EP2434-S28 4 × 2MP Multi-Sensor Panoramic Dome IP Camera, WizMind, Crowd + Vehicle Density, IP67, IK10, 12VDC / 24VAC / PoE

Four 2MP 1/2.8″ CMOS image sensor • Outputs max. 8MP (4096 × 1800) @30 fps • SMART H.264+ / H.265+ • Intelligent functions • Supports object tracking • Abnormality detection • 12VDC / 24VAC • IP67, IK10

Camera
Image Sensor	1/2.8" 4 × 2Megapixel progressive CMOS
Max. Resolution	4096 (H) × 1800 (V)
ROM	4 GB
RAM	2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto / Manual 1/3 s ~ 1/100,000 s
Min. Illumination	0.005 Lux @ F1.6 (Color, 30 IRE) 0.0005 Lux @ F1.6 (B/W, 30 IRE) 0 Lux (Illuminator on)
S/N Ratio	>56 dB
Illumination Distance	30 m (98.4 ft) (IR LED)
Illuminator On/Off Control	Auto / Manual
Illuminator Number	6 (IR LED)
Pan / Tilt / Rotation Range	Pan: 0° to 355° Tilt: 0° to 75° Rotation: -20° to 20°
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm
Max. Aperture	F1.6
Field of View	Horizontal :180°; Vertical 90°
Iris Type	Fixed
Close Focus Distance	0.6 m (2.0 ft)
DORI Distance	Detect : 38.6 m (126.6 ft) Observe : 15.4 m (50.5 ft) Recognize : 7.7m (25.3 ft) Identify : 3.9 m (12.8 ft)
Artifical Intelligence
Vehicle Density	Vehicle density; parking upper limit; vehicle congestion alarm
Crowd Density	Crowd map, global people counting; people counting in area
General Intelligence
IVS	Tripwire; intrusion
Video
Video Compression	H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream)
Smart Codec	Smart H.265+ / Smart H.264+
Video Frame Rate	Main stream: 4096 × 1800 (1–25/30 fps) Sub stream: 1024 × 452 (1–25/30 fps) Third stream: 1920 × 832 (1–25/30 fps)
Stream Capability	3 streams
Resolution	4096 × 1800; 3840 × 1680; 2880 × 1264; 1024 × 452; 1920 × 832; 1280 × 560
Bit Rate Control	CBR / VBR
Video Bit Rate	H.264: 9 kbps–17664 kbps H.265: 9 kbps–17664 kbps
Day/Night	Auto (ICR) / Color / B/W
BLC	Yes
HLC	Yes
WDR	DWDR
Scene Self-adaptation (SSA)	Yes
White Balance	Auto / natural / street lamp / outdoor / manual / regional custom
Gain Control	Auto/Manual
Noise Reduction	3D NR
Motion Detection	OFF / ON (4 areas, rectangular)
Region of Interest (RoI)	Yes (4 areas)
Smart Illumination	Yes
Defog	Yes
Privacy Masking	4 areas
Audio
Audio Compression	G.711A; G.711Mu; G.726; G.723
Alarm Event
Alarm Event	No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; safety exception; crowd distribution map; vehicle congestion; parking upper limit
Network
Network	RJ-45 (10/100/1000 Base-T)
Cyber Security	Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade
Protocol	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec
User/Host	20 (Total bandwidth: 80 M)
Storage	FTP; SFTP; Micro SD card (support max. 256 G); NAS
Browser	IE: IE9 and later Chrome: 50 and later Firefox: 48 and later
Management Software	Smart PSS; DSS; DMSS
Mobile Phone	IOS; Android
Certifications
Certifications	CE-LVD: EN62368 ~ 1 CE-EMC: Electromagnetic Compatibility Directive FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950 ~ 1 CAN/CSA C22.2 No.60950 ~ 1-07
Port
RS-485	1 (baud rate range: 1200 bps–115200 bps)
Audio Input	1 channel (RCA port)
Audio Output	1 channel (RCA port)
Alarm Input	2 channels in : 5mA 3V–5V DC
Alarm Output	2 channels out : 1,000mA 30V DC/500mA 50V DC
Power
Power Supply	12VDC / 24VAC / PoE(802.3at)
Power Consumption	Basic power consumption: 4.9W (12V DC); 6.4W(24V AC); 6.5W (PoE) Max. power consumption (ICR + IR LED): 12.5W (12V DC);14.3W(24V AC); 14.9W (PoE)
Environment
Operating Conditions	−40°C to +60°C (−40°F to +140°F)/Less than 95% RH
Storage Temperature	−40°C to +60°C (−40°F to +140°F）
Protection Grade	IP67; IK10
Construction
Casing	Metal + plastic
Dimensions	169.5 mm × ∅212 mm (6.7" × ∅8.3")
Net Weight	3.65 kg (8.0 lb)
Gross Weight	4.37 kg (9.6 lb)
