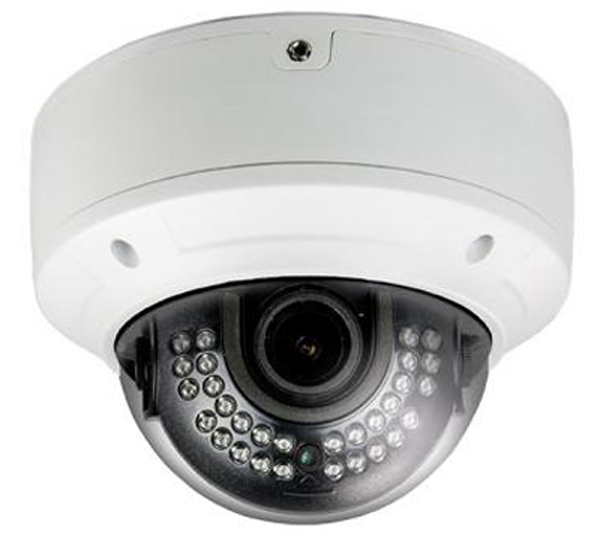

IP Power NIT-CS232FV 2 Megapixel Outdoor IR Dome IP Camera

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

to USA & CANADA

One year warranty on all products

Model	NIT-CS232FV
CAMERA
Image Sensor	1/2.8� CMOS
Image Size	1920�1080
Electronic Shutter	1 / 25s ~ 1 / 100000s
Min. Illumination	0 Lux ( IR LED ON )
Lens	2.8~12mm
Lens Mount	CS / �14
Wide Dynamic Range	Digital WDR
Digital NR	3D DNR
Video Compression	H.264
Resolution	1080P(1920x1080), 720P(1280x720), VGA(640x480), QVGA(320x240)
Multi-Stream	1920x1080(1~30fps) / 1280x720(1~ 30fps) 1280x720(1 ~10fps) / 640x480(1 ~ 30fps) / 320x240(1 ~30fps)
Bit Rate	64 Kbps ~ 8 Mbps
Encode Mode	VBR / CBR
Quality	Five levels under VBR; Freely adjustable under CBR
Image Settings	ROI coding, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, sharpen, NR, etc. adjustable through client software or web browser
Audio Compression	G711A
INTERFACE
Network	RJ45
Video Output	CVBS video output (BNC�1)
Audio	Two-way audio(MIC IN x1,MIC OUT x1)
Storage Card	Support TF card, the max capacity is 64GB
RS485	Yes
Alarm Input	1CH
Alarm Output	1CH
FUNCTIONS
Remote Monitoring	IE browsing,CMS remote control
Online Connection	Support simultaneous monitoring for up to 4 users; Support multi-stream real time transmission
Protocol	TCP/IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, SMTP,FTP
Storage	TF card local storage; Network remote storage
Smart Alarm	Motion Alarm; Sensor Alarm
Day & Night	ICR
PTZ	RS485x1
PoE	Yes
IR Distance	20 ~ 30m
Water-proof	IP66
OTHERS
Power Supply	DC 12V / PoE
Power Consumption	< 3W
IR ON	< 6.5W
Operating Environment	-20�C ~ 50�C, 10% ~ 90% humidity
Dimensions	�150mm � 114mm (�5.9 in x 4.5 in)
