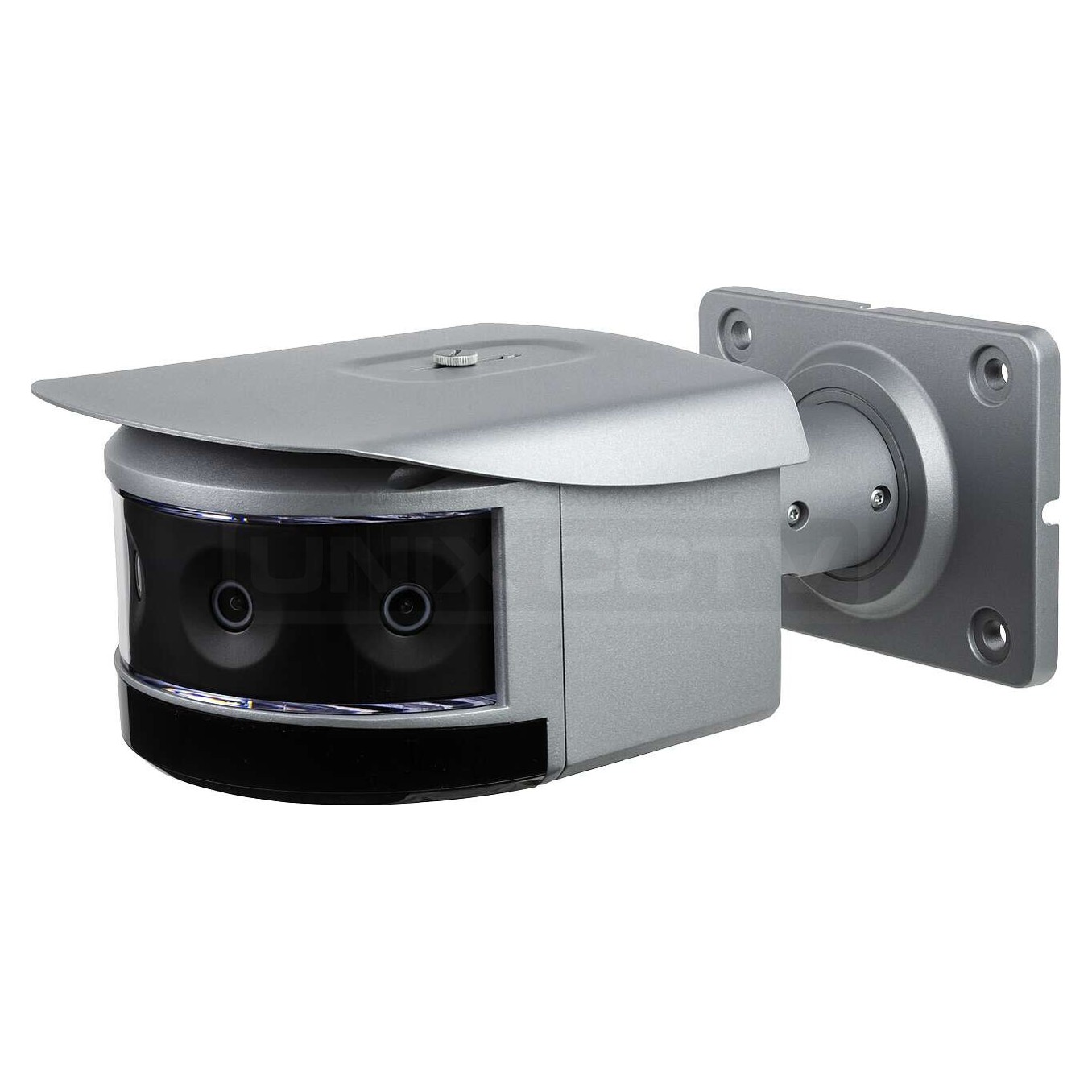

IP Cameras and Network Video Recorders NVRs Eyemax IP Cameras and NVR's Eyemax NIR-EP2434-S28 4 × 2MP Multi-Sensor Panoramic Bullet IP Camera, WizMind, Crowd + Vehicle Density, IP67, IK10, 12VDC / 24VAC / PoE
IP Cameras and Network Video Recorders NVRs Eyemax IP Cameras and NVR's Eyemax NIR-EP2434-S28 4 × 2MP Multi-Sensor Panoramic Bullet IP Camera, WizMind, Crowd + Vehicle Density, IP67, IK10, 12VDC / 24VAC / PoE
- Four 2MP 1/2.8″ CMOS image sensor, low illuminance, high image definition
- Outputs max. 8MP (4096 × 1800) @30 fps
- H.265 codec, high compression rate, ultra-low bit rate
- Built-in IR LED, max. IR distance: 30 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- DWDR, 3D NR, HLC, BLC, digital watermarking
- Intelligent functions: Crowd distribution map, Vehicle Density situation
- Abnormality detection: Motion detection, video tampering, scene changing, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection
- Alarm: 2 in, 2 out; audio: 1 in, 1 out; 485; BNC; supports max. 256 G SD card
- 12V DC/24V AC/PoE power supply; easy for installation
- Supports object tracking
- IP67, IK10 protection
| Camera | |
|---|---|
| Image Sensor | 1/2.8"4 × 2Megapixel progressive CMOS |
| Max. Resolution | 4096 (H) × 1800 (V) |
| ROM | 4 GB |
| RAM | 2 GB |
| Scanning System | Progressive |
| Electronic Shutter Speed | Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination | 0.002 Lux@F1.6 (Color, 30IRE) 0.0002 Lux@F1.6 (B/W, 30IRE) 0 Lux (Illuminator on) |
| S/N Ratio | >56 dB |
| Illumination Distance | 30 m (98.42 ft) (IR LED) |
| Illuminator On/Off Control | Auto/Manual |
| Illuminator Number | 8 (IR LED) |
| Pan/Tilt/Rotation Range | Pan: 0° ~ 355° Tilt: 0° ~ 90° Rotation:0° ~ 360° |
| Lens | |
| Lens Type | Fixed-focal |
| Mount Type | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.6 |
| Field of View | Horizontal: 180°; Vertical: 90° |
| Iris Type | Fixed |
| Close Focus Distance | 0.6 m (2.0 ft) |
| DORI Distance | Detect: 38.6 m (126.6 ft) Observe: 15.4 m (50.5 ft) Recognize: 7.7m (25.3 ft) Identify: 3.9 m (12.8 ft) |
| Professional, intelligent | |
| Vehicle Density | Vehicle density; parking upper limit; vehicle congestion alarm |
| Crowd Distribution Map | Crowd map, global people counting; people counting in area |
| General Intelligence | |
| IVS | Tripwire; intrusion |
| Video | |
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG (only supported by the sub stream) |
| Smart Codec | Smart H.265+ / Smart H.264+ |
| Video Frame Rate | Main stream: 4096 × 1800 (1–25/30 fps) Sub stream: 1024 × 452 (1–25/30 fps) Third stream: 1920 × 832 (1–25/30 fps) |
| Stream Capability | 3 streams |
| Resolution | 4096 × 1800; 3840 × 1680; 2880 × 1264; 1024 × 452; 1920 × 832; 1280 × 560 |
| Bit Rate Control | CBR/VBR |
| Video Bit Rate | H.264: 9 kbps–17664 kbps H.265: 9 kbps–17664 kbps |
| Day / Night | Auto (ICR) / Color / B/W |
| BLC | Yes |
| HLC | Yes |
| WDR | DWDR |
| Scene Self-adaptation (SSA) | Yes |
| White Balance | Auto / natural / street lamp / outdoor / manual / regional custom |
| Gain Control | Auto / Manual |
| Noise Reduction | 3D NR |
| Motion Detection | OFF/ON (4 areas, rectangular) |
| Region of Interest (RoI) | Yes (4 areas) |
| Smart Illumination | Yes |
| Defog | Yes |
| Privacy Masking | 4 areas |
| Audio | |
| Audio Compression | G.711A; G.711Mu; G.726; G.723 |
| Alarm Event | |
| Alarm Event | No SD card; SD card full; SD card error; network disconnection; IP conflict; illegal access; motion detection; video tampering; tripwire; intrusion; scene changing; audio detection; intensity change; voltage detection; external alarm; safety exception; crowd distribution map; vehicle congestion; parking upper limit |
| Network | |
| Network | RJ-45 (10/100/1000 Base-T) |
| Cyber Security | Video encryption; firmware encryption; configuration encryption; Digest; WSSE; account lockout; security logs; IP/MAC filtering; generation and importing of X.509 certification; syslog; HTTPS; 802.1x; trusted boot; trusted execution; trusted upgrade |
| Protocol | IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multicast; ICMP; IGMP; NFS; SAMBA; PPPoE; 802.1x; SNMP; Bonjour |
| Interoperability | ONVIF (Profile S/Profile G/Profile T); CGI; P2P; Milestone; Genetec |
| User/Host | 20 (Total bandwidth: 80 M) |
| Storage | FTP; SFTP; Micro SD card (support max. 256 G); NAS |
| Browser | IE: IE9 and later Chrome: 50 and later Firefox: 48 and later |
| Management Software | Smart PSS; DSS; DMSS |
| Mobile Phone | IOS; Android |
| Certification | |
| Certifications | CE-LVD: EN62368 ~ 1 CE-EMC: Electromagnetic Compatibility Directive FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950 ~ 1 CAN/CSA C22.2 No.60950 ~ 1-07 |
| Port | |
| RS-485 | 1 (baud rate range: 1200 bps–115200 bps) |
| Audio Input | 1 channel (RCA port) |
| Audio Output | 1 channel (RCA port) |
| Alarm Input | 2 channels in: 5mA 3V–5V DC |
| Alarm Output | 2 channels out: 1,000mA 30V DC/500mA 50V DC |
| Power | |
| Power Supply | 12V DC/24V AC/PoE+ (802.3at) |
| Power Consumption | Basic power consumption: 5W (12V DC); 6.3W(24V AC); 6.3W (PoE) Max. power consumption (ICR + IR LED): 13.7W (12V DC);16.2W(24V AC); 16.2W (PoE) |
| Environment | |
| Operating Conditions | −40°C to +60°C/Less than 95% RH |
| Storage Temperature | −40°C to +60°C (−40°F to +140°F) |
| Protection Grade | IP67; IK10 |
| Construction | |
| Casing | Metal + plastic |
| Dimensions | 298.3 mm × 172.5 mm × 120.5 mm (11.74" × 6.79" × 4.74") (L × W × H) |
| Net Weight | 2.86 kg (6.31 lb) |
| Gross Weight | 3.35 kg (7.39 lb) |
