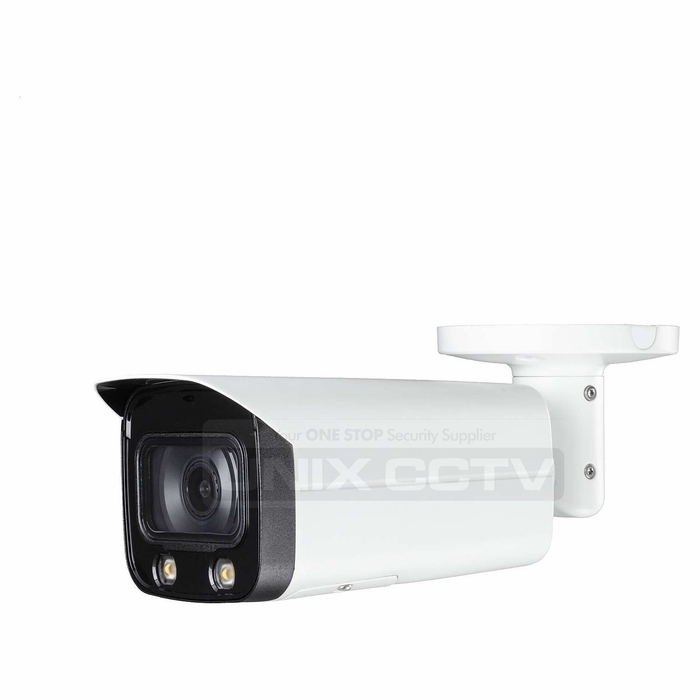

Eyemax NIR-E4222-W28 Eyemax E4222 AI Series | 4MP Outdoor IR Bullet Network Camera, Full Color Night View, H.265+, IP67, Fixed Lens, True WDR (140dB), DC 12V or PoE

Face Detection, Perimeter Protection and People Counting functions • 1/1.8″ Progressive Scan CMOS • 2688 × 1520 @ 25/30fps • 2.8mm Lens • H.265 & H.264 triple-stream encoding • WDR (140 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC • Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS • 1/1 Alarm in/out, 1/1 audio in/out • Up to 66ft (20m) IR Range • IP67 + IK10 • Micro SD Memory slot available.

Mount Accessories

Junction Box	CJB-E135
Pole Mount Bracket	CPM-E150

Camera
Image Sensor	1/1.8" 4Megapixel progressive scan CMOS
Effective Pixels	2688(H) × 1520(V)
RAM/ROM	512MB/128MB
Scanning System	Progressive
Electronic Shutter Speed	Auto / Manual, 1/3 ~ 1/100,000s
Minimum Illumination	0.002 Lux@F1.6
IR Distance	Distance up to 20m (66 ft)
IR On/Off Control	Auto / Manual
IR LEDs	2
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	2.8mm
Max. Aperture	F1.6
Angle of View	H: 113° V:60°
Aperture Type	Fixed
Close Focus Distance	1.3m(4.27ft)
DORI Distance	Detect: 58m(190ft) Observe: 23m(75ft) Recognize: 12m(39ft) Identify: 6m(20ft)
Pan / Tilt / Rotation
Pan/Tilt/Rotation Range	Pan:0° ~ 360° Tilt:0° ~ 78° Rotation:0° ~ 360°
Artificial Intelligence
Face Detection	Support face image capture
Perimeter Protection	Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering
People Counting	Support Line crossing/Region/Queueing people counting; Support 4 accesses independent detection, 4 areas independent detection
General Intelligence
Event Trigger	Motion detection, Video tampering, Scene changing, Network disconnection, IP address conflict, Illegal Access, Storage anomaly
General Intelligence	Object Abandoned/Missing
Heat Map	Yes
Video
Compression	H.265 / H.264 / H.264B / H.264H / MJPEG (sub stream)
Smart Codec	Yes
Streaming Capability	3 Streams
Resolution	2688 × 1520 / 2560 × 1440 / 2304 × 1296 / 1080P(1920 × 1080) / 1.3M(1280 × 960) / 720P(1280 × 720) / D1(704 × 576/704 × 480) / VGA(640 × 480) / CIF(352 × 288 / 352 × 240)
Main Stream Frame Rate	2688 × 1520 (1 ~ 25/30fps) 2560 × 1440 (1 fps–25/30 fps) 1920 × 1080 (1 fps–50/60 fps)
Sub Stream Frame Rate	D1 (1 ~ 25/30fps) D1 (1 fps–50/60 fps)
Third Stream Frame Rate	1080P (1 ~ 16fps)
Bit Rate Control	CBR / VBR
Bit Rate	H.264: 32 ~ 8192Kbps H.265: 19 ~ 8192Kbps
Day/Night	Day/Night: Electronic Auto/Color/B/W
BLC Mode	BLC / HLC / WDR (140 dB)
White Balance	Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control	Auto / Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization (EIS)	N/A
Smart IR	Yes
Defog	Yes
Flip	0° / 90° / 180° / 270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	G.711a / G.711Mu / G.726 / AAC / G.723
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4 / IPv6 / HTTP / HTTPS / TCP / UDP / ARP / RTP / RTSP / RTCP / RTMP / SMTP / FTP / SFTP / DHCP / DNS / DDNS / QoS / UPnP / NTP / Multicast / ICMP / IGMP / NFS / PPPoE / 802.1x / SNMP
Interoperability	ONVIF (Profile S / Profile G / Profile T) / CGI / Milstone / Genetec / P2P
Streaming Method	Unicast / Multicast
Max. User Access	20 Users
Edge Storage	NAS / FTP / SFTP / Mirco SD card 256GB
Web Viewer	IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)
Management Software	Smart PSS, DSS, DMSS
Smart Phone	iOS, Android
Certifications
Certifications	CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07
Interface
Audio Interface	Built-in MIC
RS485	N/A
Alarm	1 channel In: 5mA 5V DC 1 channel Out: 300mA 12V DC
Electrical
Power Supply	DC 12V (±30%), PoE(802.3af) (Class 0)
Power Consumption	<7.4W
Environmental
Operating Conditions	−30° C ~ +60° C (−22° F ~ +140° F) / Less than 95% RH
Strorage Conditions	−30° C ~ +60° C (−22° F ~ +140° F)
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal
Dimensions	244.1mm × 79.0mm × 75.9mmm ( 9.61" × 3.11" × 2.99" )
Net Weight	0.815Kg (1.8 lb)
Gross Weight	1.08Kg (2.38 lb)
