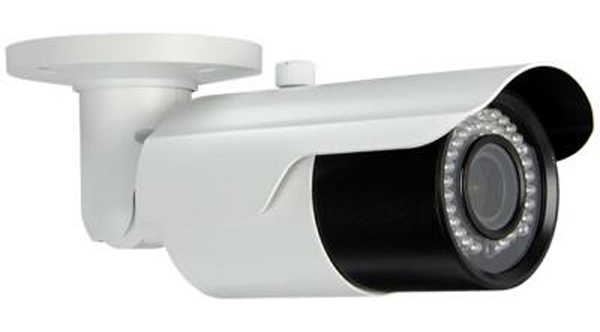

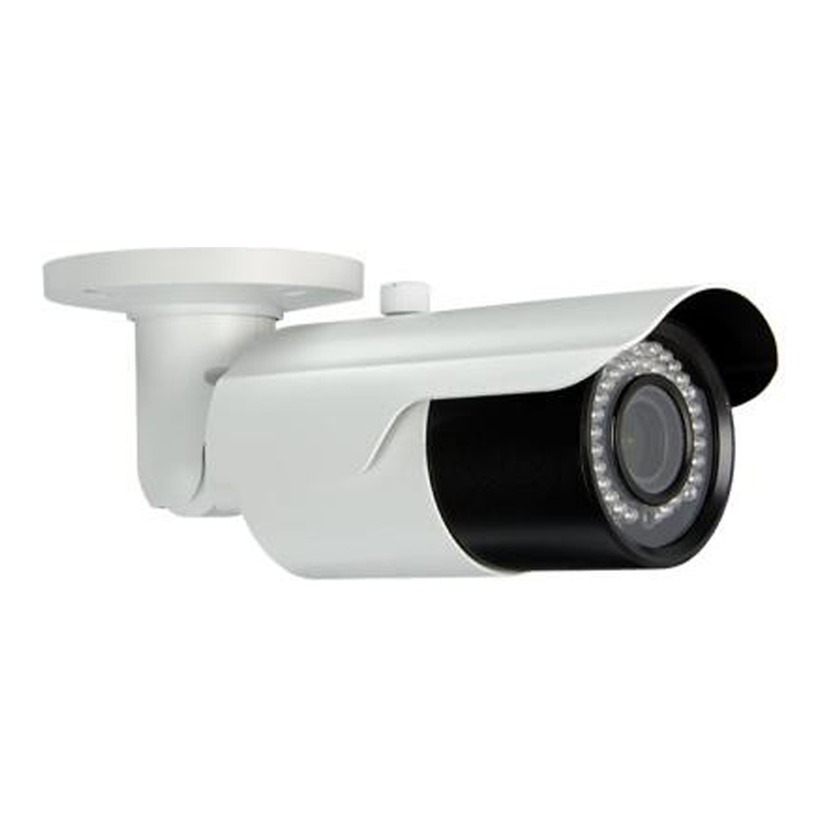

IP Power NIR-C3042FV 3 Megapixel IP IR Bullet Camera

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

to USA & CANADA

One year warranty on all products

Model	NIR-C3042FV
CAMERA
Image Sensor	1 / 3 �CMOS
Image Size	2048 x 1536
Electronic Shutter	1 / 25 s ~ 1 / 100000 s
Min. Illumination	0 Lux ( IR LED ON )
Lens	2.8 ~ 12 mm Vari-focal Lens
Lens Mount	CS / �14
Video Compression	H.264 / MJPEG
Resolution	3MP ( 2048 � 1536 ), 1080P ( 1920 � 1080 ), 720P ( 1280 � 720 ), D1, CIF, 480 x 240
Multi-Stream	3MP ( 1 ~ 30fps ) / 1920 x 1080 ( 1 ~ 30fps ) 1280 x 720 ( 1 ~ 10fps ) / D1 ( 1 ~ 30fps ) / CIF ( 1 ~ 30fps ), CIF ( 1 ~ 30fps ) / 480 x 240 ( 1 ~ 30fps )
Bit Rate	64 Kbps ~ 8 Mbps
Encode Mode	VBR / CBR
Quality	Five levels under VBR; Freely adjustable under CBR
Image Settings	ROI coding, Saturation, Brightness, Chroma, Contrast, Wide Dynamic, Sharpen, NR,etc. adjustable through client software or web browser
FUNCTIONS
Remote Monitoring	IE browsing,CMS remote control
Online Connection	Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Protocol	TCP / IP, UDP, DHCP, NTP, RTSP, PPPoE, DDNS, Protocol SMTP, FTP
Storage	Network remote storage
Smart Alarm	Motion Alarm
Day & Night	ICR
PoE	Yes
IR Distance	30 ~ 50m
Water-proof	IP66
INTERFACE
Network	RJ45
Audio	Two-way audio (MIC IN � 1, MIC OUT � 1)
Video Output	CVBS video output ( BNC x 1 )
Storage Card	Support TF card, the max capacity is 64GB
RS485	Yes
Alarm Input / Output	1 CH / 1 CH
OTHERS
Power Supply	DC 12V / PoE
Power Consumption	< 4W
IR Consumption ON	< 8W
Operating Environment	-40�C ~ 50�C, 10% ~ 90% humidity
Dimensions	�109mm � 284mm (�4.3 in x 11.2 in)
