IP Cameras and Network Video Recorders NVRs IP Power Cameras and NVRs IP Power Cameras IP Power NIP-A2H22 Smart IR 2 MegaPixel IP Outdoor IR PTZ Camera with High Speed × 22 Zoom
IP Cameras and Network Video Recorders NVRs IP Power Cameras and NVRs IP Power Cameras IP Power NIP-A2H22 Smart IR 2 MegaPixel IP Outdoor IR PTZ Camera with High Speed × 22 Zoom

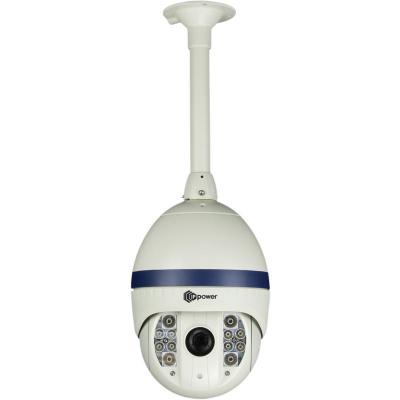

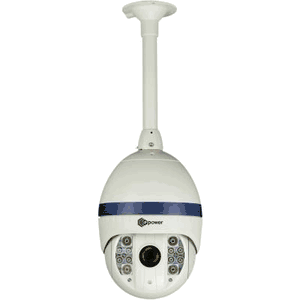

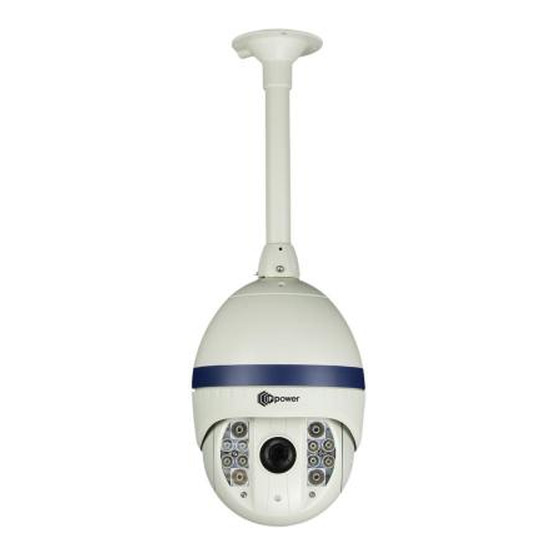

IP Power NIP-A2H22 Smart IR 2 MegaPixel IP Outdoor IR PTZ Camera with High Speed × 22 Zoom
Additional View
IP Power NIP-A2H22 Smart IR: 2 MegaPixel IP Outdoor IR PTZ Camera with HIGH SPEED × 22 Zoom
Image Processing Features
I/O Features
Other Features
- Support multiple steams. Single-stream model or dual-stream mode can be selected based on the site requirement. Encoding parameters for the main stream and sub stream be configured separately
- Support dynamic stream parameters based on different image quality requirement
- Support independent hardware compression and constant bit rate (CBR) and variable bit rate(VBR) Videos can be compressed using the Motion Joint Photographic Experts Group(MJPEG)or H.264 standards. The frame rate and image quality can be configured
I/O Features
- Support bidirectional intercom and unidirectional broadcast.
- Support RS-485 serial port control and transparent channel transmission.
- Provides a 10/100 Mbits/s self-adaptive Ethernet port.
Other Features
- Support the heartbeat function that allows the management host to learn the running status of the IP camera in real time.
- Support alarm input and output, motion detection alarm, and alarm linkage function.
- Supports level-based user rights management.
- Full HD IP Nightvision Bullet Camera with IR LED.
- Digital Clarity CMOS Imaging Technology
- 1/2.8" CMOS with Mechanical ICR
- Service BNC output
- SD memory slot
- Varifocal lens 3.3~12mm.
- 14pcs SuperFlux LED
- 3pcs high power LED for 100ft IR distance
- Water-resistant IP66
- 3Axis cable management bracket
- external zoom & focus adjustment
- DC12V / PoE
| Model | NIP-A2H22 | ||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||||
| Zoom | 22? Optical 1/4" CMOS Sensor |
| Angle of View | 55"-2.9" |
| Max Res./ Max Frame Rate | 1920 ? 1080 30/25 fps |
| Day Night | True Day / Night with ICR Filter |
| PTZ Speed | Pan 0.01?~360/s, tilt 0.01?~360/s |
| Preset | 255 User Positions |
| Pattern | 6 Tracks |
| Tour | 12 Guard Tours |
| IR LED | 12pcs Gigh Powered Super Flus LEDs 850nm |
| IR distance | 100 Meters (330 feet) with smart IR LED Function. Auto or user adjustment for IR power level for zoom level |
| Alarm In / Out | Two Alarm Inputs / One Alaram Output |
| Video Output | Service BNC Video Output (software PAL or NTSC) |
| Control Method | Onvif / RS485 (In/Out) |
| VIDEO | |
| Compression | H-264 High Profile (Support Baseline Profile) / MJPEG |
| Bit Rate(CBR/VBR) | Stram1 50kbps - 12Mbps; Stream2 10kbps - 6Mbps; Stream3 (MJPEG Fixed) |
| Quality Setting (VBR) | 1 - 9 (9 Highest) |
| Multi- Streaming | Three simultaneous streams, two with H-264, one with MJPEG Stream |
| Brightness / Sharpness | Variable 0~100 / 0~100 |
| Gain Control | Auto / Fixed 8~102db |
| Orientation | Horizontal Mirror / Vertical Flip |
| Text Overlay | Time / Date / Camera / Custom OSD |
| Masking | 3 User defined masking areas < 8% of total picture |
| NETWORK | |
| Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector, one network Coupler supplied |
| TCP/IP | IPv4 / IPv6 (DHCP / Fixed) |
| Compliance | Onvif v22 (Profile S) |
| RTSP Video | Standard RFC2326, Support QuickTime / VLC Player. User security authentication (Enabled / Disabled) |
| Web Language | English, Chinese, Russian, Polish |
| Recording Simultaneous. | Local Micro SD Memory, Remote FTP server, TCP/UDP CMS, RTSP connection (stream 1,2 or 3) |
| Network Protocols: | HTTP, TCP/IP, UDP/IP, RTSP, FTP, DHCP, NTP, PPoE, NTP. Unicast and Multicast supported. Video streaming from SDK & NVMS / NVR software or 3rd party applications. User Ports setting for Web port, RTSP Port, and SDK Control Port and Alarm Port. |
| AUDIO | |
| Input / Output | 1 ? RCA Input / 1 ? RCA Output @ 1v Line Level |
| Audio Compression | G711 A-Law, G711 U-Law, RAW_PCM |
| GENERAL | |

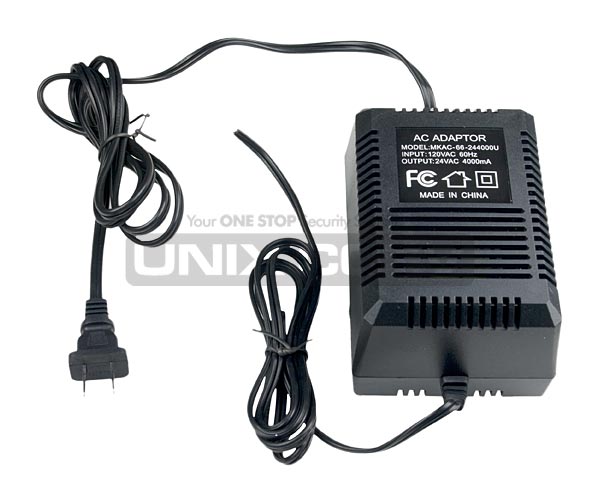

| Power | 24V AC (Local plug addaptor supplied) / 30W (Max) |
| Temperature | Operating: 14?F to 131?F (-5?C to 60?C) (Built in Header and FAN) |
| Operating Humidity | 10% - 85% RH |
| Approvals | CE / FCC / RoHS Compliant / IP66 / IK6 |
| Product Dimensions | See CAD diagrams for size Details |
