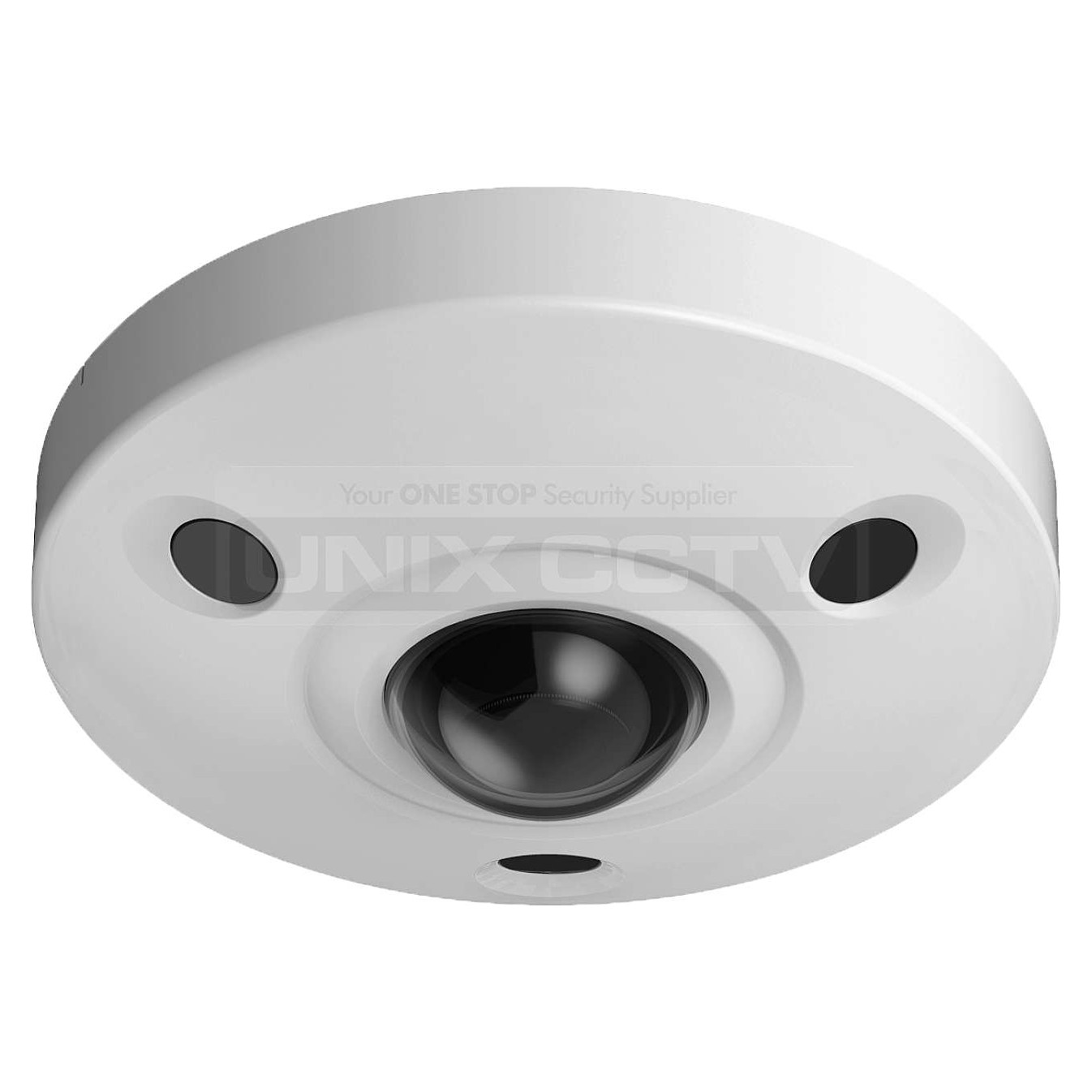

Eyemax NIF-E812-W 8MP(4K) 360° Panoramic IR Fish-eye Network Camera

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

free shipping

to USA & CANADA

orders $500 and up

Click For Details

Search Product

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

One year warranty on all products

Home

IP Cameras and Network Video Recorders NVRs

Eyemax IP Cameras and NVR's

Eyemax NIF-E812-W 8MP(4K) 360° Panoramic IR Fish-eye Network Camera

Smart H.265+ / H.264+ Dual CODEC • 8 MP (3280 x 2480) at 30 fps • Triple Stream • Immervision Panomorph Lens RPL: B9VVT • Built-in Microphone and Speaker • Max. IR Distance 33ft (10m) • IP67 & IK10 • 12VDC or PoE

Mount Accessories

Wall Mount Bracket	CWB E302S
PTZ Ceiling Mount	PTMC E300C

System
Image Sensor	1/1.7-in. 8 MP CMOS
Total Sensor Pixels	3280(H) × 2480(V)
RAM/ROM	4 GB / 2 GB
Scanning System	Progressive
Electronic Shutter Speed	Auto, Manual, 1/3 s to 1/100,000 s
Minimum Illumination	Color: 0.01 lux at F2.0 (30 IRE) B/W: 0.001 lux at F2.0 (30 IRE) 0 lux at F2.0 with IR on
S/N Ratio	More than 56 dB
IR Distance	Up to 10.0 m (32.81 ft)
IR On/Off Control	Auto, Manual
IR LEDs	Three (3)
Lens
Lens Type	Immervision Panomoprh Lens – RPL: B9VVT Fixed
Mount Type	M12
Focal Length	1.29 mm
Maximum Aperture	F2.0
Angle of View	Horizontal: 360°
Focus Control	Fixed
Close Focus Distance	0.20 m (0.66 ft)
DORI Distance	Detect (8 ppf): 27.90 m (91.54 ft) Observe (19 ppf): 11.20 m (36.75 ft) Recognize (38 ppf): 5.60 m (18.37 ft) Identify (76 ppf): 2.80 m (9.19 ft)
Video
Compression	Smart H.265+, H.265, Smart H.264+, H.264, H.264H, MJPEG (substream only)
Streaming Capability	Three (3) Streams
Resolution	8 MP (3280 × 2480), 2880 × 2160, 3 MP (2048 × 1536), 1.3 MP (1280 × 960), D1 (704 × 576), CIF (352 × 288)
Effective Maximum Resolution, based on Dewarping Mode	Dewarp Mode: 1 Original, Mount Location: All locations, Resolution: 3280(H) × 2480(V) Dewarp Mode: 1 Panoramic, Mount Location: Ceiling/Ground, Resolution: 4096(H) × 1024(V) Dewarp Mode: 2 Panoramic, Mount Location: All Locations, Resolution: 2432(H) × 2432(V) Dewarp Mode: 1 Region, Mount Location: All Locations, Resolution: 1216(H) × 1216(V) Dewarp Mode: 2 Regions, Mount Location: All Locations, Resolution: 2432(H) × 2432(V) Dewarp Mode: 4 Regions, Mount Location: All Locations, Resolution: 2432(H) × 2432(V) Dewarp Mode: 1 Original + 3 Regions, Mount Location: All Locations, Resolution: 2432(H) × 2432(V)
Frame Rate	Main Stream: 8 MP at 30 fps Stream 1: D1 at 30 fps Stream 2: 1.3 MP at 30 fps
Bit Rate Control	CBR, VBR
Bit Rate	H.265: 3 Kbps to 13891 Kbps H.264: 8 Kbps to 16384 Kbps
Day/Night	Auto (ICR), Color, B/W
BLC Mode	BLC, HLC, DWDR
White Balance	Auto, Natural, Street Lamp, Outdoor, Manual
Gain Control	Auto, Gain Priority, Shutter Priority, Manual
Noise Reduction	3D DNR
Motion Detection	Off, On (4 Zone, Rectangle)
Region of Interest	Off, On (4 Zone)
Advanced Features	Defog
Privacy Masking	Off, On (4 Area, Rectangle)
Audio
Compression	PCM, G.711a, G.711Mu, G.726, G.723
Network
Ethernet	RJ-45 (100/1000 Base-T)
Protocol	HTTP, HTTPs, TCP, ARP, RTSP, RTP, UDP, SMTP, FTP, DHCP, DNS, DDNS, PPPOE, IPv4/v6, QoS, UPnP, NTP, Bonjour, 802.1x, Multicast, ICMP, IGMP, SNMP
Interoperability	ONVIF (Profile S/Profile G/Profile T); CGI; Milestone; Genetec; P2P
Streaming Method	Mulitcast
Maximum User Access	20 Users
Edge Storage	Network Attached Storage (NAS) FTP, SFTP Micro SD Card, maximum 256 GB
Web Viewer	IE, Firefox, Safari
Management Software	DSS, DMSS
Mobile Operating System	iOS, Android
Cybersecurity	Video Encryption, Firmware Encryption, Configuration Encryption, Digest, WSSE, Account Lockout, Security Logs, IP/MAC Filtering, Generating and Importing, X.509 Certification, Syslog, HTTPS, 802.1x, Trusted Boot, Trusted Execution, Trusted Upgrade
Certifications
Safety	UL62368 ~ 1, CAN/CSA C22.2 No. 62368 ~ 1-14 EN62368 ~ 1
Electromagnetic Compatibility (EMC)	47 CFR FCC Part 15, Subpart B Electromagnetic Compatibility Directive 2014/30/EU Radio Equipment Directive 2014/53/EU
Interface
Audio	Input: One (1) Channel, RCA + Built-in Microphone Output: One (1) Channel, RCA + Built-in Speaker
Alarm	Input: Two (2) Channels (5 VDC, 5 mA) Output: Two (2) Channels (30 VDC, 1 A; 50 VAC, 0.5 A)
Electrical
Power Supply	12 VDC or PoE+ (IEEE802.3at, Class 4)
Power Consumption	Basic: 12 VDC: 6.5 W, PoE: 6.1 Maximum: 12 VDC: 13 W PoE: 13.9 W
Environmental
Operating Conditions	−40°C to +55°C (−40°F to +131°F) Less than 95% RH
Storage Conditions	−30°C to +70°C (−22°F to +158°F)
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal
Dimensions	ø149.80 mm × 59.80 mm (ø5.90 in. × 2.35 in.)
Net Weight	0.79 kg (1.74 lb)
Gross Weight	1.21 k g (2.67 lb)
Recommended Installation Height
Indoor	Ceiling: 3.0 m to 4.0 m (9.84 ft to 13.12 ft) Wall: 2.0 m to 3.0 m (6.56 ft to 9.84 ft)
Outdoor	Ceiling: 6.0 m to 8.0 m (19.69 ft to 26.25 ft) Wall: Depends on height of pole
Analytics+ Functions
People Counting and Heat Map can be used concurrently, but the other IVS functions cannot be used together with People Counting or Heat Map.
Perimeter Protection	Detects human violations using the following methods: Tripwire: a target crosses a defined line. Intrusion: a target enters or exits a defined perimeter. Monitors a combination of detection methods.
People Counting	Delivers accurate flow statistics from the following methods: Line Crossing: counts a person as they cross a threshold in a defined direction. Region: counts the number of people in a defined area. Counts people simultaneously from four (4) threshold lines and four (4) defined regions.
Intelligent Video System Functions
IVS triggers an alarm and takes a defined action for the following events:
Standard Features	Tampering with the camera. Error writing to an onboard Micro SD card. Error sending or receiving data over the network. Unauthorized access to the camera. IP Address Conflict
Advanced Feature	Heat Map: Generates a visual representation of data.
