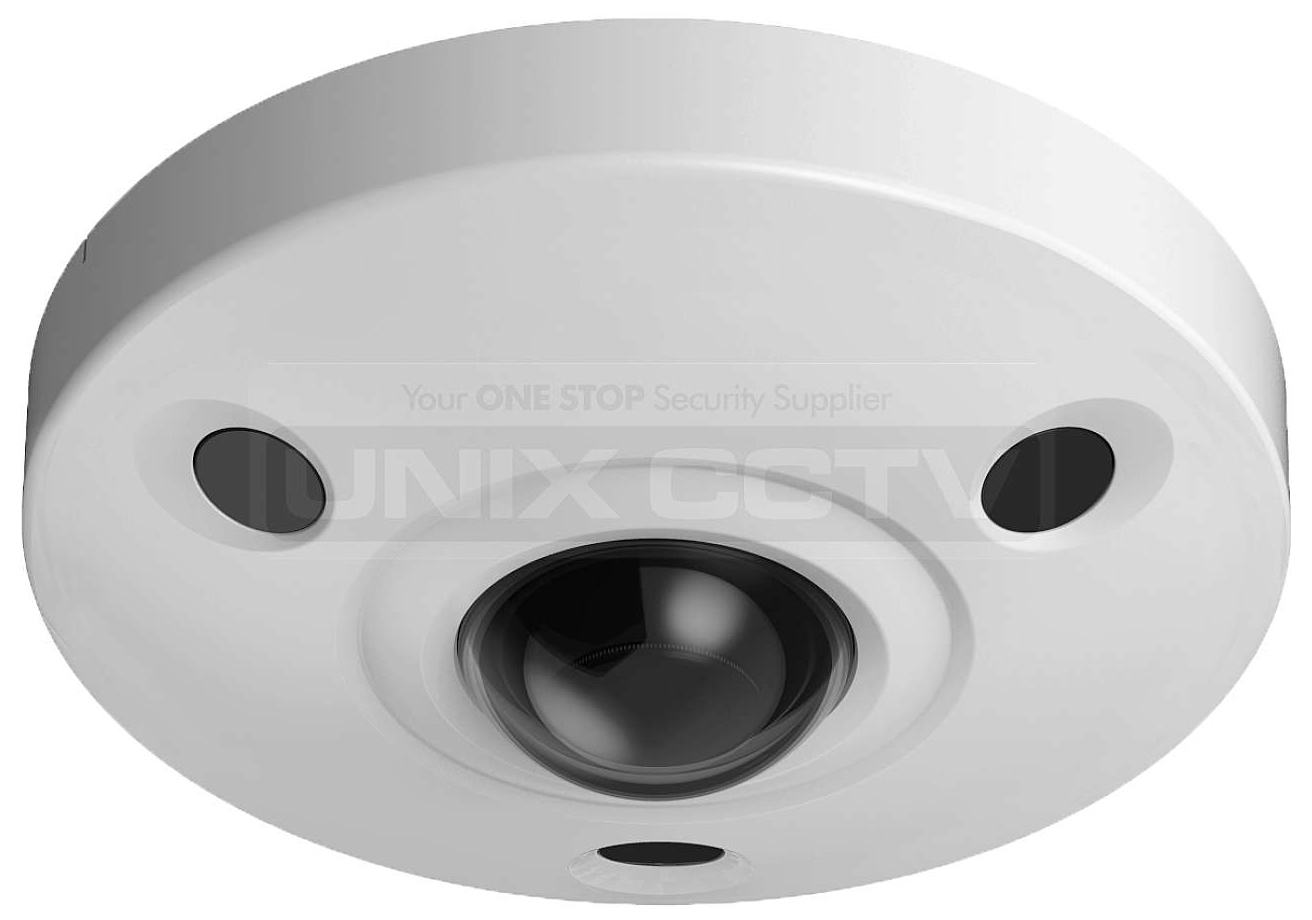

Eyemax NIF-E602S-WSL 6MP HD Vandal?proof Network IR Fisheye Camera

Model	NIF-E602S-WSL
Camera
Image Sensor	1/1.8-in. Exmor R CMOS
Effective Pixels	3072(H) x 2048(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual 1/3(4) s to 1/100000 s
Minimum Illumination	Color: 0.01 lux @ F2.8; B/W: 0 lux (IR on)
S/N Ratio	More than 50 dB
IR Distance	10 m (33 ft)
IR On/Off Control	Auto / Manual
Lens
Lens Type	Fixed Lens
Mount Type	Board-in
Focal Length	1.3 mm
Max Aperture	F2.8
Angle of View	180�/360�
Focus Control	Manual
Intelligent Functions
Auto Tracking	Single-scene, multiple-scene, panorama-scene
IVS	Tripwire, Intrusion, Cross Warning Zone, Perimeter Protection, Loitering Detection, Abandoned Object Detection, Missing Object Detection, Illegal Parking, Fast Moving
Advanced Intelligent Functions	Face Detection
Tracking Trigger Mode	Manual / Auto (alarm triggered)
Tracking Trigger Event	Targeting, Zoom, Tracking, Recording, Snapshot, Alarm
Video
Compression	H.264H/H.264B/H.264/MJPEG
Streaming Capability	3 Streams
Resolution	6MP (3072 � 2048) 4 MP (2048 � 2048) 3 MP (2048 � 1536) UVGA (1600 � 1200) 1.3 MP (1280 x 960) D1 (704 � 576/704 x 480) CIF (352 � 288/342 x 240)
Frame Rate	Main Stream: 6 MP (1 to 25/30 fps) Sub Stream 1: D1/CIF (1 to 25/30 fps) Sub Stream 2: 1.3 MP/D1 (1 to 25/30 fps)
Bit Rate Control	CBR / VBR
Bit Rate	8 to 12288 Kbps
De-warp Modes	Original, Panoramic, Double panoramic, 1+3, E-PTZ 4 pictures
Day/Night	Auto (ICR) / Color / B/W
BLC Mode	BLC / HLC / DWDR
White Balance	Auto, Manual
Gain Control	Auto / Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
Audio
Compression	G.711a, G.711Mu, G.726, AAC
Interface	1/1 channel In/Out, built-in mic
Network
Ethernet	RJ-45 (10/1000 Base-T)
Protocol	IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x, ARP
Interoperability	ONVIF PSIA CGI
Max. User Access	20
Web Viewer	IE10
Smart Phone	Android, IOS
Certifications
Certifications	FCC (SEFV1505157-A ) UL (E234884-A125-UL)
Interface
Memory Slot	Micro SD, up to 64GB
Alarm	2/1 In/Out
Electrical
Power Supply	DC12V, PoE (802.3af)
Power Consumption	Max. 13 W
Environmental
Operating Conditions	-30�C to +60�C (-22�F to +140�F), Less than 90% RH
Storage Conditions	-30�C to +60�C (-22�F to +140�F), Less than 90% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Dimensions	F150 mm x 50.7 mm (F 5.91 in. x 1.99 in.)
Net Weight	0.58 kg (1.28 lbs)
Gross Weight	0.86 kg (1.90 lbs)
