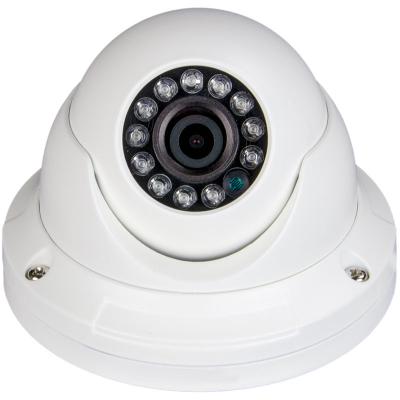

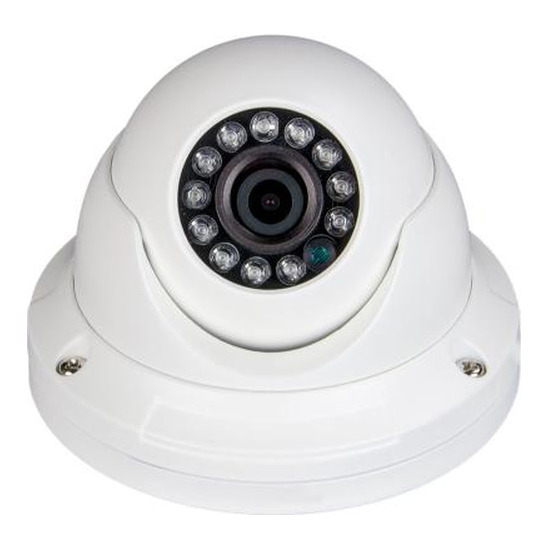

Truon NIB-B1322F Truon 960p IP Camera / Eyeball IR Dome Type / 12 IR / ICR / 3.6mm Lens
Truon NIB-B1322F Truon 960p IP Camera / Eyeball IR Dome Type / 12 IR / ICR / 3.6mm Lens
Truon NIB-B1322F Truon 960p IP Camera / Eyeball IR Dome Type / 12 IR / ICR / 3.6mm Lens

Truon NIB-B1322F Truon 960p IP Camera / Eyeball IR Dome Type / 12 IR / ICR / 3.6mm Lens
- 1/3" line scanning digital and advanced DSP technology
- Picture Resolution 960P color CMOS, 1.3 Mega Pixel, 1280×960
- Optimized H.264 Main Profile compression algorithm, high compression ratio and high quality image; convenient to realize a transmission of HD images on a narrow band, thus it can save the storage space; support triple bit streams
- The most advanced network delivery server technology, Easily achieve more user access, Multi-stage user password rights management
- Built in Web Server, through the IE browser easy to realize the remote control Settings prison see operation
- Support facilities remote security upgrade function
- Support DDNS, PPPoE and UPnP, Support LAN, WAN transport.
- Technology of self adaptability to network that it may adjust its video flame rate automatically according to the bandwidth of network
- Functions of alarm in video missing, mobile detection or probe, etc. (available to set the regions and sensitivity)
- Support mobile detection / image shielding / image snapshot
- Functions of auto recovery in abnormality and auto reconnection in network breakdown
| Model | NIB-B1322F |
| Camera | |
| Pixel | 1.3 Mega Pixel / 1280"960 |
| Lens | 3.6mm |
| Electronic shutter | 1/25s-1/30,000s |
| Low Lux | Color : 0.1Lux@F1.6 B/W:0.01Lux@F1.6 |
| Auto iris | N/A |
| ICR | Support |
| Video parameter | Saturation, brightness, contrast ratio and color tone can be adjusted by customer end or IE explorer |
| IR | |
| IR Properties | Dual filter day / night: automatic switch, linkage switch |
| IR Light | 12pcs 5? IR LEDS |
| Audio-video coding parameters | |
| Compression | H.264 Main Profile@Level 3.0 / MJPEG optional |
| Video bit rate | 0.1M-6Mbps, customized |
| Bit stream type | video stream |
| Audio compress | N/A |
| Audio bit rate | N/A |
| Triple bit streams | Support |
| Image | |
| Video resolution | 1280?960 |
| Video flame rate | PAL: 1-25 frames/second, NTSC: 1-30 frames/second |
| Function | |
| PTZ | N/A |
| Heartbeat mechanism | Support |
| IP auto pop-out | IP auto pop-out at customer end |
| Password protection | Multi-level protection on password |
| Intellectual alarm | Mobile detection, video shielding, video loss, network breakdown, abnormality in storage |
| Basic functions | One-key reset, password protection, watermark technology |
| Interface | |
| Audio input | N/A |
| Video output | N/A |
| Network port | 1 pcs, RJ45 10M/100Mbps self-adaptable Ethernet port |
| Serial port | N/A |
| Alarm input | N/A |
| Alarm output | N/A |
| Wireless Network | |
| WIFI | N/A |
| Wireless encryption protocol | N/A |
| Cell phone monitor | Support |
| 3G network | N/A |
| Others | |
| POE | 802.3af |
| Power supply | DC12V/1.5A |
| Power consumption | <6W |
| Working temp | -10?C ~ +55?C / 14?F ~ 131?F |
| Working humidity | 10 ~ 85% |
| Dimension | ? 106mm?65.8mm |
