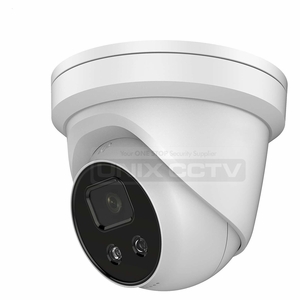

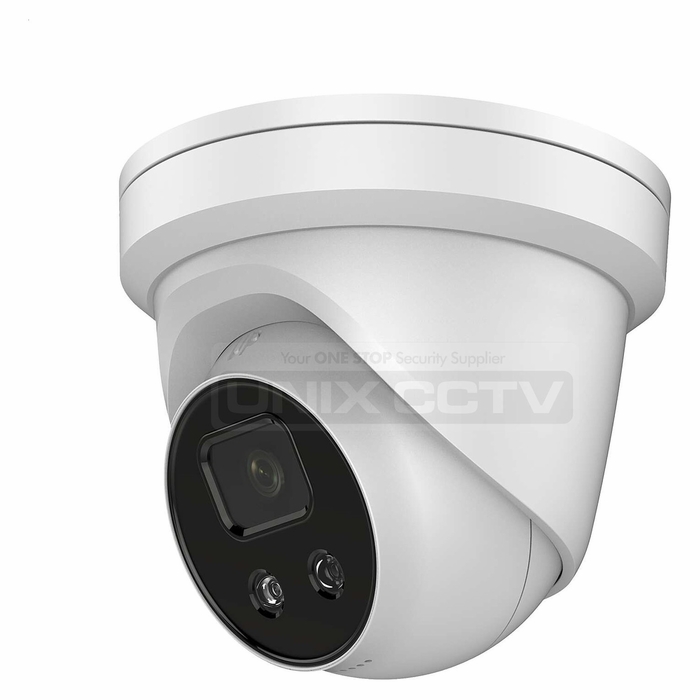

Magic NCU-G4032 G4032 | Full Time Night Color 4MP Outdoor Network Turret Camera, IP66, Metal Body, Fixed Lens, 100ft (30m) White LED Range, 120dB True WDR, DC 12V, Small Size

Max. 2688 × 1520 @30fps • 2.8 / 4.0mm fixed lens • H.265+, H.264+ • 120dB WDR • 0.0014 @ (F1.0, AGC ON), 0 Lux with Light • Built-in micro SD/SDHC/SDXC slot, up to 128G • 24/7 full time color

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
Min. Illumination	0.0014 @ (F1.0, AGC ON), 0 Lux with Light
Shutter Speed	1/3 s to 1/100,000 s
Slow Shutter	Yes
DNR	3D DNR
Wide Dynamic Range	120 dB
Angle Adjustment	Pan: 0° to 360°, tilt: 0° to 75°, rotate: 0° to 360°
Lens
Focal length	2.8 / 4mm
Aperture	F1.0
Focus	Fixed
FOV	2.8 mm, horizontal FOV: 109°, vertical FOV: 55°, diagonal FOV: 138° 4 mm, horizontal FOV: 94°, vertical FOV: 48°, diagonal FOV: 115°
Lens Mount	M16
Illuminator
White Light Range	Warm white LEDs (3000K), up to 30m
Compression Standard
Video Compression	Main stream: H.265+ / H.265 / H.264+ / H.264 Sub-stream: H.265 /H.264 / MJPEG Third stream: H.265 / H.264
H.264 Type	Main Profile / High Profile
H.265 Type	Main Profile
Video Bit Rate	32 Kbps to 16 Mbps
Smart Feature-set
Behavior Analysis	Line crossing detection, intrusion detection, object removal detection, unattended baggage detection
Exception Detection	Scene change detection
Face Detection	Yes
Max. Resolution	2688 × 1520
Main Stream	50Hz: 25fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720) 60Hz: 30fps (2688 × 1520, 2560 × 1440, 2304 × 1296, 1920 × 1080, 1280 × 720)
Sub-Stream	50Hz: 25fps (640 × 480, 640 × 360, 320 × 240) 60Hz: 30fps (640 × 480, 640 × 360, 320 × 240)
Third stream	50Hz: 25fps (1280 × 720, 640 × 360, 352 × 288) 60Hz: 30fp s(1280 × 720, 640 × 360, 352 × 240)
Image Enhancement	BLC/3D DNR/HLC
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, white balance adjustable by client software or web browser
Day/Night Switch	Day/Night
ROI (Region of Interest)	Support 1 fixed region for main stream and sub-stream separately
Network
Network Storage	Support micro SD/SDHC/SDXC card (128G) local storage, NAS (NFS, SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering detection, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protocols	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, three streams, heartbeat, mirror, password protection, privacy mask, watermark, IP address filter
Firmware Version	V5.5.82
API	ONVIF (PROFILE S, PROFILE G), ISAPI
Simultaneous Live View	Up to 6 channels
User/Host	Up to 32 users 3 levels: Administrator, Operator and User
Client	iVMS-4200, Hik-Connect, iVMS-4500, iVMS-5200
Web Browser	Plug-in required live view: IE8+, Chrome 41.0 ~ 44, Firefox 30.0 ~ 51, Safari 8.0 ~ 11 Plug-in free live view: Chrome 45.0+, Firefox 52.0+
Interface
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
On-board Storage	Built-in micro SD/SDHC/SDXC slot, up to 128 GB
Reset Button	Yes
General
Operating Conditions	−30°C to +60°C (−22°F to +140°F), humidity 95% or less (non-condensing)
Power Supply	12 VDC ± 25%, ∅ 5.5 mm coaxial power plug PoE (802.3af, class 3)
Power Consumption	12 VDC, 0.5 A, max. 6 W PoE: (802.3af, 36 V to 57 V), 0.3 A to 0.1 A, max. 7.5 W
Protection Level	IP66
Material	Camera: Metal, trim ring: Plastic
Dimension	Camera: ∅ 138.3 × 125.2 mm (∅ 5.4" × 4.9") With package: 170 × 170 × 150 mm (7" × 7" × 5.9")
Weight	Camera: 575 g (1.3 lb.) With package: 833 g (1.8 lb.)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

Magic NCU-G4032 G4032 | Full Time Night Color 4MP Outdoor Network Turret Camera, IP66, Metal Body, Fixed Lens, 100ft (30m) White LED Range, 120dB True WDR, DC 12V, Small Size

SKU#

:

NCU-G4032

Regular Price

:

$249.95

Sale Price

:

$193.95

You Save

$56.00(22.40% )

Availability

:

Usually ships the next business day
