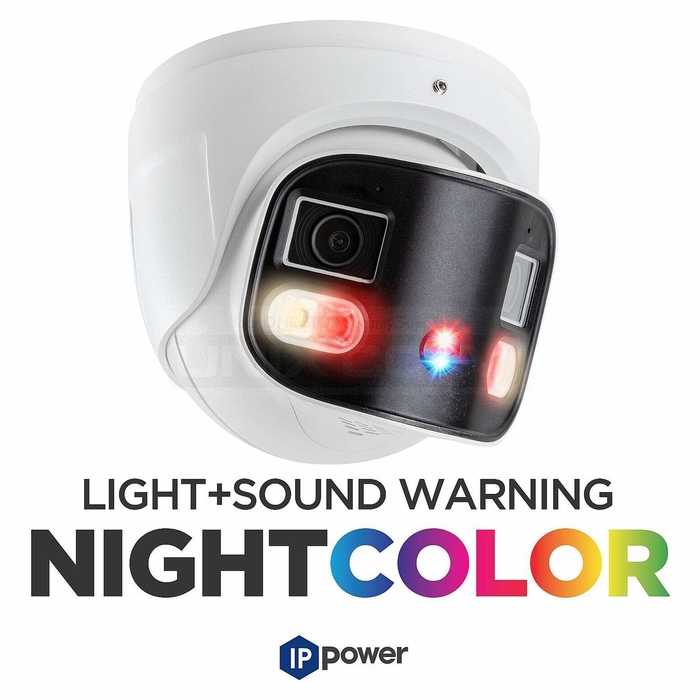

IP POWER NCU-CP4200A-YSW28 8MP Dual-Lens Splicing Night Color Network Turret Camera, NDAA

1/2.7″ CMOS × 2 • 0.0032 lux@F1.6 • 2.8mm Lens • Face Detection / Capture • Human / Vehicle Detection • DWDR • Built-in Mic • Built-in Speaker • SD Card Slot / up to 256GB • Red and Blue Light Warning • Sound Warning • IR Range up to 98ft (30m) • White Light Range up to 66ft (20m) • 12VDC / PoE(af) • IP66

Camera
Image Sensor	1 / 2.7 " Progressive Scan CMOS × 2
Max. Resolution	4640 × 1760
Electronic Shutter	1/3 s ~ 1 / 100000 s
Iris Type	Fixed Iris
Min. Illumination	0.0032 lux@F1.6, AGC ON; 0 lux with LED ON
Lens	2.8mm @F1.6
Field of View	Horizontal: 180° Vertical:66°
Lens Mount	M12
Day & Night	Auto
Wide Dynamic Range	Digital WDR
BLC	Yes
HLC	Yes
Defog	Yes
S/N Ratio	≥50dB
Digital NR	3D DNR
Angle Adjustment	Pan: 0° ~ 360°; Tilt:0° ~ 75°; Rotation: 0° ~ 360°
Video Compression	Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression Standard	Baseline Profile / Main Profile / High Profile
Resolution	8MP (4640 × 1760), 6MP(3632 × 1632), 4MP(3200 × 1200), 2MP (2304 × 864), 2048 × 768, 1600 × 608, 1200 × 448, 960 × 368, 640 × 240
Main Stream	8MP / 6MP / 4MP / 2MP(60Hz : 1 ~ 30fps; 50Hz : 1 ~ 25fps)
Sub Stream	2048 × 768 / 1600 × 608 / 1200 × 448(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps )
Third Stream	1200 × 448 / 960 × 368 / 640 × 240(60Hz:1 ~ 30fps; 50Hz: 1 ~ 25fps )
Bit Rate	64 Kbps ~10Mbps
Bit Rate Type	VBR / CBR
Audio Compression	G711A / U
Image Settings	ROI, Saturation, Brightness, Hue, Contrast, Wide Dynamic, Sharpness, NR, etc. adjustable through client software or web browser
ROI	Each ROI to be configured separately
Interfaces
Network	RJ 45 10M / 100M self-adaptive Ethernet port
Video Output	No
Audio	1CH audio input; 1CH audio output; 1CH built-in speaker; 2CH built-in MICs
Storage	Built-in micro SD card slot; up to 256GB
Reset	Yes
Alarm	1CH alarm input; 1CH alarm output
Intelligent Analytics
Smart Event	Line crossing, region intrusion / entrance / exiting (human/vehicle classification), loitering detection, illegal parking detection, abandoned / missing object detection
Statistics	Target counting by line / area, heat map
Exception Detection	Scene change, video blur and abnormal color detection, audio exception
Face Detection	Face detection and face capture
Video Metadata	Simultaneously captures human body, motor vehicle and non-motor vehicle and extracts 13 human features, 4 motor vehicle features and 1 non-motor vehicle feature
DORI Distance
Detect	60m(196ft)
Observe	24m(79ft)
Recognize	12m(39ft)
Identify	6m(20ft)
Functions
Remote Monitoring	Web Browser / TVT NVMS2.0 / NVR / mobile APP
Web Browser	Chrome 89.0+ / Edge 89.0+ / Firefox 87.0+ / Safari 14.0+
Online Connection	Support simultaneous monitoring for up to 10 users; Support multi-stream real time transmission
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTMP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, HTTP POST, 802.1x, UPnP, HTTPS, P2P, QoS
Interface Protocol	ONVIF
Storage	Network remote storage; micro SD card storage
Smart Alarm	Motion detection, SMD, SD card error, SD card full, IP address conflict, Network disconnection, sensor alarm, audio alarm, light alarm
General Function	Watermark, video mask, heartbeat, smart supplement light, ANR, cloud upgrade
Security	Video encryption, firmware encryption, HTTPS encryption, configuration encryption, illegal login lock, IP address filtering, 802.1x authentication, basic and token authentication for HTTP / RTSP
PoE	Yes , IEEE802.3af
Supplement Light Range	IR Range: up to 30m White light range: up to 20m
Ingress Protection	IP66
Others
Power Supply	DC12V / PoE
Power Consumption	PoE: max. 10.2W; DC12V: max. 9W
Storage Conditions	−30 °C ~ 65°C (−22°F ~ 149°F), Humidity: less than 95 % (non-condensing)
Operating Conditions	−30 °C ~ 60 °C (−22°F ~ 140°F), Humidity: less than 95 % (non-condensing)
Dimensions ( mm )	Ø 111.5 × 102.2
Weight ( net )	Approx.0.719KG
Installation	Ceiling mounting; Wall mounting
Certificate	CE, FCC
Environmental Protection	Directive EU RoHS, WEEE(2012/19/EU) , directive 94 / 62 / EC and REACH(EC1907/2006)
