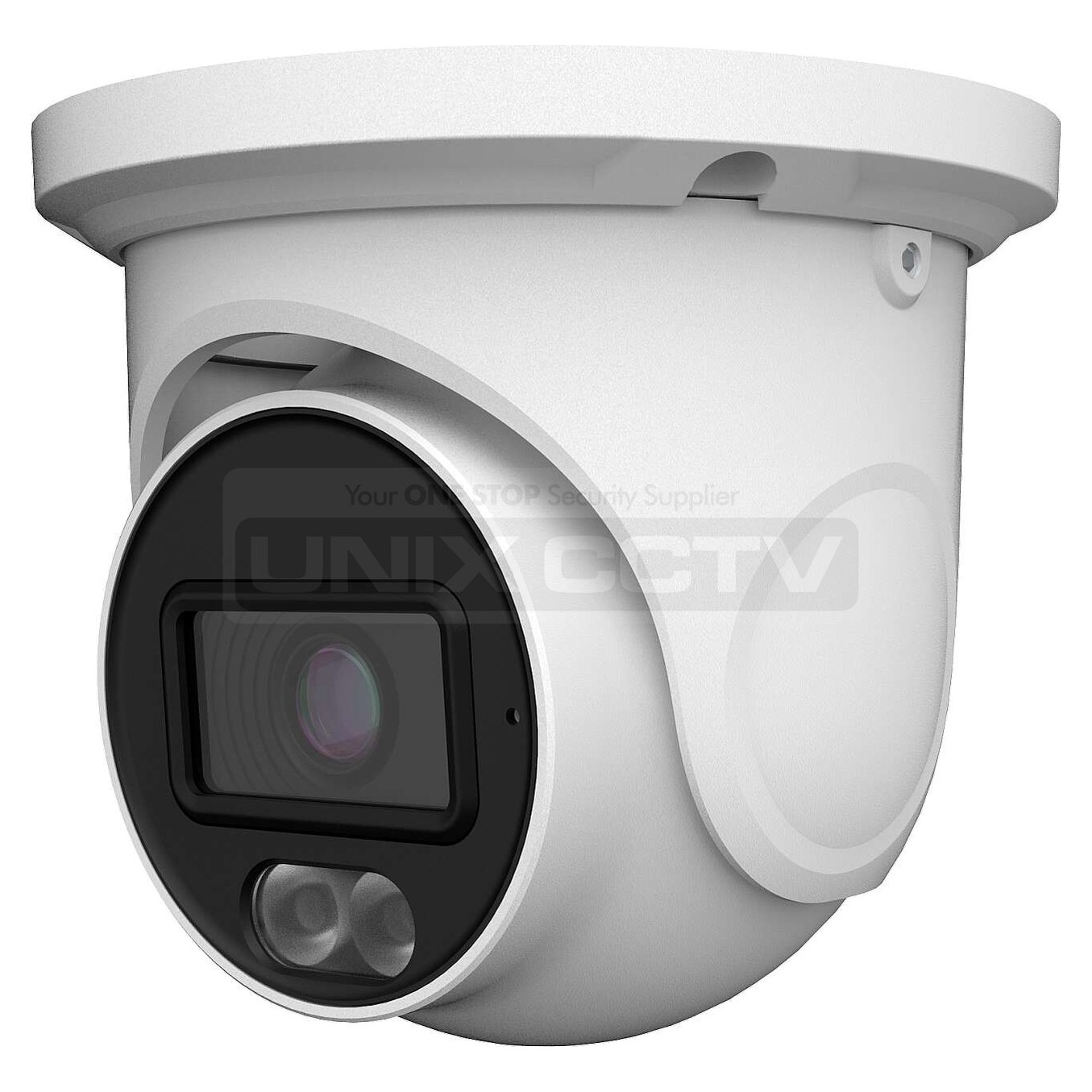

IP POWER NCU-C5032-AW28 5MP Full Color Night View Turret Network Camera, Fixed Lens

H.265 / H.264 • WDR • 100ft (30m) White Light Range • 2.8mm Fixed Lens • Triple Stream • Built-in Mic • 12VDC / PoE • Intelligent analytics (Perimeter Protection / Statistics / Exception Detection / Face Detection)

Wall Mount Bracket

CM WM04-C

Camera
Image Sensor	1 / 2.7" CMOS
Image Size	2592 × 1944
Electronic Shutter	1 / 2s ~ 1 / 100000s
Iris Type	Fixed Iris
Min. Illumination	0.006 Lux@ F1.0, AGC ON; 0 Lux with LED ON, AGC ON
S/N Ratio	≥50dB
Lens	2.8 mm@F1.0 horizontal FoV: 97° vertical FoV: 72° diagonal FoV:128°
Focus	Fixed
Lens Mount	M12
Day & Night	ICR
Wide Dynamic Range	120dB
BLC	Yes
HLC	Yes
Defog	Yes
Digital NR	3D DNR
Angle Adjustment	Pan: 0° ~ 360° Tilt:0° ~ 75° Rotation: 0° ~ 360°
Video Compression	Main stream: H.265+ / H.265 / H.264+ / H.264 Sub stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG Third stream: H.265+ / H.265 / H.264+ / H.264 / MJPEG
H.264 Compression Standard	Baseline Profile / Main Profile / High Profile
Resolution	5MP (2592 × 1944 ) 4MP (2592 × 1520) 2K (2560 × 1440) 3MP(2304 × 1296 ) 1080P (1920 × 1080) 720P (1280 × 720 ) D1, CIF, 480 × 240
Main Stream	5MP / 4MP / 2K / 3MP / 1080P / 720P( 60Hz : 1 ~ 30fps; 50Hz: 1 ~ 25fps )
Sub Stream	720P / D1 / CIF / 480 × 240 ( 60Hz : 1 ~ 30fps; 50Hz: 1 ~ 25fps )
Third Stream	D1 / CIF / 480 × 240 ( 60Hz : 1 ~ 30fps; 50Hz: 1 ~ 25fps )
Bit Rate	64 Kbps ~ 8 Mbps
Bit Rate Type	VBR / CBR
Audio Compression	G711A / U
Image Settings	ROI, Saturation, Brightness, Hue, Contrast,Wide Dynamic, Sharpness, Image Flip, Image Mirror, NR, etc. adjustable through client software or web browser
ROI	Each ROI to be configured separately
Interfaces
Network	RJ45
Video Output	No
Audio	1CH audio input 1 CH built-in MIC
Storage	Built-in micro SD card slot; up to 256GB
Reset	Yes
Alarm	No
Intelligent Analytics (Smart Events)
Perimeter Protection	Line crossing, region entrance/exiting/intrusion (human/motor vehicle/non-motor vehicle classification)
Statistics	Target counting by line/area, heat map
Exception Detection	Scene change, video blur and video cast detection
Face Detection	Face detection and face capture
Other Events	Abandoned/missing object detection, crowd density detection
DORI Distance
Lens 2.8mm	Detect: 175.55ft(53.51m) Observe: 70.20ft(21.40m) Recognize: 35.10ft(10.70m) Identify: 17.55ft(5.35m)
Functions
Remote Monitoring	Web Browser / TVT NVMS2.0 / NVR / mobile APP
Web Browser	IE(plug-in required) / Google Chrome / Edge / Firefox / Safari
Online Connection	Support simultaneous monitoring for up to 10 users Support multi-stream real time transmission
Network Protocol	UDP, IPv4, IPv6, DHCP, NTP, RTSP, RTP, RTCP, PPPoE, DDNS, SMTP, FTP, SNMP, HTTP, 802.1x, UPnP, HTTPs, HTTP POST, RTMP, QoS>
Interface Protocol	ONVIF
Storage	Network remote storage; micro SD card storage
Smart Alarm	Motion detection, SD card error, SD card full
General Function	Watermark, IP address filtering, video mask, heartbeat, illegal login lock, corridor pattern
PoE	Yes, IEEE802.3af
White Light Range	65.62 ~ 98.43ft (20 ~ 30m)
Ingress Protection	IP67
Others
Power Supply	DC12V / PoE
Power Consumption	< 7W
Storage Conditions	−30°C ~ 65°C (−22°F ~ 149°F), Humidity: less than 95 % (non-condensing)
Operating Conditions	−30°C ~ 60°C (−22°F ~ 140°F), Humidity: less than 95 % (non-condensing)
Dimensions ( mm )	⌀94.6 × 82.8
Weight ( net )	Approx. 0.46KG
Installation	Ceiling mounting; Wall mounting
Certificate	CE, FCC
Environmental Protection	Complies with Directive EU RoHS, WEEE(2012/19/EU) , directive 94/62/EC and REACH(EC1907/2006)
