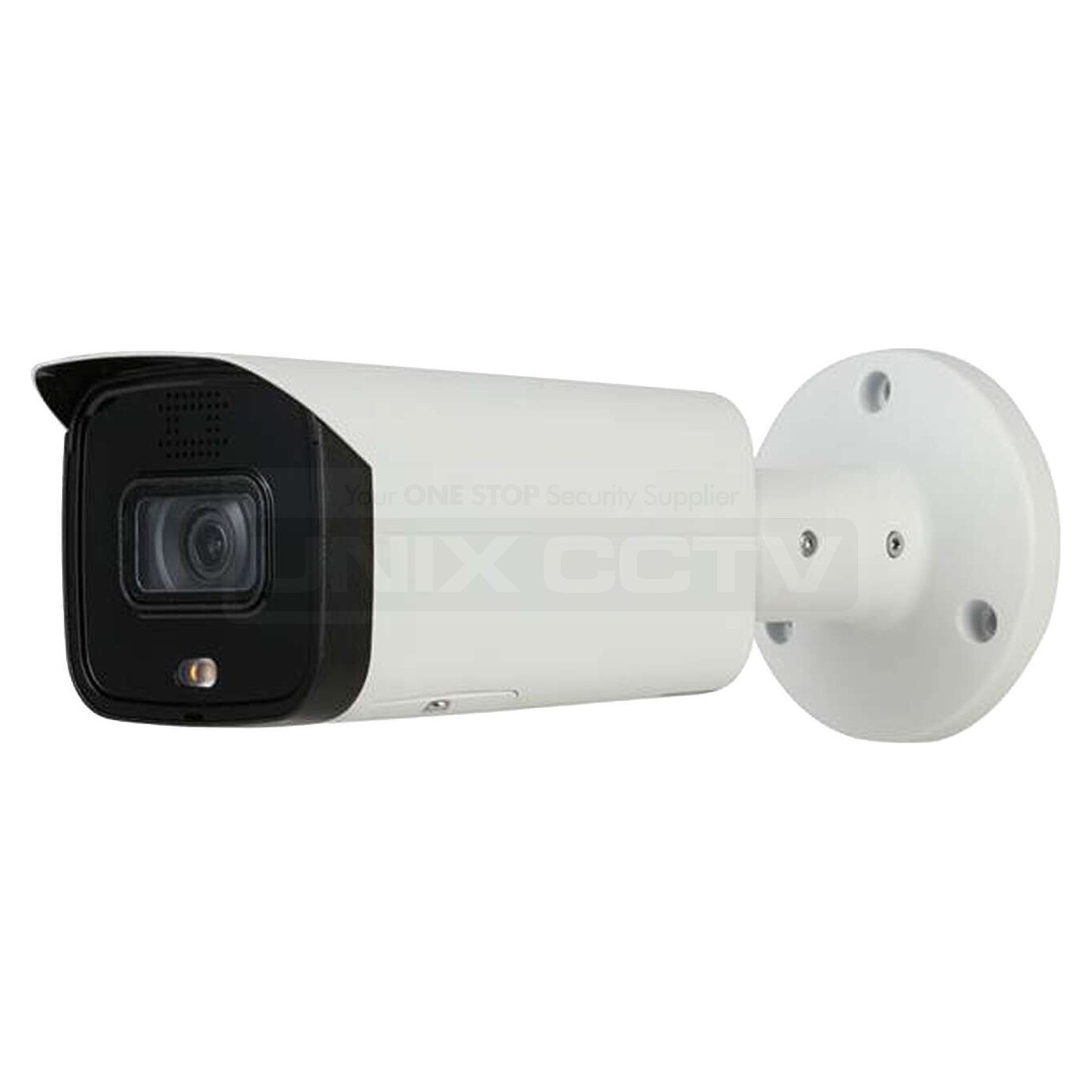

Eyemax NCR-E5622-W28 E5622 | 5MP Night Color Outdoor Bullet Camera, Fixed Lens, Active Deterrence, 200ft IR Range, AI Series, True WDR (120dB)

1/2.7″ 5 Mega-pixel progressive scan CMOS • H.265 & H.264 triple-stream encoding • 2592 × 1944 @ 20fps, 1080P @ 50/60fps (1920 1080) • WDR (120 dB), Day/Night (ICR), 3D DNR, AWB, AGC, BLC • Multiple network monitoring: Web viewer, CMS (DSS/PSS) & DMSS • 2.8 mm fixed lens • 1/1 Alarm in/out, 1/1 audio in/out (Built-in Speaker) • Max. IR LEDs Length 196.85ft (60m) • Micro SD memory, IP67

Mount Accessories

Junction Box	CJB-E135
Pole Mount	CPM-E150

Camera
Image Sensor	1/2.7" 5 Mega-pixel progressive scan CMOS
Effective Pixels	2592 (H) × 1944 (V)
RAM/ROM	512 MB/128 MB
Scanning System	Progressive
Electronic Shutter Speed	Auto / Manual, 1/3 s–1/100,000 s
Minimum Illumination	0.005 Lux @ F1.6
IR Distance	Distance up to 60 m (197 ft)
IR On/Off Control	Auto/Manual
IR LEDs	2 IRs, 1 LED
Lens
Lens Type	Fixed-focal
Mount Type	Board-in
Focal Length	2.8 mm
Max. Aperture	F1.6
Angle of View	H: 102°, V: 71°
Aperture Type	Fixed
Close Focus Distance	0.9 m (2.95 ft)
DORI Distance	2.8 mm (Detect: 56 m (184 ft) / Observe: 22 m (72 ft) / Recognize: 11 m (36 ft) / Identify: 6 m (20 ft))
Pan / Tilt / Rotation
Pan/Tilt/Rotation Range	Pan: 0˚–360˚; Tilt: 0˚–90˚; Rotation: 0˚–360˚
Artificial Intelligence
Perimeter Protection	Tripwire, intrusion (Recognition of vehicle and people), fast moving, loitering detection, parking detection and people gathering
People Counting	Support Line crossing / Region / Queuing people counting; Support 4 accesses independent detection, 4 areas independent detection
General Intelligence
Event Trigger	Motion detection, Video tampering , Scene changing, Network disconnection , IP address conflict, Illegal Access,Storage anomaly
General Intelligence	Object Abandoned/Missing
Heat Map	Yes
Video
Compression	H.265,H.264,H.264B,H.264H, MJPEG (sub stream)
Smart CODEC	Yes
Streaming Capability	3 Streams
Resolution	2592 × 1944 / 2688 × 1520 / 2560 × 1440 / 2304 × 1296 / 1080P (1920 × 1080) / 1.3M (1280 × 960) / 720P (1280 × 720) / D1 (704 × 576 / 704 × 480) / VGA (640 × 480) / CIF (352 × 288 / 352 × 240)
Frame Rate	Main Stream: 2592 × 1944 (1 fps – 20 fps) 2560 × 1440 (1 fps–25/30 fps) 1920 × 1080 (1 fps–50/60 fps) Sub Stream: D1 (1 fps–20/30 fps) D1 (1 fps–50 fps) Third Stream: 1080P (1 fps–17 fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.264: 32 Kbps–8192 Kbps H.265: 19 Kbps–8192 Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR (120 dB)
White Balance	Auto / Natural / Street Lamp / Outdoor / Manual
Gain Control	Auto / Manual
Noise Reduction	3D DNR
Motion Detection	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization (EIS)	N/A
Smart IR	Yes
Defog	Yes
Flip	0° / 90° / 180° / 270°
Mirror	Off / On
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	G.711a, G.711Mu, G.726, AAC, G.723
Network
Ethernet	RJ-45 (10/100 Base-T)
Protocol	IPv4; IPv6; HTTP; HTTPS; TCP; UDP; ARP; RTP; RTSP; RTCP ; RTMP; SMTP; FTP; SFTP; DHCP; DNS; DDNS; QoS; UPnP; NTP; Multi-cast; ICMP; IGMP; NFS; PPPoE; 802.1x; SNMP
Interoperability	ONVIF (Profile S/Profile G/Profile T), CGI, Milstone, Genetec, P2P
Streaming Method	Uni-cast / Multi-cast
Max. User Access	20 Users
Edge Storage	NAS;FTP;SFTP Micro SD card 256 GB
Web Viewer	IE (versions newer than IE8), Chrome, Firefox, Safari (versions newer than Safari 12)
Management Software	Smart PSS, DSS, DMSS
Smart Phone	iOS, Android
Certifications
Certifications	CE-LVD: EN60950 ~ 1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950 ~ 1 CAN/CSA C22.2 No.60950 ~ 1-07
Interface
Audio Interface	1/1 channel In/Out, Built-in Speaker
RS485	N/A
Alarm	1 channel In: 5mA 5V DC 1 channel Out: 300mA 12V DC
Electrical
Power Supply	DC 12V (±30%), PoE (802.3af) (Class 0)
Power Consumption	<8.5W
Environmental
Operating Conditions	−30° C to +60° C (−22° F to +140° F)/Less than 95% RH
Storage Conditions	−30° C to +60° C (−22° F to +140° F)
Ingress Protection	IP67
Vandal Resistance	N/A
Construction
Casing	Metal
Dimensions	244.1 mm × 79.0 mm × 75.9 mm (9.61" × 3.11" × 2.99")
Net Weight	0.815 kg (1.80 lb)
Gross Weight	1.08 kg (2.38 lb)
