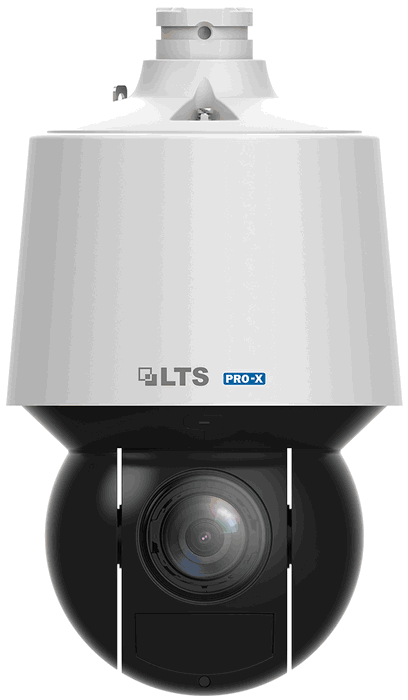

LXPTZIP514W-X32IR LTS Pro-X, IP, 4MP, IR, PTZ, MD 2.0 - Human and Vehicle Detection

SKU#

:

LXPTZIP514W-X32IR

Regular Price

:

$799.95

Sale Price

:

$639.95

You Save

$160.00(20.00% )

Availability

:

Usually ships the next business day

Quantity

:

LXPTZIP514W-X32IR LTS Pro-X, IP, 4MP, IR, PTZ, MD 2.0 - Human and Vehicle Detection

Model	LXPTZIP514W-X32IR
Camera
Image Sensor	1/2.8" 4Megapixel progressive CMOS
Min. Illumination	Color: 0.005 lux@F1.3, B/W: 0.0005 lux@F1.3, 0 Lux with IR light on
Shutter	Electronic 1/1 s-1/30, 000 s
S/N Ratio	> 56 dB
Noise Reduction	2D NR, 3D NR
Wide Dynamic Range	120 dB
Day & Night	Auto(ICR)/Color/B/W
Angle Adjustment	Pan: 0°-360° endless, Tilt: -15°to 90°, auto flip 180°
Optical Zoom	32x
Focal Length	4.9 mm-156 mm
Field of View	Horizontal: 61.6°-2.1°, Vertical: 35.1°-1.3°, Diagonal: 68.2°-2.5°
Close Focus Range	1 m-1.5 m (3.28 ft-4.92 ft)
DORI	Detect: 3,120m (10,236.22ft), Observe: 1,232 m (4,041.99ft), Recognize: 624 m (2,047.24ft), Identify: 312 m (1,023.62ft)
Illuminator	4 (IR LED)
Illumination Range	150 m (492.13ft)
Illuminator Control	Auto/Manual/ Smart IR/ Zoom Priority/ Off
Control Speed	Manual, Pan: 0.1°/s-250°/s, Tilt: 0.1°/s-140°/s
Preset	300
Tour	8 (up to 32 presets per tour)
Pattern	5
Scan	5
Power-off Memory	Yes
Video
Video Compression	H.265, H.264, H.264H, H.264B, MJPEG(only supported by sub stream1)
Smart Codec	Supported
Resolution	4MP (2560 x 1440), 3M (2048 x 1536), 1080p (1920 x 1080), 1.3M (1280 x 960), 720p (1280× 720), D1 (704 x 576/704 x 480), CIF (352 x 288/352 x 240)
Video Frame Rate	Main stream: 4MP (2560 x 1440)/ 3M (2048 x 1536)/ 1080p (1920 x 1080), 1.3M (1280 x 960)/ 720p (1280× 720) @1 fps- 30 fps Sub stream1: D1 (704 x 576/704 x 480)/ CIF (352 x 288/352 x 240) @1 fps-30 fps Sub stream2: 720p (1280× 720) @1 fps-30 fps
Video Stream	3 streams
Bit Rate Control	CBR, VBR
Video Bit Rate	H.264: 96 Kbps - 14848 Kbps H265: 38 Kbps - 8960 Kbps
ROI	Supported
Image Rotation	180°
Defog	Electronic
Image Stabilization	Electronic
Privacy Mask	Supported (24 areas with up to 8 areas in the same view)
Intelligent Analysis
VCA	Tripwire, intrusion (Support the classification and accurate detection of vehicle and human)
MD 2.0	Yes, support alarm triggered by vehicle and human
Face Detection	Supported
Auto Tracking	Supported
Event
Alarm event	Motion/tampering detection, audio detection, networkdisconnection detection, IP conflict detection, memorycard state detection, memory space detection
Network
Protocol	HTTP, HTTPS, TCP/IP, IPv4, RTSP, UDP, SMTP, NTP, DHCP,DNS, DDNS, IPv6, 802.1x, SSL, QoS, FTP, UPnP, ICMP,SNMP, IGMP, ARP, RTCP, RTP, PPPoE, RTMP, Bonjour,NFS
Interoperability	ONVIF (Profile S&G&T), API, P2P
Storage	FTP, SFTP, Micro SD Card (support max. 512 G), NAS
Web Browser	IE, Chrome, Firefox, Safari
Client	PRO-X, X Station
Interface
Network	RJ-45 (10/100 Base-T)
Alarm I/O	2 input, 1 output
Audio I/O	1 input, 1 output
Two-way Audio	Yes
General
Power	24V DC/ PoE+ (802.3at), <20W
Housing	Metal
Dimensions	Φ191 mm x 332 mm (Φ7.52" x 13.07")
Operating Conditions	-40 °C to +70 °C (-40 °F to +158 °F)
Protection Grade	IP67, IK10
Gross Weight	8 kg (17.64lb)
Net Weight	4.7 kg (10.36lb)
Certification	FCC
