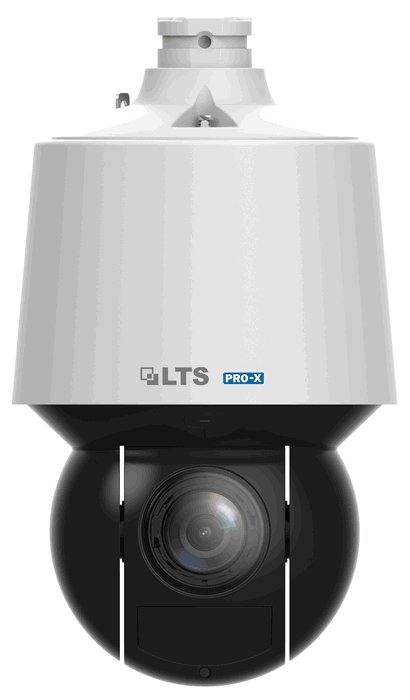

LXPTZ518W-25XR LTS 8MP 25X AI PTZ

SKU#

:

LXPTZ518W-25XR

Regular Price

:

$1299

Sale Price

:

$999

You Save

$300.00(23.09% )

Availability

:

Usually ships the next business day

Quantity

:

LXPTZ518W-25XR LTS 8MP 25X AI PTZ

Model	LXPTZ518W-25XR
Camera
Image Sensor	1/1.8" 8Megapixel progressive CMOS
Max. Resolution	3840 (H) x 2160 (V)
Min. Illumination	Color: 0.005 lux@F1.6, B/W: 0.0005 lux@F1.6, 0 Lux with IR light on
Shutter	Electronic 1/1 s-1/30, 000 s
S/N Ratio	> 55 dB
Noise Reduction	2D NR, 3D NR
Wide Dynamic Range	120 dB
Day & Night	Auto(ICR)/Color/B/W
Zoom	25x optical
Focal Length	5.4mm~135mm
Aperture	F1.6~F4.0
Field of View	H: 61.6°–3.6°; V: 35.7°–2°; D: 66.6°–4°
Close Focus Range	0.1 m–2 m (0.33 ft–6.56ft)
DORI	D: 2700.0 m; O: 1080.0 m; R: 540.0 m; I: 270.0 m (D: 8858.16 ft; O: 3543.26 ft; R: 1771.63 ft; I: 885.82 ft)
Illuminator	4 (IR LED)
Illumination Range	150 m (492.13ft)
Illuminator Control	Auto; manual;
Control Speed	Manual, Pan: 0.1°/s-250°/s; Tilt: 0.1°/s-140°/s
Power-off Memory	Yes
Video
Video Compression	H.265; H.264; MJPEG(Sub Stream 1);
Resolution	8M(3840x2160);3.5M (2560 x 1440); 3M (2048 x 1536); 2.9M(2304x1296);1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA(640x480);CIF (352 x 288/352 x 240)
Video Frame Rate	Main stream: 8M/3.5M/3M/2.9M/1080p/1.3M/720p (1–30 fps) Sub stream 1: D1/VCA/CIF (1–30 fps) Sub stream 2: 1080p/1.3M/720p (1–30 fps)
Video Stream	3 streams
Bit Rate Control	CBR, VBR
Video Bit Rate	H.264: 96 Kbps - 14848 Kbps H265: 38 Kbps - 8960 Kbps
ROI	Supported
Image Rotation	180°
Image Enhancement	BLC, HLC, 3D NR
Defog	Electronic
Image Stabilization	Electronic
Privacy Mask	Supported
PTZ
Range	Pan: 0°-360° endless, Tilt: -15°to 90°, auto flip 180°
Pan Speed	Manual Control: 0.1°/s-250°/s Preset: 250°/s
Tilt Speed	Manual Control: 0.1°/s-140°/s Preset: 140°/s
Preset	300
Patrol	8
Pattern	5
Scan	5
Scheduled Task	Preset, Pattern, Tour, Scan
Preset Freezing	Supported
3D Positioning	Supported
Intelligent Analysis
VCA	Tripwire; intrusion; crossing fence detection; loitering detection; abandoned/missing object; parking detection; people gathering; Smart linkage tracking
Motion Detection2.0	Yes, support alarm triggered by vehicle and human
Face Detection	Supported
Deep Learning Function	People Counting, video metadata
Auto Tracking	Supported
Audio
Built-in Mic	Not Supported
Built-in Speaker	Not Supported
Audio Compression	PCM; G.711a; G.711Mu;
Audio Bitrate	Sampling rate :PCM( 8000Hz; 16000Hz; 32000 Hz) G.711A( 8000 Hz ); G.711Mu(8000 Hz;)
Event
Basic Event	Motion/tampering detection; network disconnection detection; IP conflict detection; memory card state detection; memory space detection
Alarm Linkage	Capture; recording; send email; preset; tour; pattern; alarm digital output; audio; warning light
Network
Protocol	HTTP;HTTPS;TCP/IP;IPv4;RTSP;SMTP;NTP;DHCP;DNS;DDNS;IPv6;802.1x;SSL; Qos;FTP;UPnP;SNMP;ARP;RTCP;RTP;PP PoE;RTMP;Bonjour;NFS
Interoperability	ONVIF (Profile S&G&T); CGI; SDK
Storage	Micro SD card (512 GB); FTP/SFTP; NAS
Web Browser	IE 9 and later versions Chrome 41 and later versions Firefox 50 and later versions
Client	IOS;Android
Interface
Ethernet Interface	RJ-45 (10/100 Base-T)
Alarm I/O	2 input, 1 output
Audio I/O	1 input, 1 output
General
Power	24V DC/ PoE+ (802.3at)
Power Consumption	Max. 23W
Material	Metal
Dimensions	Φ191 mm x 332 mm (Φ7.52" x 13.07")
Operating Conditions	-40 °F to +158 °F (-40 °C to +70 °C)
Protection	IP67, IK10
Gross Weight	8 kg (17.64lb)
Net Weight	4.7 kg (10.36lb)
Certifications	FCC
Accessory included	CAB-W02
