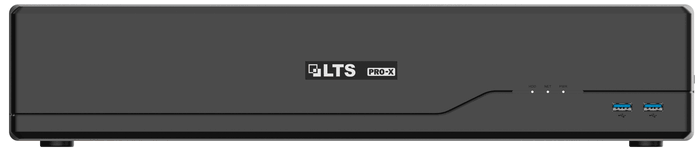

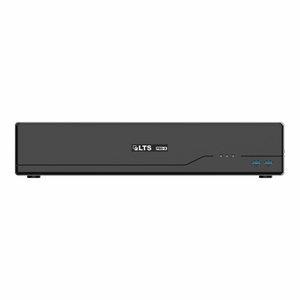

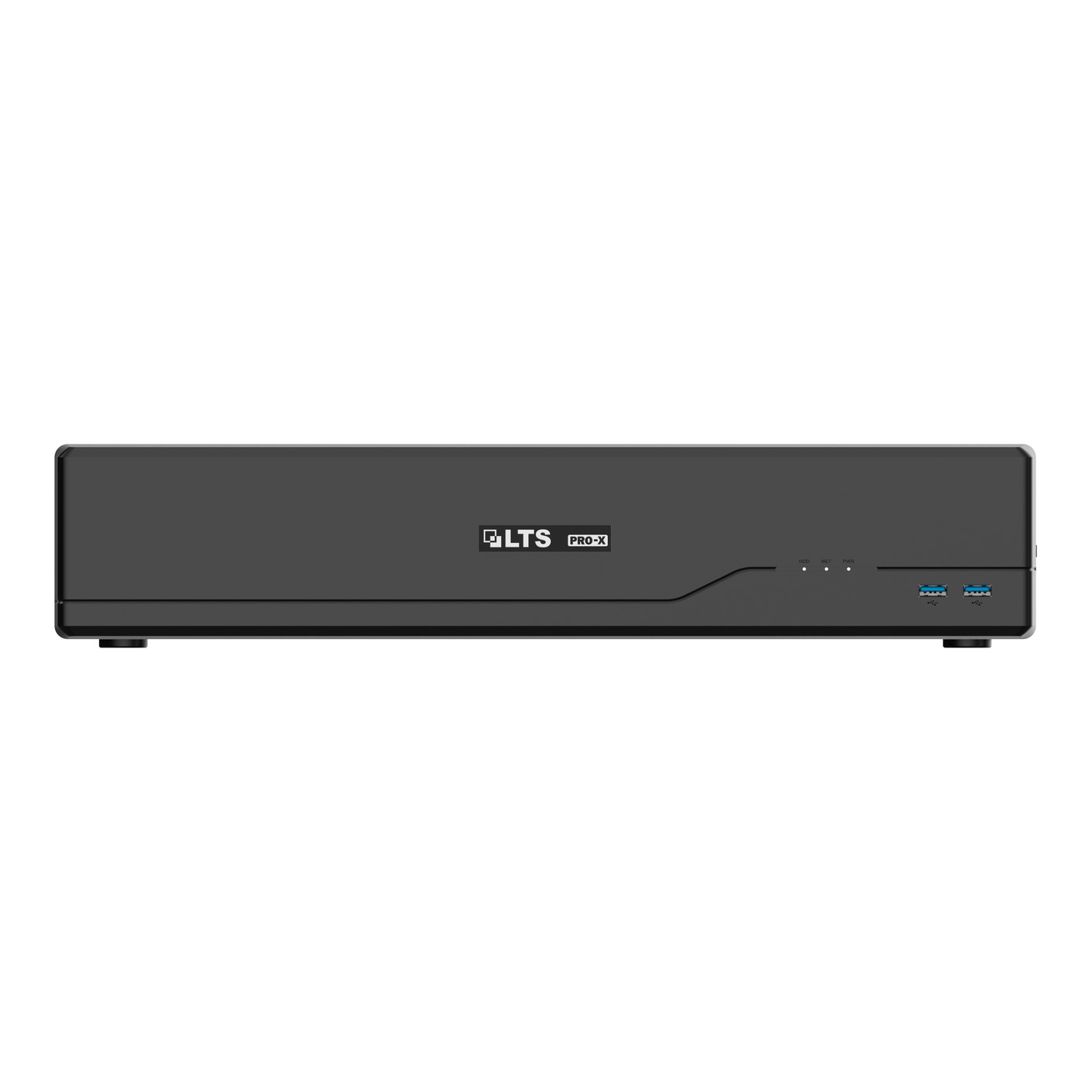

LXN9464D LTS Pro-X, NVR, 64ch, 2U, 8HDDs, 8 SATA @ 16TB each, MD 2.0 - Human and Vehicle Detection

SKU#

:

LXN9464D

Regular Price

:

$2144

Sale Price

:

$1799.95

You Save

$344.05(16.05% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

LXN9464D LTS Pro-X, NVR, 64ch, 2U, 8HDDs, 8 SATA @ 16TB each, MD 2.0 - Human and Vehicle Detection

Model	LXN9464D
Audio / Video
IP Video Input	64 channels
Recording Resolutions	3, 4, 5, 6, 8, 12, 16, 32 MP; 1080p; 720p; D1; VGA; CIF
HDMI Output Resolutions	4K (3840 x 2160), 1920 x 1080, 1280 x 1024, 1280 x 720
VGA Output Resolutions	1920 x 1080, 1280 x 1024, 1280 x 720
Video Output Modes	HDMI1 / HDMI2 independent output, HDMI1 / VGA1 simultaneous output, HDMI2 / VGA2 simultaneous output
Two-way Audio Input	1 ch, RCA
Audio Output	1 ch, RCA
Third-party Camera Access	ONVIF; RTSP
Decoding
Decoding Format	Smart Encoding; H.265; H.264; H.264H; H.264B; MJPEG
Live View / Playback Resolution	3, 4, 5, 6, 8, 12, 16, 32 MP; 1080p; 720p; D1; VGA; CIF
Decoding Capabilities	AI ON: 1 ch @ 32 MP (30 fps) / 2 ch @ 16 MP (30 fps) / 4 ch @ 8 MP (30 fps) / 12 ch @ 4 MP (30 fps) / 24 ch @ 1080p (30 fps) AI OFF: 2 ch @ 32 MP (30 fps) / 4 ch @ 16 MP (30 fps) / 8 ch @ 8 MP (30 fps) / 16 ch @ 4 MP (30 fps) / 32 ch @ 1080p (30 fps)
Synchronous Playback	1, 4, 9, 16, 25, 36, 64 views
Intelligent Features
Motion Detection 2.0	16 ch, MD 2.0 by camera 8 ch, MD 2.0 by NVR
VCA	16 ch,, line crossing by camera 4 ch, line crossing by NVR
Face Recognition	2 ch, human face capture and recognition 16 ch, face image comparison alarm, (face images captured by camera)
Face Image Database	Up to 20 image libraries, with up to 20,000 images in total
Network
Incoming Bandwidth	384 Mbps (200 Mbps with AI enabled)
Outgoing Bandwidth	384 Mbps (200 Mbps with AI enabled)
Network Protocols	HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS
Network Interface	2 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet Interface
PoE Interface	N/A
Mobile Phone Access	Pro-X
Auxiliary Interface
SATA	8 x SATA interface
Capability	Up to 16 TB for each hard disk
RAID	RAID 0 / 1 / 5 / 6 / 10
Alarm Channels � In / Out	16 / 8
USB Interface	Front panel: 2 x USB 2.0; Rear panel: 2 x USB 3.0
General
Power Supply	100 to 240 VAC, 50 to 60 Hz
Power Consumption	< 13 W (HDD not included)
Operating Temperature	14° to 131° F (�10° to 55° C)
Operating Humidity	10% to 93%
Dimensions (W x D x H)	17.40 x 17.84 x 3.46" (442.0 x 453.1 x 88.0 mm)
Weight (without HDD)	14.11 lb (6.4 kg)
Certifications	FCC: Part 15 Subpart B
