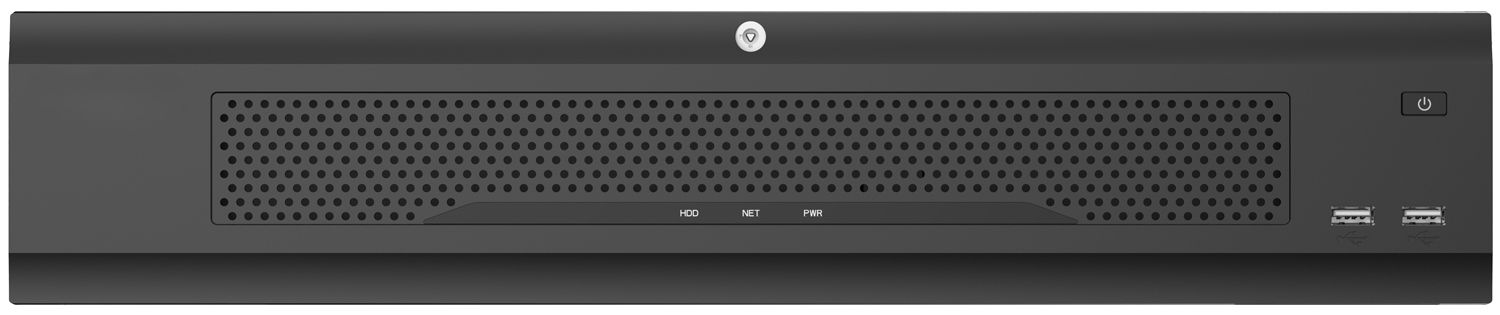

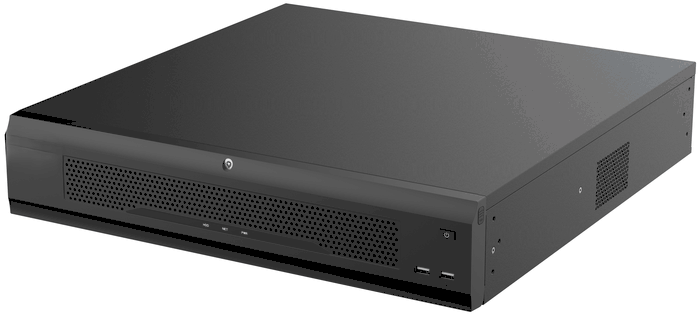

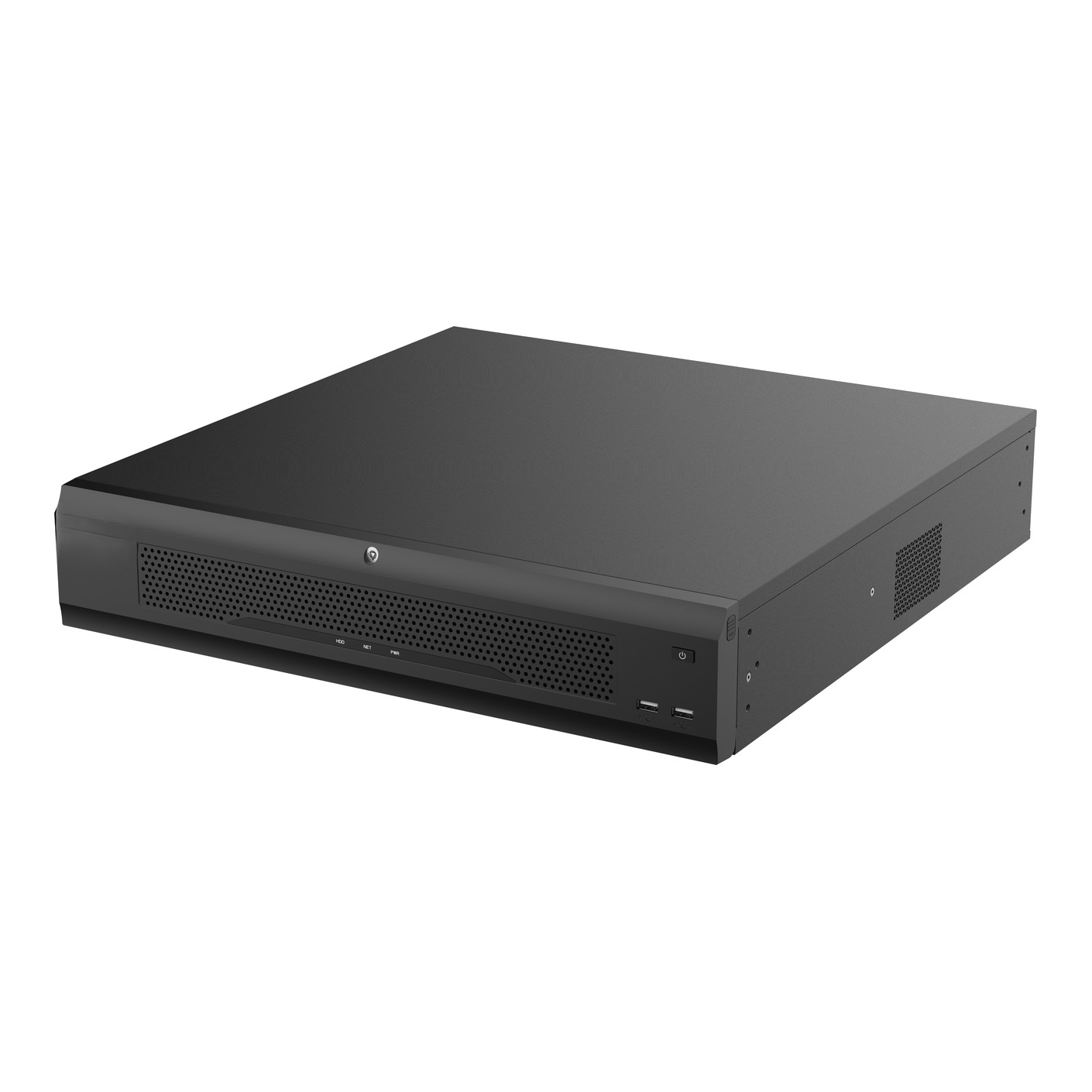

LXN108128D LTS 128CH 8 HDD Dual-NIC Ultra AI NVR

LXN108128D LTS 128CH 8 HDD Dual-NIC Ultra AI NVR
- Up to 8K (32MP) Resolution Recording
- 4 HDMI Ports and 2 VGA Ports
- Camera AI Compatibility: Face Detection, Face Recognition, VCA, MD2.0, License Plate Recognition, People Counting, Heat Map, Object Monitoring, Metadata
- Recorder AI Feature: Face Recognition, VCA, MD2.0, Metadata
- Supports remote configuration and management of IPC, such as setting parameters, getting information, batch upgrading
- X search 2.0
- Supports N+M hot-spare
- Raid 0/1/5/6/10
| Model | LXN108128D |
| Video/Audio | |
| IP Video Input | 128-ch |
| Recording Resolution | 32MP, 24MP;16MP; 12MP; 8MP; 4MP; 1080p; 720p; D1; VGA; CIF |
| HDMI Output Resolution | 4-ports HDMI1&2: 3840 x 2160, 1920 x 1080, 1280 x 1024; HDMI3: 7680 x 4320, 3840 x 2160, 1920 x 1080, 1280 x 1024; HDMI4: 1920 x 1080, 1280 x 1024, |
| VGA Output Resolution | 2-ports 1920 x 1080, 1280 x 1024 |
| Video Output Mode | Simultaneous mode: HDMI 1, HDMI 2, HDMI 3, HDMI 4 and VGA1, VGA 2 provide simultaneous output The maximum resolution for HDMI 3 is 8K, the maximum resolution for HDMI 1 and HDMI 2 is 4K, the maximum
resolution for HDMI 4, VGA 1 and VGA 2 is 1080p Independent mode: simultaneous outputs video sources for the VGA1 and HDMI1, or VGA2 and HDMI2. It also outputs independent video sources for HDMI1–4. The maximum resolution for HDMI 1-3 is 4K, the maximum resolution for HDMI 4, VGA 1 and VGA 2 is 1080p |
| Two-way Audio Input | 1-ch, RCA |
| Audio Output | 2-ch, RCA |
| Third-party Camera Access | ONVIF; RTSP |
| Decoding | |
| Decoding Format | H.265; H.264; MJPEG |
| Live View/Playback Resolution | 32MP, 24MP;16MP; 12MP; 8MP; 6MP; 5MP; 4MP; 3MP; 1080p; 720p; D1; VGA; CIF |
| Decoding Capability | AI OFF: 2-ch@32MP(30fps)/2-ch@24MP(30fps)/4-ch@16MP(30fps)/5-ch@12MP(30fps)/8-ch@8MP(30fps)/16- ch@4MP(30fps)/32-ch@1080p(30fps)/128-ch@D1(30fps) AI ON: 1-ch@32MP(30fps)/1-ch@24MP(30fps)/2-ch@16MP(30fps)/2-ch@12MP(30fps)/4-ch@8MP(30fps)/8-ch@4MP(30fps)/16-ch@1080p(30fps)/80-ch@D1(30fps) |
| Live View Window Division | 1, 4, 8, 9, 16, 25, 36,64 views |
| Aux Port Window Division | 1, 4, 8, 9, 16,32 views |
| Synchronous Playback | 16-ch |
| Intelligent | |
| MD2.0 | 128-ch, MD2.0 by Camera, 128 targets/s in total 32-ch, MD2.0 by NVR |
| VCA | 128-ch, Line Crossing and Intrusion by Camera, 64 targets/s in total 32-ch, Line Crossing and Intrusion by NVR in simultaneous video output mode 24-ch, Line Crossing and Intrusion by NVR in Independent video utput mode |
| Face Detection | 64-ch, Face Detection by Camera 8-ch, Face Detection by NVR in simultaneous video output mode 5-ch, Face Detection by NVR in Independent video output mode |
| Face Recognition | Simultaneous video output mode: 64-ch, face picture comparison alarm, (Face picture captured from Camera) 8-ch, face picture comparison alarm, (Face picture captured from NVR) Independent video output mode: 64-ch, face picture comparison alarm, (Face picture captured from Camera) 8-ch, face picture comparison alarm, (Face picture captured from NVR) |
| Face Picture Database | Up to 40 face picture libraries, with up to 300,000 face pictures in total |
| X Search | 64-ch, Specific AI Camera Required |
| Video Metadata | 64-ch, Metadata by Camera 8-ch, Metadata by NVR |
| License Plate Recognition | 128-ch, License Plate Recognition Camera Required, 64 targets/s in total |
| LPR Database | Blocklist and Allowlist, up to 20,000 plate numbers |
| Network | |
| Incoming Bandwidth | 1408 Mbps (1408 Mbps with AI enabled) |
| Outgoing Bandwidth | 1024 Mbps (512 Mbps with AI enabled) |
| Network Protocol | HTTP; HTTPS; TCP/IP; IPv4/IPv6; UPnP; SNMP; RTSP; UDP; SMTP; NTP; DHCP; DNS; DDNS |
| Network Interface | 2 (10/100/1000/2500 Mbps Ethernet port, RJ-45) |
| PoE Interface | N/A |
| PoE Standard | N/A |
| Mobile Phone Access | Pro-X Next |
| Auxiliary Interface | |
| SATA | 8 SATA interface |
| Capability | Up to 20 TB for each hard disk |
| eSATA | 1 eSATA interface |
| Alarm In/Out | 16/8 |
| USB Interface | Front panel: 2 x USB 2.0; Rear panel: 2 x USB 3.0 |
| Serial Port | RS232/RS485 |
| General | |
| Power Supply | 100 to 240 VAC, 50 to 60 Hz |
| Power Consumption | < 18 W (HDD not included) |
| Working Temperature | –10 °C to +55 °C (+14 °F to +131 °F) |
| Working Humidity | 10% to 93% |
| Product Dimensions | 442.0 mm x 457.3 mm x 88.0 mm (17.4" x 18.0" x 3.5") (W x D x H) |
| Weight | 7.16kg(15.79 lb), without HDD |
| Installation | Rack or desktop |
| Certifications | FCC |
