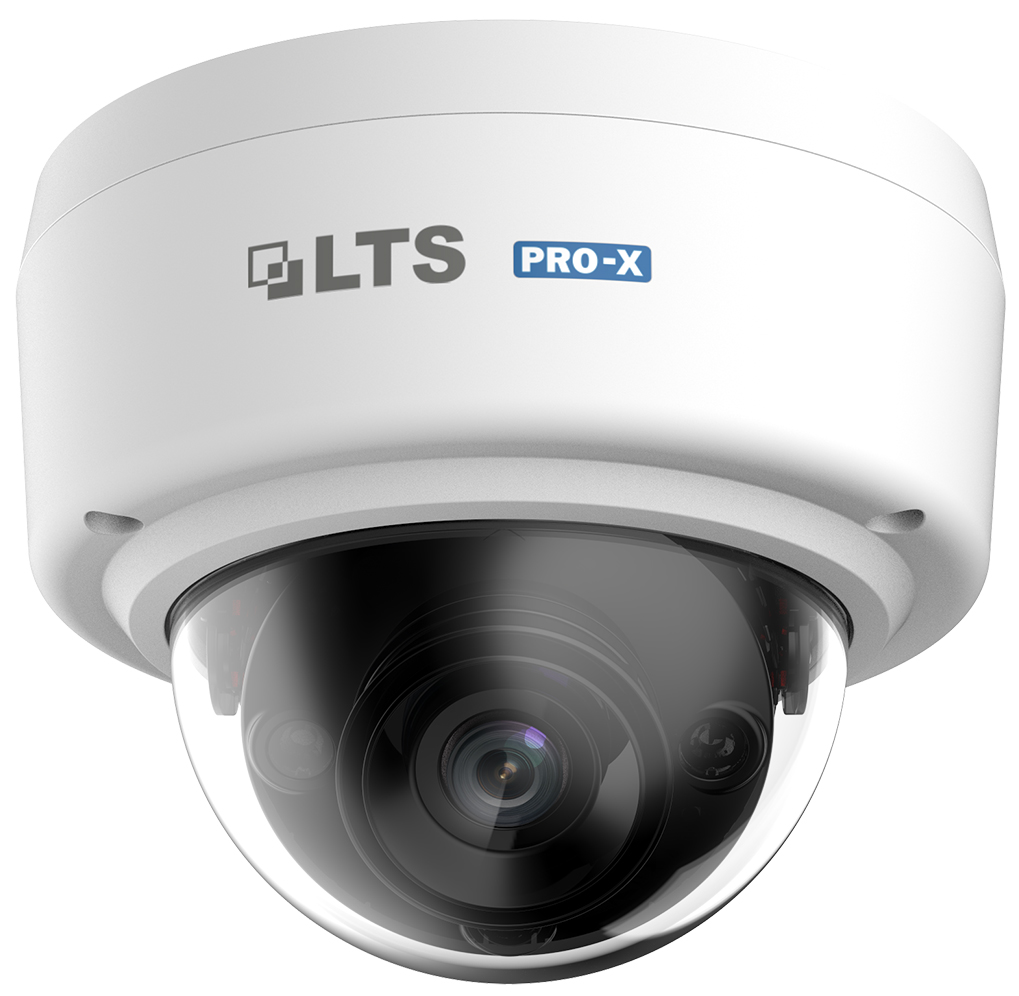

LXIP7582W-28SD LTS Pro-X, IP, 8MP, 2.8mm, Fixed-lens Dome, 120dB True WDR, 3D DNR, SD Card, Audio in and out, Alarm in and out, POE Power Support, IP67 and IK10 protection, MD 2.0 - Human and Vehicle Detection

LXIP7582W-28SD LTS Pro-X, IP, 8MP, 2.8mm, Fixed-lens Dome, 120dB True WDR, 3D DNR, SD Card, Audio in and out, Alarm in and out, POE Power Support, IP67 and IK10 protection, MD 2.0 - Human and Vehicle Detection

SKU#

:

LXIP7582W-28SD

Regular Price

:

$249.95

Sale Price

:

$199.95

You Save

$50.00(20.00% )

Availability

:

Usually ships the next business day

Quantity

:

Model	LXIP7582W-28SD
Camera
Image Sensor	1/2.8� 8Megapixel progressive CMOS
Min. Illumination	0.005 Lux@F1.4 (Color, 30IRE), 0.0005 Lux@F1.4 (B/W, 30IRE), 0 Lux (Illuminator on)
Shutter	Auto/Manual 1/3 s-1/100, 000 s
S/N Ratio	> 56 dB
Noise Reduction	3D DNR
Wide Dynamic Range	120 dB
Day & Night	Auto(ICR)/Color/B/W
Angle Adjustment	Pan: 0°- 360°, Tilt: 0°- 60°, Rotation: 0°- 355°
Lens Type	Fixed-focal 2.8mm @F1.4
Iris Type	Fixed
Field of View	Horizontal 108° x Vertical 58° x Diagonal 127°
Close Focus Range	1.4 m (4.6ft)
DORI	Detect: 85.5 m (280.5ft), Observe: 34.2 m (112.2ft), Recognize: 17.1 m (56.1ft), Identify: 8.6 m (28.2ft)
Illuminator	3 (IR LED)
Illumination Range	30 m (98.4 ft)
Illuminator Control	Auto/Manual
Video
Video Compression	H.265, H.264, H.264H, H.264B, MJPEG(only supported by sub stream)
Smart Codec	Supported
Resolution	8M (3840 x 2160), 6M (3072 x 2048), 5M (3072 x 1728/2592 x 1944), 4M (2688 x 1520), 3M (2048 x 1536/2304 x 1296), 1080p (1920 x 1080), 1.3M (1280 x 960), 720p (1280 x 720), D1(704 x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/352 x 240)
Video Frame Rate	Main stream: 3840 x 2160 @ (1-20 fps by default) / 3840 x 2160 @ (1-30 fps when AI function disabled) Sub stream: 704 x 576 @ (1-25 fps)/ 704 x 480 @ (1-30 fps) Third stream: 1920 x 1080 @ (1-30 fps)
Video Stream	3 streams
Bit Rate Control	CBR, VBR
Video Bit Rate	H.264: 3 kbps - 8192 kbps, H.265: 3 kbps - 8192 kbps
ROI	Supported (4 areas)
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 1920 x 1080 resolution and lower.)
Mirror	Supported
Privacy Mask	Supported (4 areas)
Audio
Audio Compression	G.711a, G.711Mu, G726
Intelligent Analysis
VCA	Tripwire, intrusion (Support the classification and accurate detection of vehicle and human)
MD 2.0	Yes, support alarm triggered by vehicle and human
Event
Alarm event	No SD card, SD card full, SD card error, service life warning (only supported by card), network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage detection, external alarm, IMD, safety exception
Network
Protocol	IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
Interoperability	ONVIF(Profile S/Profile G/Profile T), API, P2P
Storage	FTP, SFTP, Micro SD Card (support max. 256 G), NAS
Web Browser	IE: IE8, IE9, IE11, Chrome, Firefox
Client	PRO-X, X Station
Interface
Network	RJ-45 (10/100 Base-T)
Audio I/O	1 channel (RCA port) audio input, 1 channel (RCA port) audio output
Alarm I/O	1 channel alarm input: 5mA 3V-5V DC , 1 channel alarm output: 300mA 12V DC
General
Power	12V DC/PoE (802.3af), <7W
Housing	Metal
Dimensions	100.0 mm x Φ126.0 mm (3.94" x Φ4.96")
Operating Conditions	-40°C to +55°C (-40°F to +131°F)/Less than 95% RH
Storage Conditions	-40°C to +60°C (-40°F to +140°F)
Protection Grade	IP67, IK10
Net Weight	0.56 kg (1.2lb)
Gross Weight	0.72 kg (1.6lb)
Certification	FCC
