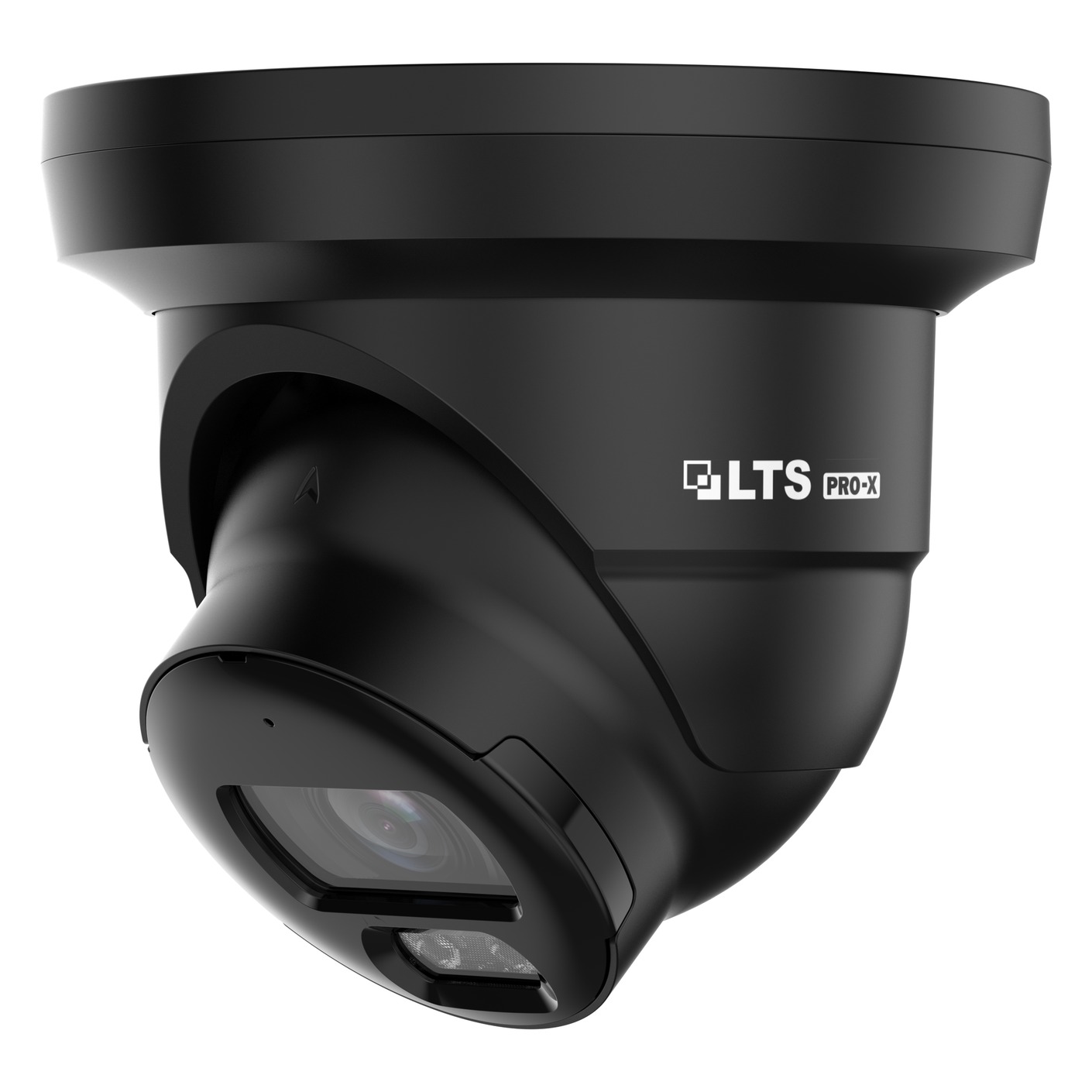

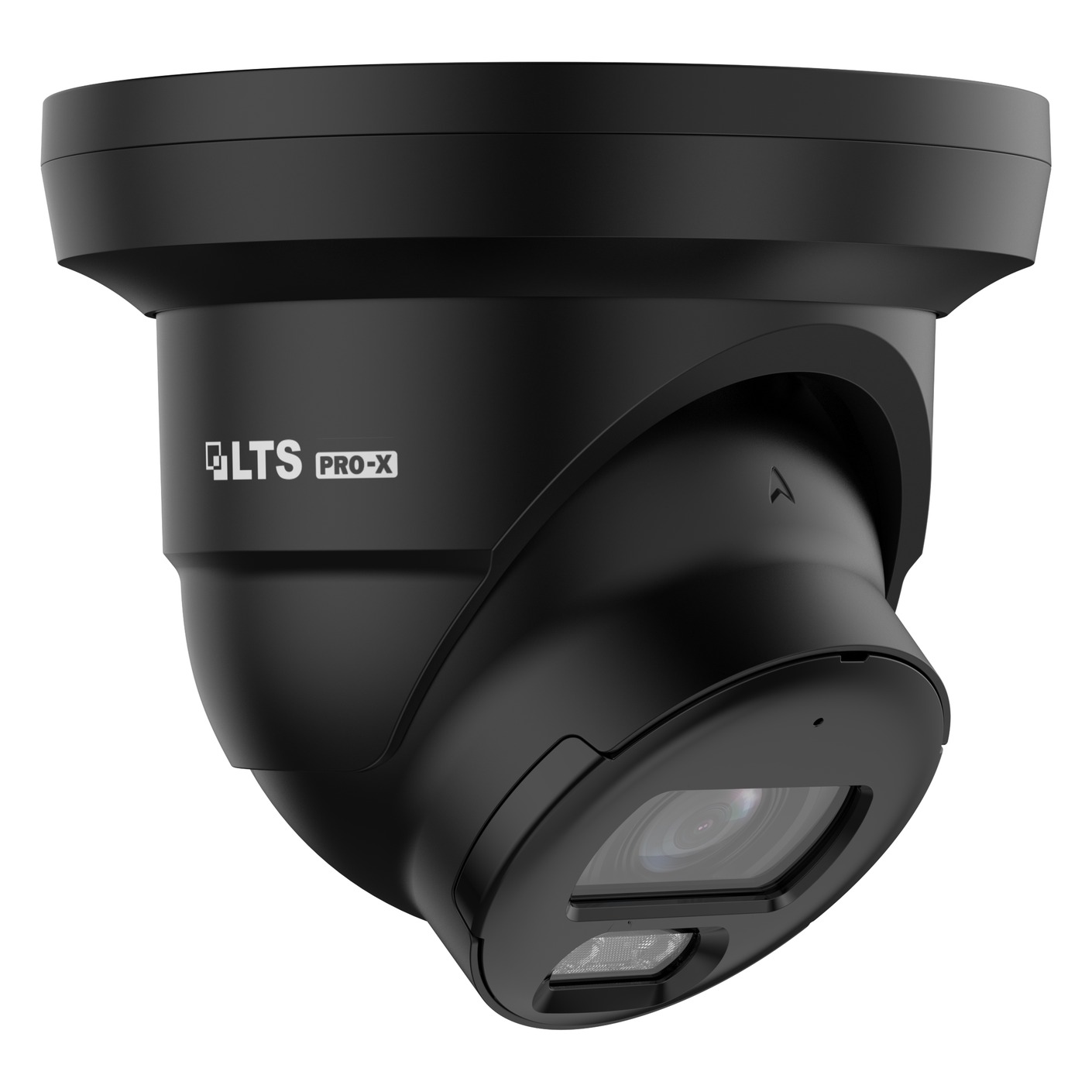

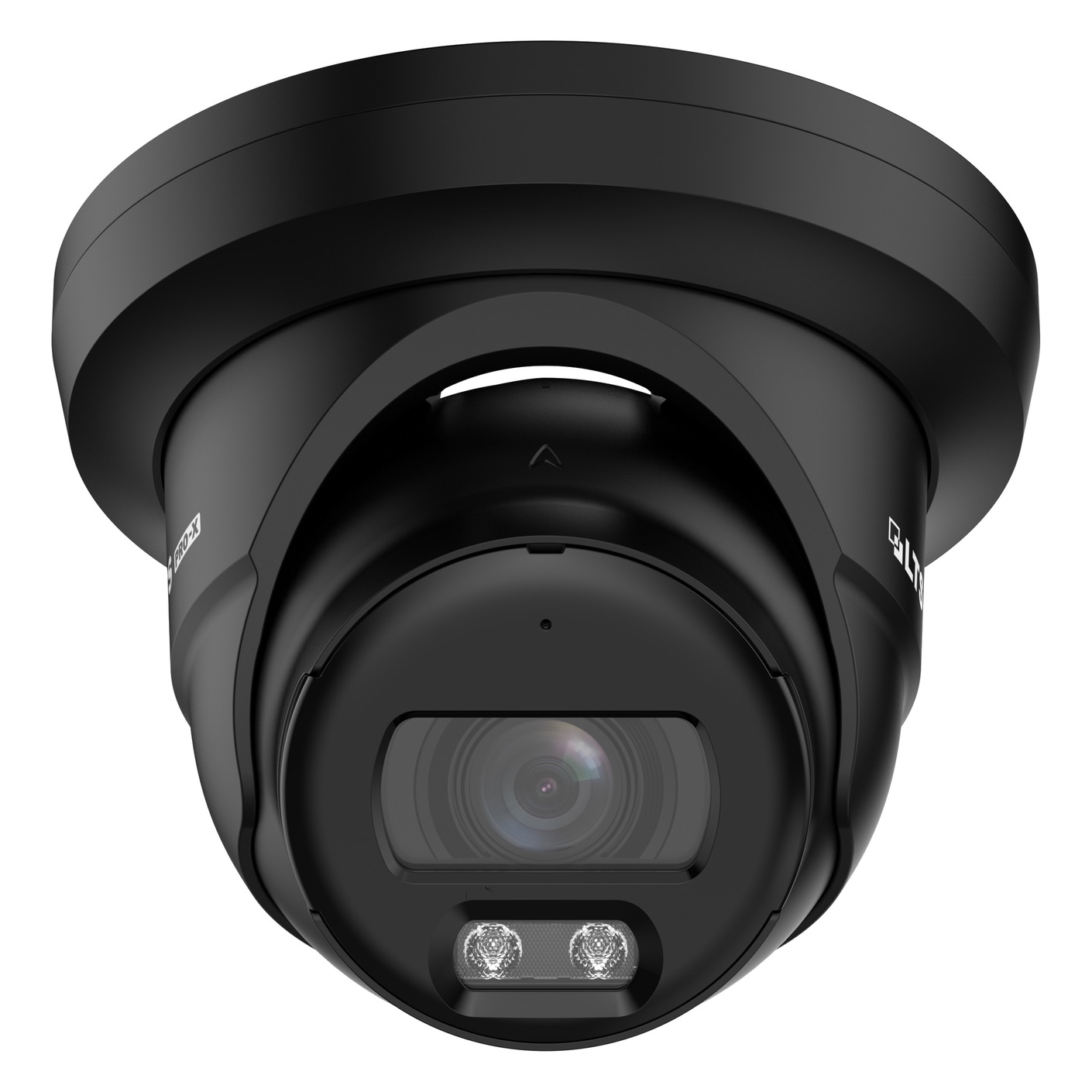

LTS LXIP3582WEB-28MDA Pro-X 8MP Dual Light Lite Black Fixed Turret Network Camera 2.8mm

Additional View

LTS LXIP3582WEB-28MDA - NDAA compliant Pro-X, black, 8MP 4K, 2.8mm fixed lens, Dual Light Lite (IR + warm light), MD 2.0, built-in mic, IP67, 12VDC/PoE.

Camera
Image Sensor	1/2.7" CMOS
Min. Illumination	0.007 Lux @ F1.6 (Color), 0.0007 Lux @ F1.6(B/W)
E-shutter Speed	Auto/Manual 1/3 s�1/100,000 s
S/N Ratio	> 56 dB
Noise Reduction	3D NR
Wide Dynamic Range	120 dB
Day & Night	Color/B/W
Angle Adjustment	Pan and Rotation: 0�-360� Tilt: 0�-78�
Lens Type	Fixed-focal 2.8mm at F1.6
Iris Type	Fixed
Field of View	Horizontal: 110�, Vertical: 58�, Diagonal: 132�
Close Focus Range	4.92 ft (1.5 m)
DORI	Detect: 277.23 ft (84.5 m) Observe: 110.27 ft (33.6 m) Recognize: 54.46 ft (16.6 m) Identify: 27.23 ft (8.3 m)
Illuminators	1 x Warm white Light, 1x IR Light
Illumination Range	Up to 100 ft
Illuminator Control	Auto, Manual, Off
Video
Video Compression	H.265; H.264; MJPEG (Sub Stream Only)
Resolution	8MP (38402160), 6MP (30722048), 5MP (30721728), 5MP (28801620), 4MP (26881520), 3MP (20481536), 3MP (23041296), 1080P (19201080), 1.3MP (1280960), 720P (1280720), D1 (704480), VGA (640480), CIF (352*240)
Maximum Frame Rate	Main stream: 8MP (38402160) at 20 fps, 4MP (26881520) / 30 fps Sub stream: D1 (704*576) / 30 fps
Video Stream	2 streams
Bit Rate Control	CBR, VBR
ROI	Supported (4 areas)
Image Rotation	0�, 90�, 180� and 270� (90� and 270� only for 2688 � 1520 resolution and lower)
Mirror	Supported
Privacy Mask	Supported (4 areas)
Audio
Built-in MIC	Yes
Audio Compression	PCM, G.711a, G.711Mu
Intelligent Analysis
VCA (Video Content Analytics)	Intrusion, Line Crossing
MD2.0	Supported
Event
Alarm Event	Line Crossing, Intrusion, Motion Detection, MD2.0, Audio Detection, Video Tampering, Disk Full, Disk Error, Offline, IP conflict, Voltage Detection, Security Warning
Network
Protocol	IPv4, IPv6, DNS, TCP, UDP, DHCP, HTTP, HTTPS, 802.1X, RTSP, DDNS, P2P, SMTP, RTMP, PPPoE, UPnP, Bonjour, QoS, Auto Registration, ICMP, IGMP, FTP, SFTP, RTP, RTCP, ARP, NTP, Multicast, NFS
Interoperability	ONVIF (Profile S & Profile G & Profile T); CGI
Storage	FTP, SFTP, Micro SD card (support max. 256 GB), NAS
Web Browser	Chrome, Firefox
PC client	X Station
Mobile APP	Pro-X Next
Interface
Network port	RJ-45 (10/100 Base-T)
Micro SD card Slot	Yes
Audio I/O	1 x Input, 1 x Output
Alarm I/O	1 x Input (Max. 5 VDC, 5 mA), 1 x Output (Max. 12 VDC, 300 mA)
Reset Button	Supported
General
Power Supply	12 VDC / PoE (802.3af)
Power Consumption	12 VDC: Max 6.9W, Typical 2.6W / PoE: Max 8.3W, Typical 3.3W
Housing	Metal
Dimensions	Φ4.80" x 4.4" (Φ122.0 mm x 118.4 mm)
Dimensions With Box	5.83��5.47��5.39�� (148mm�139mm�137mm) (LWH)
Operating Conditions	-40�C to +60�C (-40�F to +140�F)/less than 95% RH
Storage Conditions	-40�C to +60�C (-40�F to +140�F)
Protection Grade	IP67
Net Weight	1.20lb (543g)
Gross Weight	1.56lb (710g)
Certification	FCC
