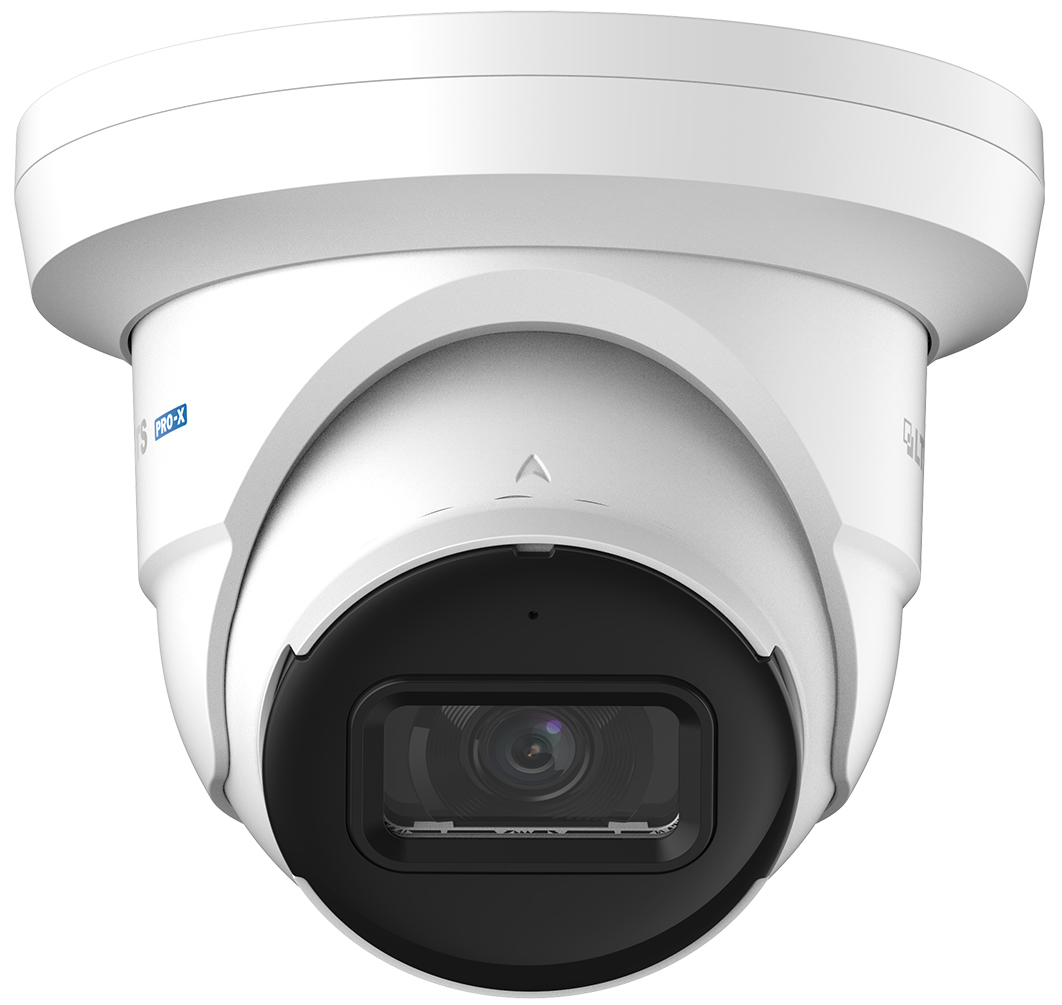

LXIP3582W-28MDA LTS Pro-X, IP, 8MP, 2.8mm, Fixed-lens, Turret, 120dB True WDR, 3D DNR, SD Card, Built-in Mic, POE Power Support, IP67, MD 2.0 - Human and Vehicle Detection

SKU#

:

LXIP3582W-28MDA

Regular Price

:

$249.95

Sale Price

:

$199.95

You Save

$50.00(20.00% )

Availability

:

Usually ships the next business day

Quantity

:

LXIP3582W-28MDA LTS Pro-X, IP, 8MP, 2.8mm, Fixed-lens, Turret, 120dB True WDR, 3D DNR, SD Card, Built-in Mic, POE Power Support, IP67, MD 2.0 - Human and Vehicle Detection

Model	LXIP3582W-28MDA
Camera
Image Sensor	1/2.8� 8Megapixel progressive CMOS
Min. Illumination	0.005 Lux@F1.4 (Color, 30IRE), 0.0005 Lux@F1.4 (B/W, 30IRE), 0 Lux (Illuminator on)
Shutter	Auto/Manual 1/3 s-1/100, 000 s
S/N Ratio	> 56 dB
Noise Reduction	3D DNR
Wide Dynamic Range	120 dB
Day & Night	Auto(ICR)/Color/B/W
Angle Adjustment	Pan: 0°-360°, Tilt: 0°-78°, Rotation: 0°-360°
Lens Type	Fixed-focal 2.8mm@F1.4
Iris Type	Fixed
Field of View	Horizontal 108° x Vertical 58° x Diagonal 127°
Close Focus Range	1.4 m (4.6ft)
DORI	Detect: 85.5 m (280.5ft), Observe: 34.2 m (112.2ft) , Recognize: 17.1 m (56.1ft), Identify: 8.6 m (28.2ft)
Illuminator	2 (IR LED)
Illumination Range	30 m (98.4ft)
Illuminator Control	Auto/Manual
Video
Video Compression	H.265, H.264, H.264H, H.264B, MJPEG(only supported by sub stream)
Smart Codec	Supported
Resolution	8M (3840 x 2160), 6M (3072 x 2048), 5M (3072 x 1728/2592 x 1944), 4M (2688 x 1520), 3M (2048 x 1536/2304 x 1296), 1080p (1920 x 1080), 1.3M (1280 x 960), 720p (1280 x 720), D1(704 x 576/704 x 480), VGA (640 x 480), CIF (352 x 288/352 x 240)
Video Frame Rate	Main stream: 3840 x 2160 @ (1-20 fps by default) / 3840 x 2160 @ (1-30 fps when AI function disabled) Sub stream: 704 x 576 @ (1-25 fps)/ 704 x 480 @ (1-30 fps) Third stream: 1920 x 1080 @ (1-30 fps)
Video Stream	3 streams
Bit Rate Control	CBR, VBR
Video Bit Rate	H.264: 3 kbps - 8192 kbps, H.265: 3 kbps - 8192 kbps
ROI	Supported (4 areas)
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 1920 x 1080 resolution and lower.)
Mirror	Supported
Privacy Mask	Supported (4 areas)
Audio
Built-in MIC	Yes
Audio Compression	G.711a, G.711Mu, G726
Intelligent Analysis
VCA	Tripwire, intrusion (Support the classification and accurate detection of vehicle and human)
MD 2.0	Yes, support alarm triggered by vehicle and human
Event
Alarm event	No SD card, SD card full, SD card error, service life warning (only supported by card), network disconnection, IP conflict, illegal access, motion detection, video tampering, intrusion, tripwire, scene changing, audio detection, voltage detection, IMD, safety exception
Network
Protocol	IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP, RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, SAMBA, PPPoE, SNMP
Interoperability	ONVIF(Profile S/Profile G/Profile T), API, P2P
Storage	FTP, SFTP, Micro SD Card (support max. 256 G), Cloud, NAS
Web Browser	IE: IE8, IE9, IE11, Chrome, Firefox
Client	PRO-X, X Station
Interface
Network	RJ-45 (10/100 Base-T)
General
Power	12V DC/PoE (802.3af), <7.9W
Housing	Aluminum alloy body, except for trim ring
Dimensions	105.4 mm x Φ122.0 mm (4.15" x Φ4.8")
Operating Conditions	-40°C to +60°C (-40°F to +140°F)/ less than 95% RH
Storage Conditions	-40°C to +60°C (-40°F to +140°F)
Protection Grade	IP67
Net Weight	0.55 kg (1.2lb)
Gross Weight	0.69 kg (1.5lb)
Certification	FCC
