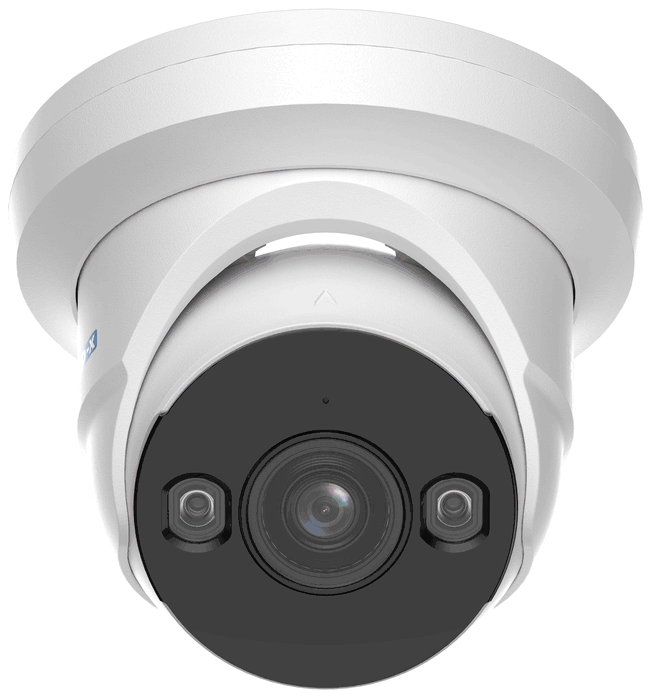

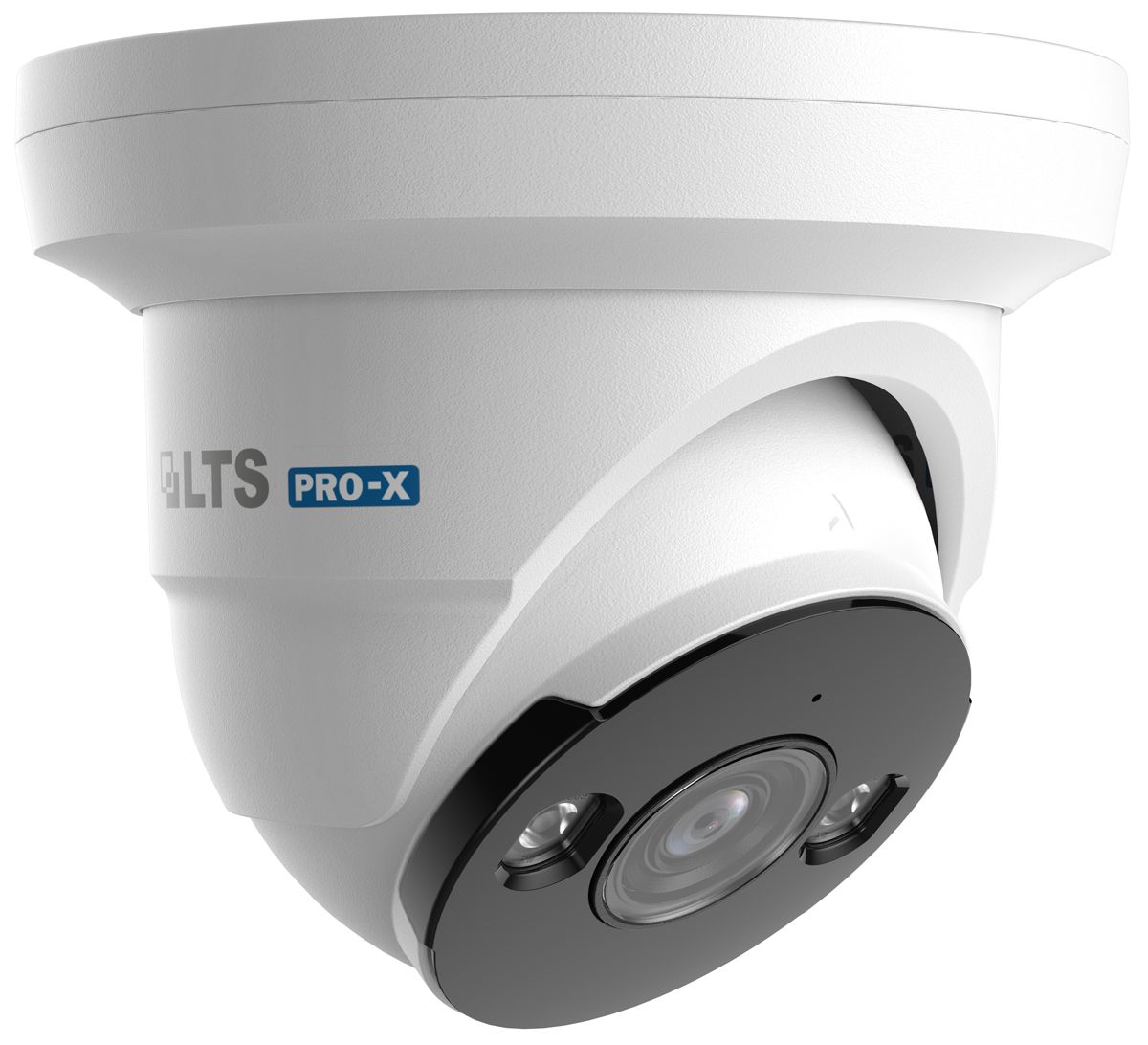

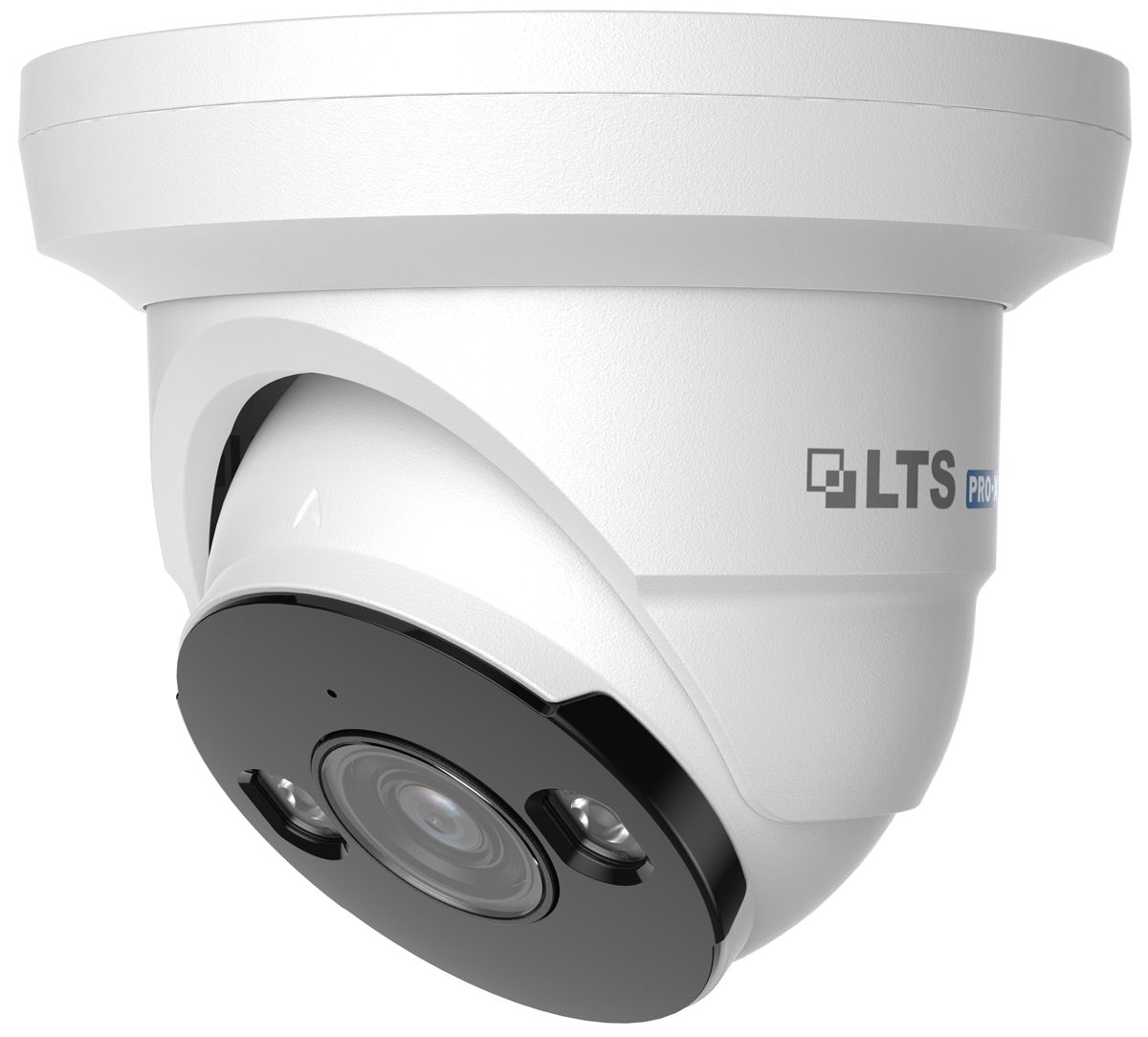

LXIP1182WE-28MDA LTS 8MP Dual Light Fixed-focal Turret Network Camera

Additional View

LXIP1182WE-28MDA LTS 8MP Dual Light Fixed-focal Turret Network Camera

SKU#

:

LXIP1182WE-28MDA

Regular Price

:

$269.95

Sale Price

:

$179.95

You Save

$90.00(33.34% )

Availability

:

Usually ships the next business day

Quantity

:

LXIP1182WE-28MDA LTS 8MP Dual Light Fixed-focal Turret Network Camera

Model	LXIP1182WE-28MDA
Camera
Image Sensor	1/2.8" 8Megapixel progressive CMOS
Min. Illumination	0.008 Lux@F1.6 (Color, 30 IRE), 0.0008 Lux@F1.6 (B/W, 30 IRE), 0 Lux with illuminator on
Shutter	Auto/Manual 1/3 s–1/100,000 s
S/N Ratio	> 50 dB
Noise Reduction	3D NR
Wide Dynamic Range	120 dB
Day & Night	Auto(ICR)/Color/B/W
Angle Adjustment	Pan: 0°-360°, Tilt: 0°-78°, Rotation: 0°-360°
Lens Type	Fixed-focal 2.8mm@F1.6
Iris Type	Fixed
Field of View	Horizontal: 111°, Vertical: 58°, Diagonal: 132°
Close Focus Range	1.5 m (4.92 ft)
DORI	Detect: 58.2m(190.94ft), Observe: 23.3 m(76.44ft), Recognize: 11.6 m(38.06ft), Identify: 5.8 m(19.03ft)
Illuminator	2 (IR LED), 1 (warm light), Support Smart Dual Light
Illumination Range	IR: Up to 30 m (98 ft) , Warm light: Up to 30 m (98 ft)
Illuminator Control	Auto/Manual/off
Video
Video Compression	H.265; H.264; MJPEG (Only supported by the sub stream)
Smart Codec	Supported
Resolution	8M (3840 x 2160), 6M (3072 x 2048), 5M (3072 x 1728/ 2880*1620), 4M (2688 x 1520), 3M (2304 x 1296/2048 x 1536), 1080p (1920 x 1080), 1.3M (1280 x 960), 720p (1280 x 720), D1 (704 x 576/ 704 x 480), VGA (640 x 480), CIF (352 x 288/352 x 240)
Video Frame Rate	Main stream: 3840 x 2160 @ (1 fps- 20 fps) Sub stream: 704 x 576 @ (1 fps- 25 fps), 704 x 480 @ (1 fps- 30 fps)
Video Stream	2 streams
Bit Rate Control	CBR, VBR
Video Bit Rate	H.264: 32 kbps–8192 kbps H.265: 12 kbps–8192 kbps
ROI	Supported (4 areas)
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 x 1520 resolution and lower.)
Mirror	Supported
Privacy Mask	Supported (4 areas)
Audio
Built-in MIC	Yes
Audio Compression	PCM, G.711a, G.711Mu,
Intelligent Analysis
VCA (Perimeter Protection)	Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human)
Event
Alarm Event	No SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, motion detection, video tampering, voltage detection, security exception, tripwire, intrusion, scene changing, audio detection, IMD
Network
Protocol	IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP,RTSP, RTMP, FTP, SFTP ,NAS, DHCP,DNS DDNS, QoS, UPnP, NTP , NFS, PPPoE, SMTP, 802.1x
Interoperability	ONVIF (Profile S & Profile G & Profile T); CGI
Storage	FTP, SFTP,Micro SD card (support max. 256 GB), NAS
Web Browser	Chrome, Firefox
Client	Pro-X
Interface
Network port	RJ-45 (10/100 Base-T)
General
Power	12V DC/PoE (802.3af)
Power Consumption	12 VDC: Max 8.4W, Typical 3.2W / PoE: Max 9.8W, Typical 4.3W
Housing	Inner core: Metal, Cover: Metal, Decoration ring: Plastic
Dimensions	Φ122.0mm x 104.7mm (Φ4.80" x 4.12")
Operating Conditions	-40°C to +60°C (-40°F to +140°F)/less than 95% RH
Storage Conditions	-40°C to +60°C (-40°F to +140°F)
Protection Grade	IP67
Net Weight	0.51 kg (1.1 lb)
Gross Weight	0.65 kg (1.4 lb)
Certification	FCC
