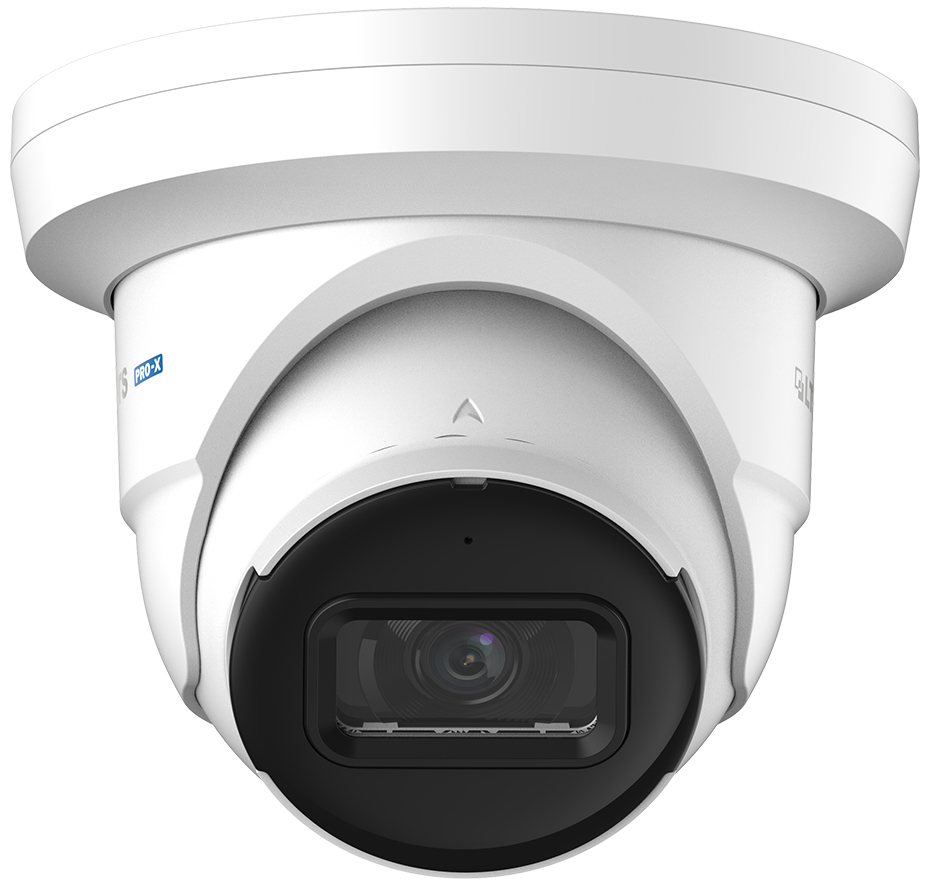

LXIP1142W-28MA LTS Pro-X, 4MP, IP, 2.8mm, fixed-lens, starlight turret, 120dB true WDR, 3D DNR, SD Card, Built-in Mic, POE power support, IP67

SKU#

:

LXIP1142W-28MA

Regular Price

:

$159.95

Sale Price

:

$109.95

You Save

$50.00(31.26% )

Availability

:

Usually ships the next business day

Quantity

:

LXIP1142W-28MA LTS Pro-X, 4MP, IP, 2.8mm, fixed-lens, starlight turret, 120dB true WDR, 3D DNR, SD Card, Built-in Mic, POE power support, IP67

Model	LXIP1142W-28MA
Camera
Image Sensor	1/3" 4Megapixel progressive CMOS
Min. Illumination	0.008 Lux @ F1.6 (Color, 30 IRE), 0 Lux with IR Light on
Shutter	Auto/Manual 1/3 s–1/100, 000 s
S/N Ratio	> 56 dB
Noise Reduction	3D NR
Wide Dynamic Range	120 dB
Day & Night	Auto(ICR)/Color/B/W
Angle Adjustment	Pan: 0°–360°, Tilt: 0°–78°, Rotation: 0°–360°
Lens Type	Fixed-focal 2.8mm@F1.6
Iris Type	Fixed
Field of View	Horizontal:102°, Vertical: 55°, Diagonal: 121°
Close Focus Range	0.9 m (2.95 ft)
DORI	Detect: 56.0m(183.73ft) , Observe: 22.4 m(73.49ft) , Recognize: 11.2 m(36.75ft), Identify: 5.6 m(18.37ft)
Illuminator	2 (IR LED)
Illumination Range	30 m (98.43 ft)
Illuminator Control	Auto/Manual
Video
Video Compression	H.265, H.264, H.264B, MJPEG(only supported by sub stream)
Smart Codec	Supported
Resolution	4M (2688 × 1520), 4MP (2560 × 1440), 3M (2304 × 1296), 1080p (1920 × 1080), 1.3M (1280 × 960), 720p (1280 × 720), D1 (704 × 576/704 × 480), VGA (640 × 480), CIF (352 × 288/352 × 240)
Video Frame Rate	Main stream: 2688 × 1520 @ (1 fps- 20 fps), 2560 × 1440 @ (1 fps- 30 fps) Sub stream: 704 × 576 @ (1 fps- 25 fps), 704 × 480 @ (1 fps- 30 fps)
Video Stream	2 streams
Bit Rate Control	CBR, VBR
Video Bit Rate	H.264: 32 kbps–6144 kbps, H.265: 12 kbps–6144 kbps
ROI	Supported (4 areas)
Image Rotation	0°/90°/180°/270° (Support 90°/270° with 2688 × 1520 resolution and lower.)
Mirror	Supported
Privacy Mask	Supported (4 areas)
Audio
Built-in Mic	Supported
Audio Compression	G.711A, G.711Mu, G.726
Event
MD	Tripwire, intrusion
Alarm event	No SD card, SD card full, SD card error, network disconnection, IP conflict, motion detection, video tampering, tripwire, intrusion, illegal access, voltage detection, audio detection, safety exception
Network
Protocol	IPv4, IPv6, HTTP, TCP, UDP, ARP, RTP , RTSP, RTCP, RTMP, SMTP, FTP, SFTP, DHCP, DNS, DDNS, QoS, UPnP, NTP, Multicast, ICMP, IGMP, NFS, PPPoE, Bonjour
Interoperability	ONVIF(Profile S/Profile G/Profile T), API, P2P
Storage	FTP, SFTP, Micro SD Card (support max. 256 G), NAS
Web Browser	IE, Chrome, Firefox
Client	PRO-X, X Station
Interface
Network	RJ-45 (10/100 Base-T)
General
Power	12V DC/PoE (802.3af), <6.6W
Housing	Aluminum alloy body, except for trim ring
Dimensions	105.4 mm × Φ122.0 mm (4.15" × Φ4.8")
Operating Conditions	-40°C to +60°C (-40°F to +140°F)/less than 95%
Storage Conditions	-40°C to +60°C (-40°F to +140°F)
Protection Grade	IP67
Net Weight	0.52 kg (1.1lb)
Gross Weight	0.66 kg (1.5lb)
Certification	FCC
