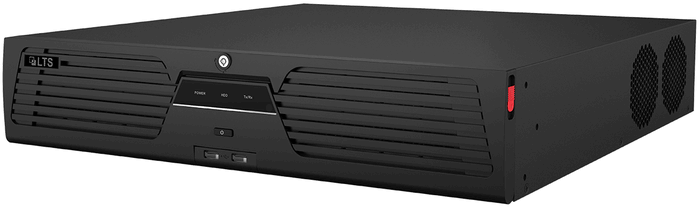

LTN8964-RN LTS Platinum, NVR-P 64ch 400Mbps Dual-Gb/CMS/RAID/8XHDD/UL Listed, RAID 0,1,5,6,10 /Max 8HDDx16TB / 2U case, Hot-Swap

SKU#

:

LTN8964-RN

Regular Price

:

$2100

Sale Price

:

$1699.95

You Save

$400.05(19.05% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

LTN8964-RN LTS Platinum, NVR-P 64ch 400Mbps Dual-Gb/CMS/RAID/8XHDD/UL Listed, RAID 0,1,5,6,10 /Max 8HDDx16TB / 2U case, Hot-Swap

Model	LTN8964-RN
Video and Audio
IP Video Input	64 channels
Incoming Bandwidth	400 Mbps
Outgoing Bandwidth	400 Mbps
HDMI 1 Output	8K: 7680 x 4320 / 30 Hz 4K: 3840 x 2160 / 60 Hz, 3840 x 2160 / 30 Hz 2K: 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 / 60 Hz
HDMI 2 Output	4K: 3840 x 2160 / 60 Hz, 3840 x 2160 / 30 Hz 2K: 2560 x 1440, 1920 x 1080, 1600 x 1200, 1280 x 1024, 1280 x 720, 1024 x 768 / 60 Hz Note: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p.
VGA 1 Output	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 / 60 Hz
VGA 2 Output	1920 x 1080, 1280 x 1024, 1280 x 720, 1024 x 768 / 60 Hz
Video Output Mode	HDMI 1 and VGA 1 provide simultaneous video output, and work as the main output; HDMI 2 and VGA 2 provide simultaneous video output, and work as the auxiliary output
CVBS Output	1 ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
Audio Output	2 ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1 ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Formats	H.265+ / H.265 / H.264+ / H.264
Recording Resolutions	3, 4, 5, 6, 7, 8, 12, 24, 32 MP / 1080p / UXGA / 720p
Synchronous playback	16-channel
Decoding Capability	2 ch @ 32 MP (30 fps) / 8 ch @ 8 MP (30 fps) / 16 ch @ 4 MP (30 fps) / 32 ch @ 1080p (30 fps)
Audio Compression	G.711 ulaw / G.711 alaw / G.722 / G.726 / AAC / MP2L2 / PCM
Network
Network Protocols	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SMTP, SNMP, NFS, UPnP�, HTTP, HTTPS
Network Interface	2 x RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
RAID
RAID Type	RAID0, RAID1, RAID5, RAID6, RAID10
Auxiliary Interface
Serial Interface	1 RS-485 (full-duplex), 1 RS-232
SATA	8 x SATA interfaces
eSATA	1 x eSATA interface
Capacity	Up to 16 TB capacity for each disk
Alarm In / Out	16 / 9
USB Interface	Front panel: 2 x USB 2.0; Rear panel: 2 x USB 3.0
Ctrl 12V	Controllable 12 VDC, 1 A power output for external alarm device; power will be turned on when the alarm output is triggered. Note: The Ctrl 12V power is controlled by alarm output 9.
12 VDC	12 VDC, 1 A power output
General
Power Supply	100 to 240 VAC, 50 to 60 Hz
Consumption	≤ 50 W (without HDD)
Operating Temperature	14° to 131° F (-10° to 55° C)
Operating Humidity	10 to 90%
Chassis	2U chassis
Dimensions (W x D x H)	17.5 x 18.3 x 3.7 in. (445 x 465 x 93 mm)
Weight	≤ 22 lbs (10 kg)
Certifications
Obtained Certification	CE, FCC
FCC	Part 15 Subpart B, ANSI C63.4-2014
CE	EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
