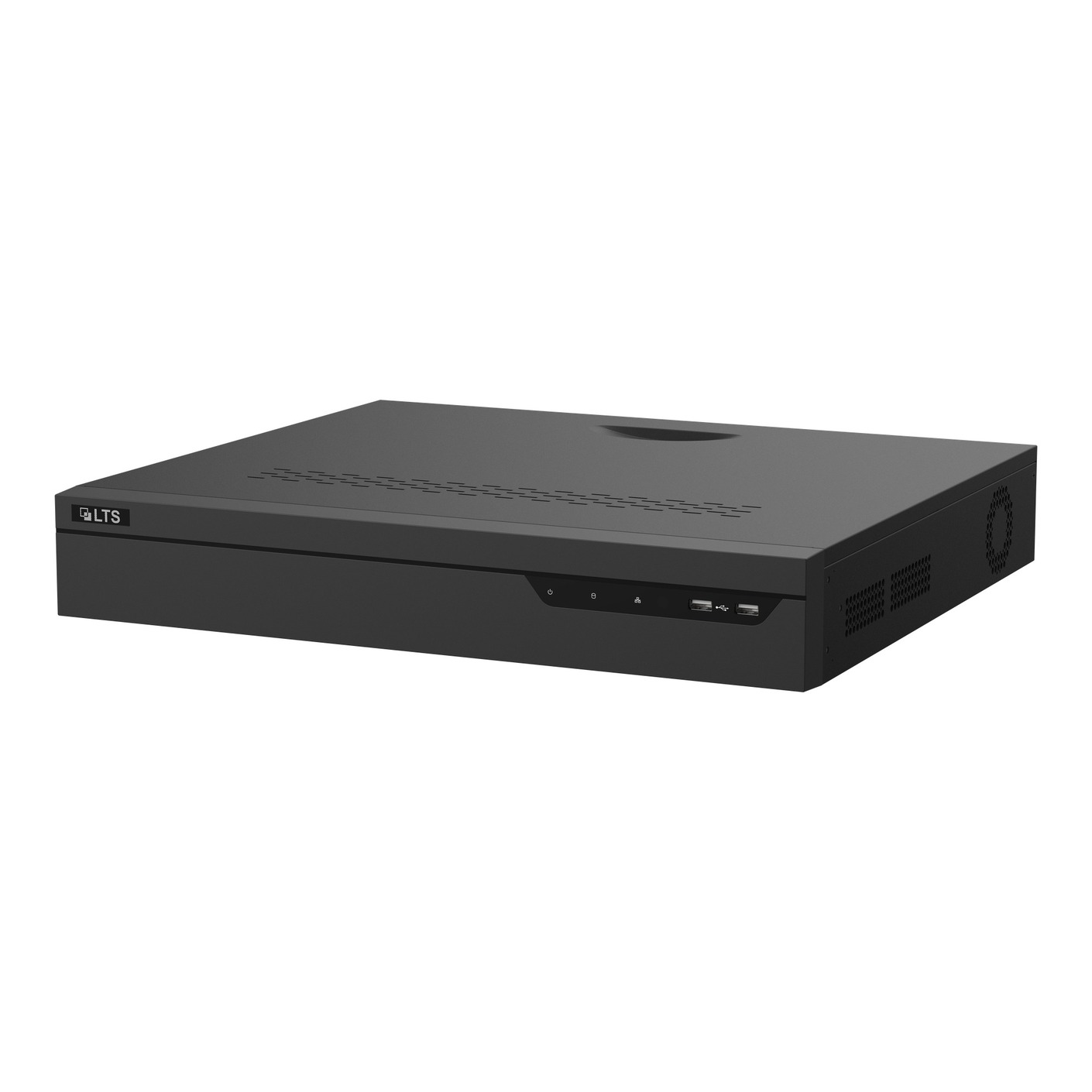

LTS LTN8932EDV-P16 32CH 16 PoE 1.5U DeepVision Network Video Recorder with MD 2.0 - Human and Vehicle Detection

SKU#

:

LTN8932EDV-P16

Regular Price

:

$1940

Sale Price

:

$1493.7

You Save

$446.30(23.01% )

Availability

:

Usually ships the next business day

HDD1

:

HDD2

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

The LTS LTN8932EDV-P16 32CH 16 PoE 1.5U DeepVision Network Video Recorder with MD 2.0 - Human and Vehicle Detection is built for larger sites that need plug & play PoE plus AI search. It supports up to 32 IP cameras with 16 built-in PoE ports, H.265/H.265+/H.264/H.264+ video formats and up to 256 Mbps incoming bandwidth, with decoding of up to 4-ch@12 MP, 6-ch@8 MP, 12-ch@4 MP or 24-ch@1080p. DeepVision, Direct Search, Motion Detection 2.0 and perimeter protection reduce false alarms and speed playback. Four SATA bays support up to 16 TB each.

Model	LTN8932EDV-P16
Recorder Series	Platinum Series
Recorder Channel	32-Channel
Recorder Case	1.5U Case
Recorder Technology	IP / NVR
Intelligent Analytics
AI by NVR	Facial recognition, perimeter protection, motion detection 2.0, Direct Search, DeepVision
AI by Camera	Facial recognition, perimeter protection, motion detection 2.0, ANPR, VCA
Direct Search
By Camera	All channels (the camera should enable Direct Search function)
DeepVision
Performance	If the cameras support MD2.0 Technology and have enabled Direct Search function, the NVR supports DeepVision in all channels, capable of modeling 50,000 targets/day.
Search Language	English
Facial Recognition
Facial Detection and Analytics	Face picture comparison, human face capture, face picture search
Facial Detection and Analytics Performance	Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch
Face Picture Comparison	8-ch
Face Picture Library	Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 800 MB)
Motion Detection 2.0
By NVR	All channels, up to 4 MP (when enhanced SVC mode is enabled, up to 8 MP) video analysis for human and vehicle recognition to reduce false alarm
By Camera	All channels
Perimeter Protection
By NVR	Video analysis (HD network camera, H.264/H.265) for human and vehicle recognition to reduce false alarm. Up to 4 MP: 2-ch; 8 MP to 5 MP: 1-ch
By Camera	All channels
Video and Audio
IP Video Input	32-ch
IP Speaker Input	4-ch
Incoming Bandwidth	256 Mbps
Outgoing Bandwidth	100 Mbps
Video Output Mode	HDMI/VGA independent output
HDMI Output	1-ch, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz, 1024 x 768/60 Hz
VGA Output	1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding Format	H.265/H.265+/H.264/H.264+
Recording Resolution	12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback	16-ch
Decoding Capability	AI on: 12-ch@1080p (30 fps) AI off: 24-ch@1080p (30 fps)
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726/AAC/MP2L2
Network
Remote Connection	128
API	ONVIF (profile S/G); SDK; ISAPI
Compatible Browser	IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version
Network Protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, IP Portal, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS
Network Interface	1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface	16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	≤ 200 W
Standard	IEEE 802.3af/at
Auxiliary Interface
SATA	4 SATA interfaces
Capacity	Up to 16 TB capacity for each HDD
Serial Interface	2 RS-485 (half-duplex), 1 RS-232
USB Interface	Front panel: 2 x USB 2.0; Rear panel: 1 x USB 3.0
Alarm In/Out	16/4
General
GUI Language	English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz, Brazilian Portuguese, Indonesian
Power Supply	100 to 240 VAC, 50 to 60 Hz
Consumption	≤ 50 W (without HDD)
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Dimension (W x D x H)	440 mm x 391 mm x 72 mm (17.32" x 15.39" x 2.81")
Weight	≤ 11 lb (without HDD, 5 kg.)
Certification
Obtained Certification	See manufacturer datasheet
