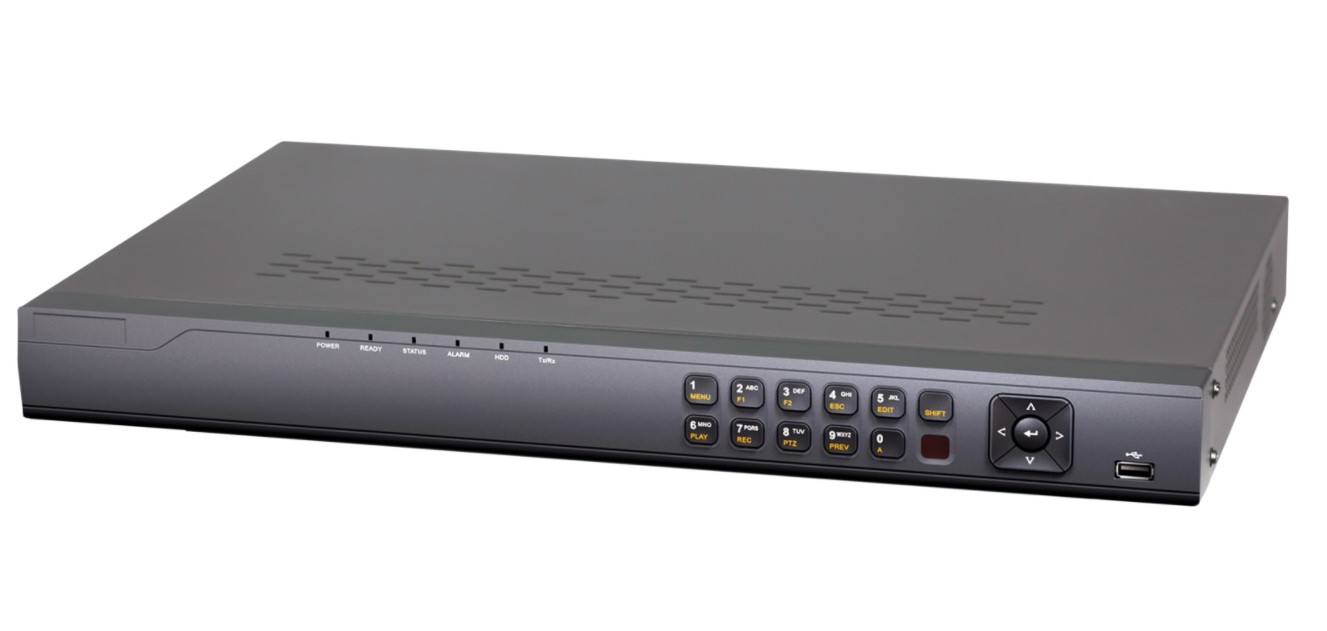

LTS LTN8716K-HT Platinum Advanced Level 16 Channel Hybrid NVR - 1U

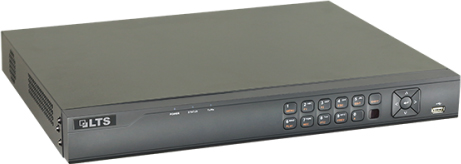

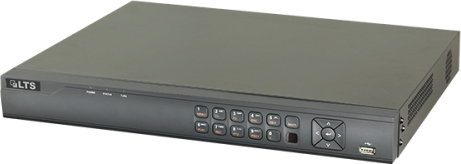

Additional View

LTS LTN8716K-HT Platinum Advanced Level 16 Channel Hybrid NVR - 1U

SKU#

:

LTN8716K-HT

Regular Price

:

$699.95

Sale Price

:

$479.95

You Save

$220.00(31.43% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

LTS LTN8716K-HT Platinum Advanced Level 16 Channel Hybrid NVR - 1U

Model	LTN8716K-HT
Recorder Series	Platinum Series
Recorder Channel	16-Channel
Recorder Case	1U Case
Recorder Technology	Hybrid NVR
Featured Product	No
Video/Audio Input
Video/Audio Input	H.265+/H.265/H.264 Zip+/H.264
Video Input	16CH
BNC interface (1.0 Vp-p, 75 O), supporting coaxition
Supported HDTVI input	8MP,5 MP, 4 MP, 3 MP, 1080p30, 1080p25, 720p60, 720p50, 720p30, 720 p25
Supported AHD input	1080p25, 1080p30, 720p25, 720p30
CVBS input	Support
IP Video Input	8CH, Up to 6 MP resolution, Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compression	G.711u
Audio input	4-ch, RCA (2.0 Vp-p, 1 kO)
Video/Audio Output
HDMI/ VGA output	VGA: 1 -c h , 1920 � 1080/60 Hz, 1280 � 1024/60 Hz, 1280 � 720/60 Hz, 1024 � 768/60 Hz HDMI: 1-ch, 4K(3840 � 2160)/30Hz, 2K(2560 � 1440)/60Hz, 1920� 1080/60Hz, 1280 � 1024/60Hz,
Encoding resolution	8MP/5 MP/4 MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
CVBS output	1-ch, BNC (1.0 Vp-p, 75 O), resolution: PAL: 704�576, NTSC: 704�480
Frame rate	Main stream: 8MP@8fps/5MP@12fps/4 MP@15fps/3 MP@18fps;1080p/720p/WD1/@25fps(P)/30fps(N)
Sub-stream: WD1/4CIF/CIF@25fps (P)/30 fps (N)
Video bit rate	32 Kbps -10 Mbps
Audio output	1-ch, RCA (Linear, 1 kO)
Audio bit rate	64 Kbps
Dual- stream	Support
Stream type	Video, Video & Audio
Synchronous playback	16ch
Network
Remote connections	128
Network protocols	TCP/IP, PPPoE, DHCP, PT Cloud, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP�, HTTPS, ONVIF
Hard Disk
SATA	2 SATA
Capacity	Up to 8TB capacity for each disk
External Interface
Network Interface	1, RJ45 10M / 100M self-adaptive Ethernet interface
Serial Interface	1; RS-485 serial interface, half-duplex
USB Port	Fr ont panel: 1 � USB 2.0; Rear panel: 1 � USB 3.0
Alarm In/Out	16/4
General
Power Supply	DC 12V
Consumption	= 25W
Working Temperature	-10 �C ~ +55 �C(14�F - 131�F)
Working Humidity	10% - 90%
Chassis	1U chassis
Dimension	380 � 320 � 45 mm (15.0 � 12.6 � 1.8 inch)
Weight	=2Kg (4.4lb)
