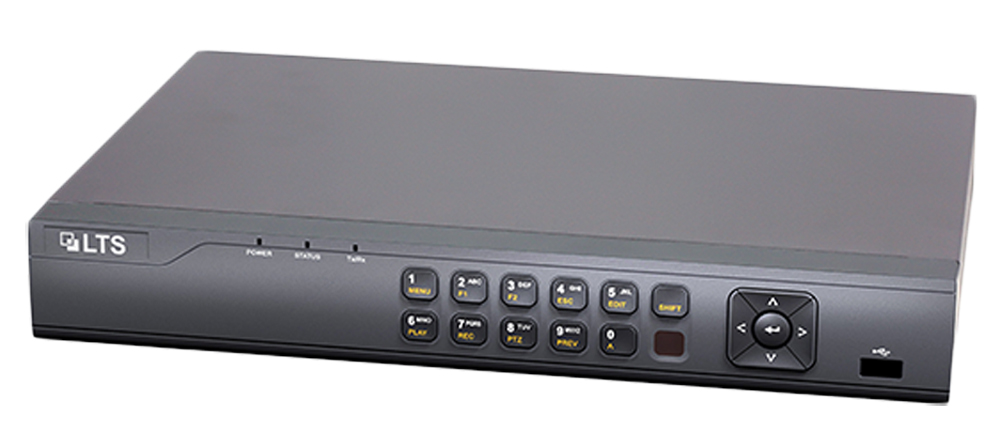

LTS LTN8704T-HT Platinum 4+4 Channel Hybrid NVR - Compact Case

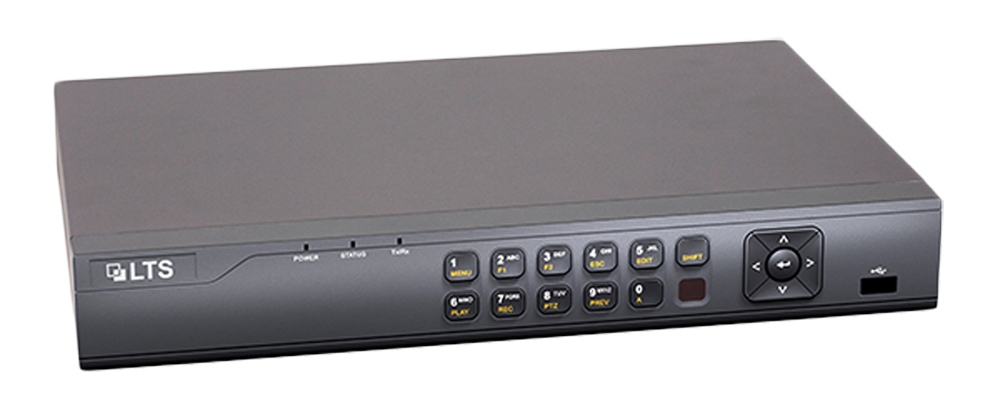

Additional View

LTS LTN8704T-HT Platinum 4+4 Channel Hybrid NVR - Compact Case

Model	LTN8704T-HT
Recorder Series	Platinum Series
Recorder Channel	4-Channel
Recorder Case	Compact Case
Recorder Technology	Hybrid NVR
Featured Product	No
Video/Audio Input
Video/Audio Input	H.264 Zip+ / H.264
Video Input	4-CH BNC interface (1.0 Vp-p, 75 Ω), supporting coaxition
Supported HDTVI input	3MP, 1080p/25Hz, 1080p/30Hz, 720p/60Hz, 720p/50Hz, 720p/30Hz, 720p/25Hz
Supported AHD input	720p/30Hz, 720p/25Hz
CVBS input	Support
IP input	4-ch(up to 8-ch)
Audio compression	G.711u
Audio input	4-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video/Audio Output
HDMI/ VGA output	1 -ch , 19 20 � 1080/60Hz, 1280 � 1024/60Hz, 1280 � 720/60Hz, 1024 � 768/60 Hz
Encoding resolution	3MP@15fps, 1080p/720p/WD1/4CIF/VGA/CIF
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704�576, NTSC: 704�480
Frame rate	Main stream: 30fps(N)/25fps(P) Sub-stream:WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCI F ( real time)
Video bit rate	32 Kbps-10 M bps
Audio output	1-ch, RCA (Linear, 1 kΩ)
Audio bit rate	64 Kbps
Dual- stream	Support
Stream type	Video, Video & Audio
Synchronous playback	4ch
Network
Remote connections	96Mbps
Network protocols	TCP/IP, PPPoE, DHCP, PT Cloud, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP�, HTTPS, ONVIF
Hard Disk
SATA	1 SATA
Capacity	Up to 6TB capacity for each disk

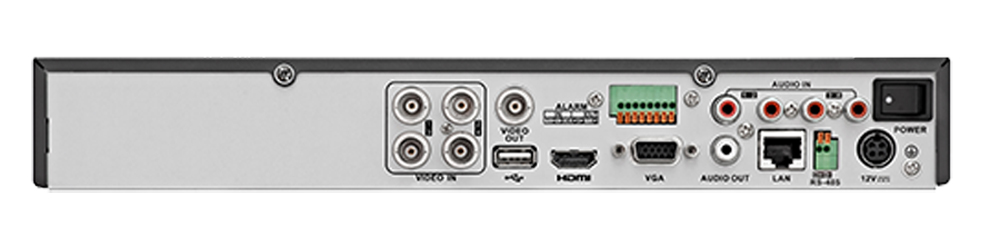

External Interface
Network Interface	1, RJ45 10M / 100Mself-adapt ive Ethernet interface
Serial Interface	1; RS-485 serial interface, half-duplex
USB Port	2 � USB2.0
Alarm In/Out	4/1
General
Power Supply	DC 12V
Consumption	≤ 15W
Working Temperature	-10 �C ~ +55 �C(14�F - 131�F)
Working Humidity	10% - 90%
Chassis	Compact Casing
Dimension	315 � 242 � 45 mm (12.4 � 9.5 � 1.8 inch)
Weight	≤2 Kg (4.4 lb)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

Additional View

LTS LTN8704T-HT Platinum 4+4 Channel Hybrid NVR - Compact Case

SKU#

:

LTN8704T-HT

Regular Price

:

$249.95

Sale Price

:

$189.95

You Save

$60.00(24.00% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:
