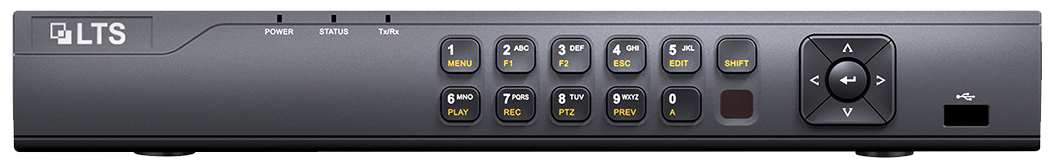

LTN8704QN-P4 LTS Platinum, NVR, 4CH, 40Mbps, 4xPoE, CMS/Audio/1xHDD/UL Listed, * Mini 1U case , Supports 1 SATA up to 8TB each

Call Toll Free 866-446-CCTV (2288) Mon-Fri 9am-6PM EST

0 Items $0.00

free shipping

to USA & CANADA

orders $500 and up

Click For Details

Search Product

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

One year warranty on all products

Home

IP Cameras and Network Video Recorders NVRs

IP Cameras and NVR's by LTS

LTS Platinum Series IP NVR's - Older and Discontinued Products

H.265 / H.265+ Ultra HD 4K Resolution NVRs by LTS Platinum Series

LTN8704QN-P4 LTS Platinum, NVR, 4CH, 40Mbps, 4xPoE, CMS/Audio/1xHDD/UL Listed, * Mini 1U case , Supports 1 SATA up to 8TB each

SKU#

:

LTN8704QN-P4

Regular Price

:

$265

Sale Price

:

$179.95

You Save

$85.05(32.09% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

LTN8704QN-P4 LTS Platinum, NVR, 4CH, 40Mbps, 4xPoE, CMS/Audio/1xHDD/UL Listed, * Mini 1U case , Supports 1 SATA up to 8TB each

Model	LTN8704QN-P4
Video and Audio
IP video input	4-ch Up to 8 MP resolution
Incoming bandwidth	40 Mbps
Outgoing bandwidth	80 Mbps
HDMI output	1-ch, 4K (4096 x 2160)/30 Hz, 4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1600 x 1200/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
VGA output	1-ch, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60 Hz
Video output mode	HDMI/VGA simultaneous output
CVBS output	N/A
Audio output	1-ch, RCA (Linear, 1 KΩ)
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding
Decoding format	H.265+/H.265/H.264+/H.264
Recording resolution	8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback	4-ch
Capability	1-ch@8 MP (30 fps)/5-ch@1080p (30 fps)
Stream type	Video, Video & Audio
Audio compression	G.711ulaw/G.711alaw/G.722/G.726
Network
Remote connection	16
Network protocol	TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP�, HTTP, HTTPS
Network interface	1, RJ-45 10/100 Mbps self-adaptive Ethernet interface
PoE
Interface	4, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	≤ 50 W
Supported standard	IEEE 802.3 af/at
Auxiliary Interface
SATA	1 SATA interface
Capacity	Up to 8 TB capacity for each disk
Alarm in/out�	N/A (4/1 is optional)
USB interface	Front panel: 1 x USB 2.0; Rear panel: 1 x USB 2.0
General
Power supply	48 VDC, 1.35 A
Consumption (without HDD and PoE off)	≤ 10 W
Working temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working humidity	10% to 90%
Dimension (W x D x H)	320 x 240 x 48 mm (12.4" x 9.4" x 1.9")
Weight (without HDD)	≤ 1 kg (2.2 lb)
Certification
FCC	Part 15 Subpart B, ANSI C63.4-2014
CE	EN 55032: 2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4, EN 55035: 2017
