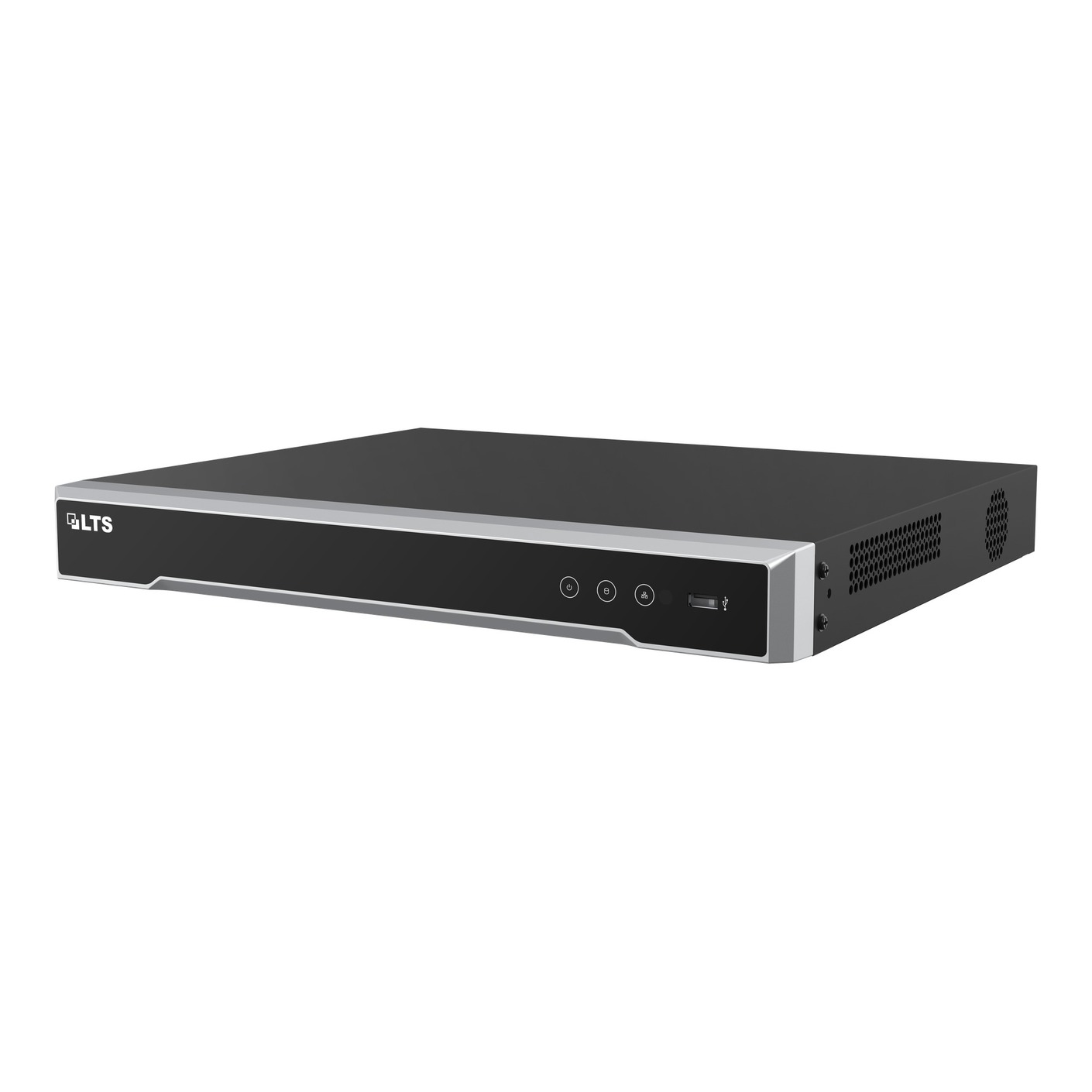

LTS LTN8616DV-P16 Platinum Plus 16CH PoE 4K DeepVision Network Video Recorder with Semantic Search

SKU#

:

LTN8616DV-P16

Regular Price

:

$1435

Sale Price

:

$1102.8

You Save

$332.20(23.15% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

The LTS LTN8616DV-P16 Platinum Plus 16CH PoE 4K DeepVision Network Video Recorder with Semantic Search is built for mid-size AI surveillance. It supports up to 16 IP cameras with 16 independent PoE ports, H.265+/H.265/H.264+/H.264 video formats, up to 192 Mbps incoming bandwidth and HDMI output up to 4K. DeepVision and Direct Search (up to 300,000 targets/day with capable cameras) plus facial recognition accelerate investigations. Two SATA bays support up to 20 TB each.

Model	LTN8616DV-P16
Recorder Series	Platinum Plus Series
Recorder Channel	16-Channel
Recorder Case	1U Case
Recorder Technology	IP / NVR
Intelligent Analytics
AI by NVR	Facial recognition (* cannot be used simultaneously with Direct Search or DeepVision)
AI by Camera	Facial recognition, perimeter protection, video structuralization, Direct Search, motion detection 2.0, ANPR, people counting, DeepVision
Engine	2 engines. 1 is for face picture and Direct Search. 1 is for DeepVision
Facial Recognition
Face Picture Library	Up to 16 face picture libraries, with up to 50,000 face pictures in total (each picture ≤ 512 KB, total capacity ≤ 1 GB)
Face Picture Comparison by Camera	MAX 8-ch, require a compatible face capture camera
Facial Recognition Capabilities	Face picture comparison, human face capture, face picture search
Facial Recognition and Analytics Performance by NVR	MAX 4-ch human face capture (HD network camera, up to 8 MP, H.264/H.265)
Direct Search
Performance	If Direct Search�capable cameras are connected and the Direct Search function is enabled, the NVR supports Direct Search across all channels and can model up to 300,000 targets per day.
DeepVision
Performance	If the cameras support VCA2.0 or above Technology and have enabled Direct Search function, the NVR supports DeepVision in all channels, capable of modeling 300,000 targets/day.
Search Language	English
ANPR
By Camera	All channels
Vehicle Attributes	Plate number, license plate color, license plate type
Plate Attributes	Vehicle brand, vehicle color, vehicle type
Video and Audio
IP Video Input	16-ch
Incoming Bandwidth	192 Mbps
Outgoing Bandwidth	256 Mbps
Video Output Mode	HDMI/VGA independent output
HDMI Output	4K (3840 x 2160)/30 Hz, 2K (2560 x 1440)/60 Hz, 1920 x 1080/60 Hz, 1280 x 720/60 Hz
VGA Output	1920 x 1080/60 Hz, 1280 x 720/60 Hz
Audio Output	1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Decoding
Decoding Format	H.265/H.265+/H.264/H.264+/MPEG4
Recording Resolution	32 MP/24 MP/12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous playback	16-ch
Decoding Capability	Enable AI by NVR: up to 10-ch@4 MP (30 fps) Disable AI by NVR: up to 16-ch@4 MP (30 fps)
Stream Type	Video, Video & Audio
Audio Compression	G.711ulaw/G.711alaw/G.722/G.726/MP2L2
Network
Network Interface	1, RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
PoE
Interface	16, RJ-45 10/100 Mbps self-adaptive Ethernet interface
Power	≤ 200 W
Standard	IEEE 802.3af/at
Auxiliary Interface
SATA	2 SATA interfaces
Capacity	Up to 20 TB capacity for each disk
USB Interface	Front panel: 1 x USB 2.0; Rear panel: 1 x USB 3.0
Alarm In/Out	4/1
General
Chassis	1U
Power Supply	≤ 180 W
Consumption	≤ 50 W
Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	10% to 90%
Dimension (W x D x H)	384 mm x 371 mm x 52 mm (15.12" x 12.48" x 2.03")
Weight	≤ 4 kg (6.6 lb)
Certification
CE	EN 55032:2015, EN 61000-3-2, EN 61000-3-3, EN 50130-4
Obtained Certification	CE, CB, REACH, WEEE, UKCA, RCM, IC, LOA, KC
