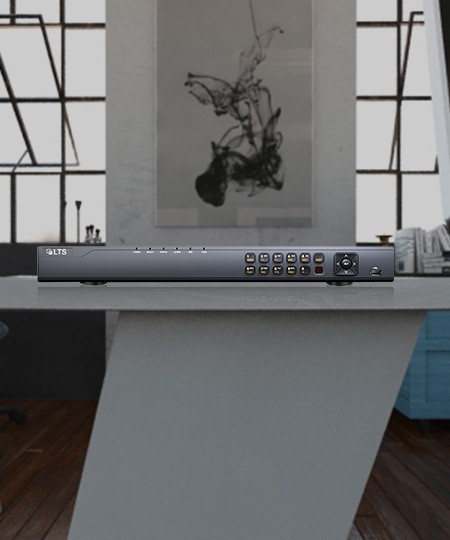

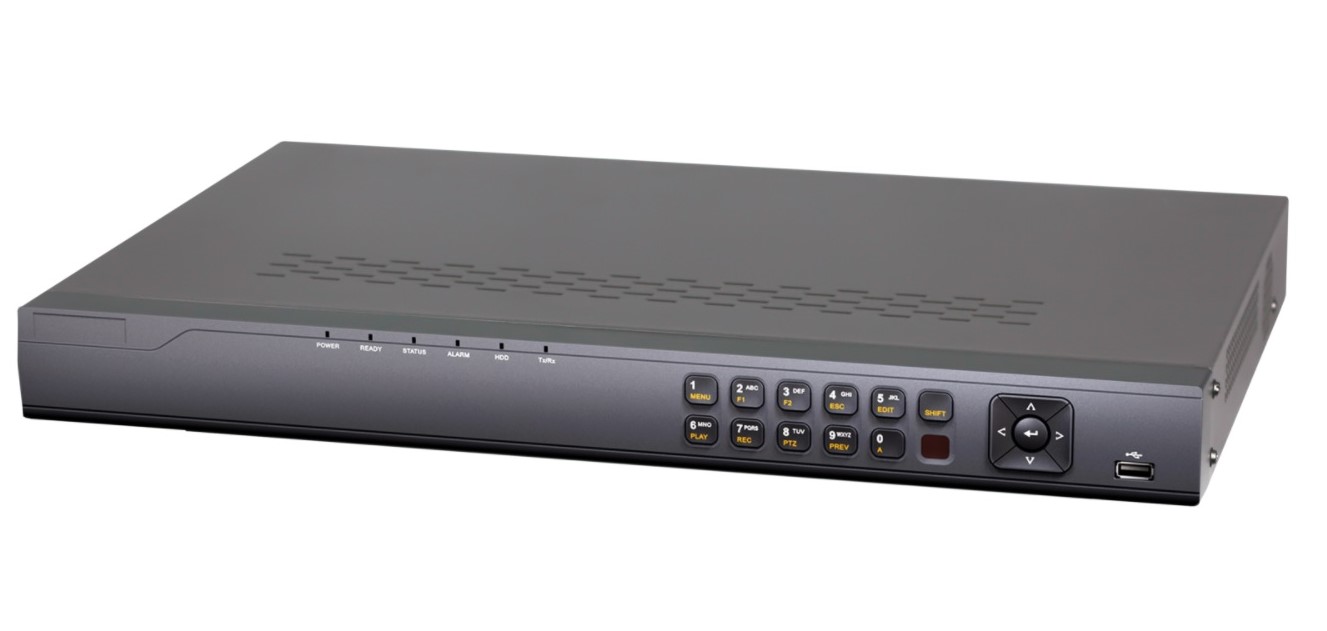

LTS LTN8616D-P16 Platinum 16 Channel 4K Deep Learning NVR 1U

Model	LTN8616D-P16
Recorder Series	Platinum Series
Recorder Channel	16-Channel
Recorder Case	1U Case
Recorder Technology	IP / NVR
Featured Product	No
Video/Audio Input
IP Video Input	16-CH, Up to 12MP Resolution
Two-Way Audio Input	1-CH, RCA (2.0 Vp-p, 1kO)
Network
Incoming Bandwidth	160Mbps
Outgoing Bandwidth	256Mbps
Remote Connection	128
Video/Audio Output
Recording Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
HDMI Output	4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 1920 × 1080p/60Hz, 1600 ×1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
VGA Output	1-ch, resolution: 1920 × 1080p/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
CVBS Output	1-ch
Audio Output	1-CH, RCA (Linear, 1kO)
Decoding
Live View/ Playback Resolution	12MP/8MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	16-CH
Capability	4-ch @ 4K, or 16-ch @1080p
Hard Disk
SATA	2 SATA Interfaces for 2 HDDs
Capacity	Up to 8TB for Each Disk
External Interface
Network Interface	1 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
USB Interface	Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out	1-Apr
PoE
Interface	16 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interface
Max. Power	=200W
Supported Standard	IEEE 802.3 af/at
General
Power Supply	100~240V AC
Consumption	=15W
Working Temperature	+14ºF ~ +131 ºF(-10ºC ~ +55ºC)
Working Humidity	10% - 90%
Casing	19-Inch Rack-Mounted 1U Casing
Dimension	380 × 315× 52 mm (15" × 12.4" × 2.0")
Weight	=8.8lb (4Kg)
