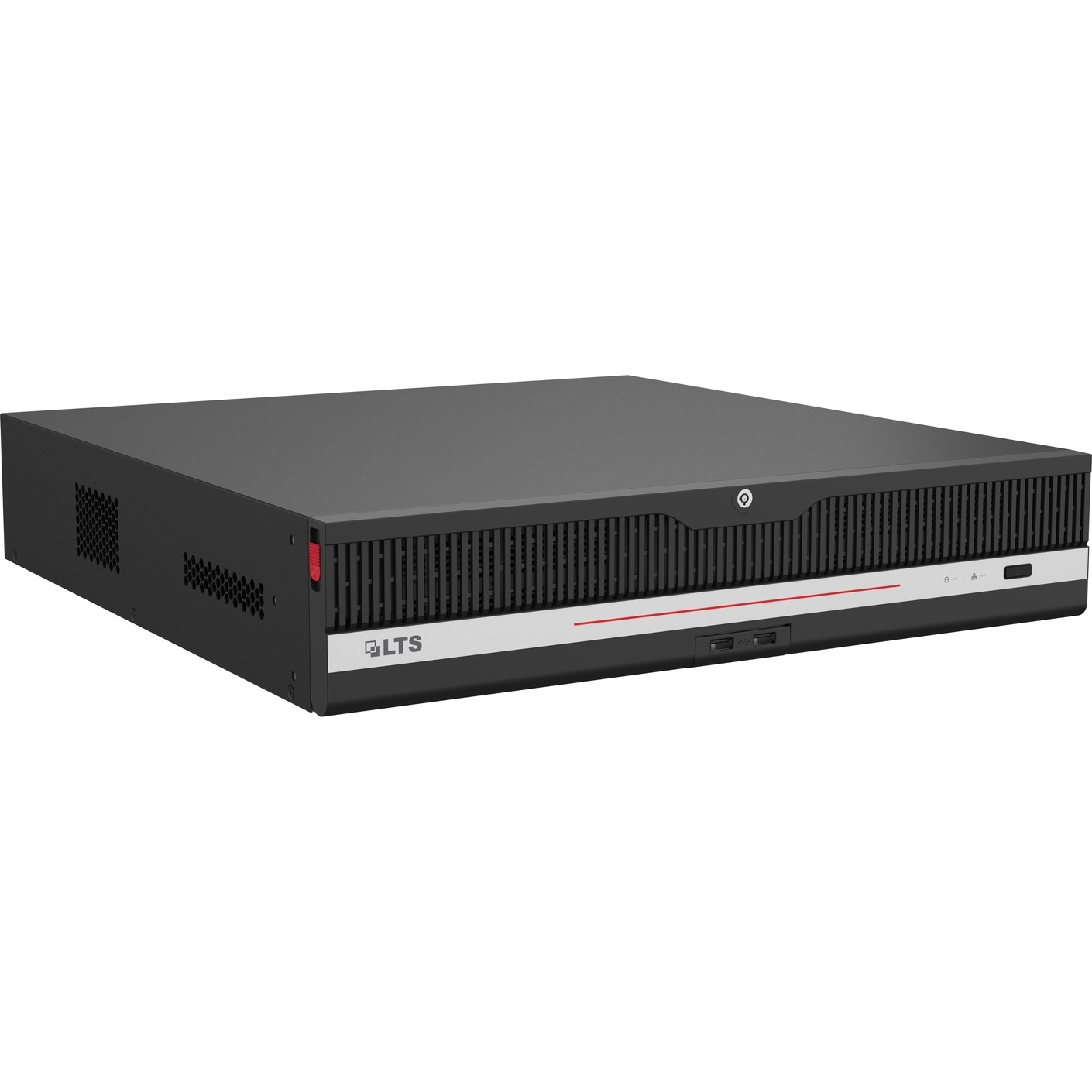

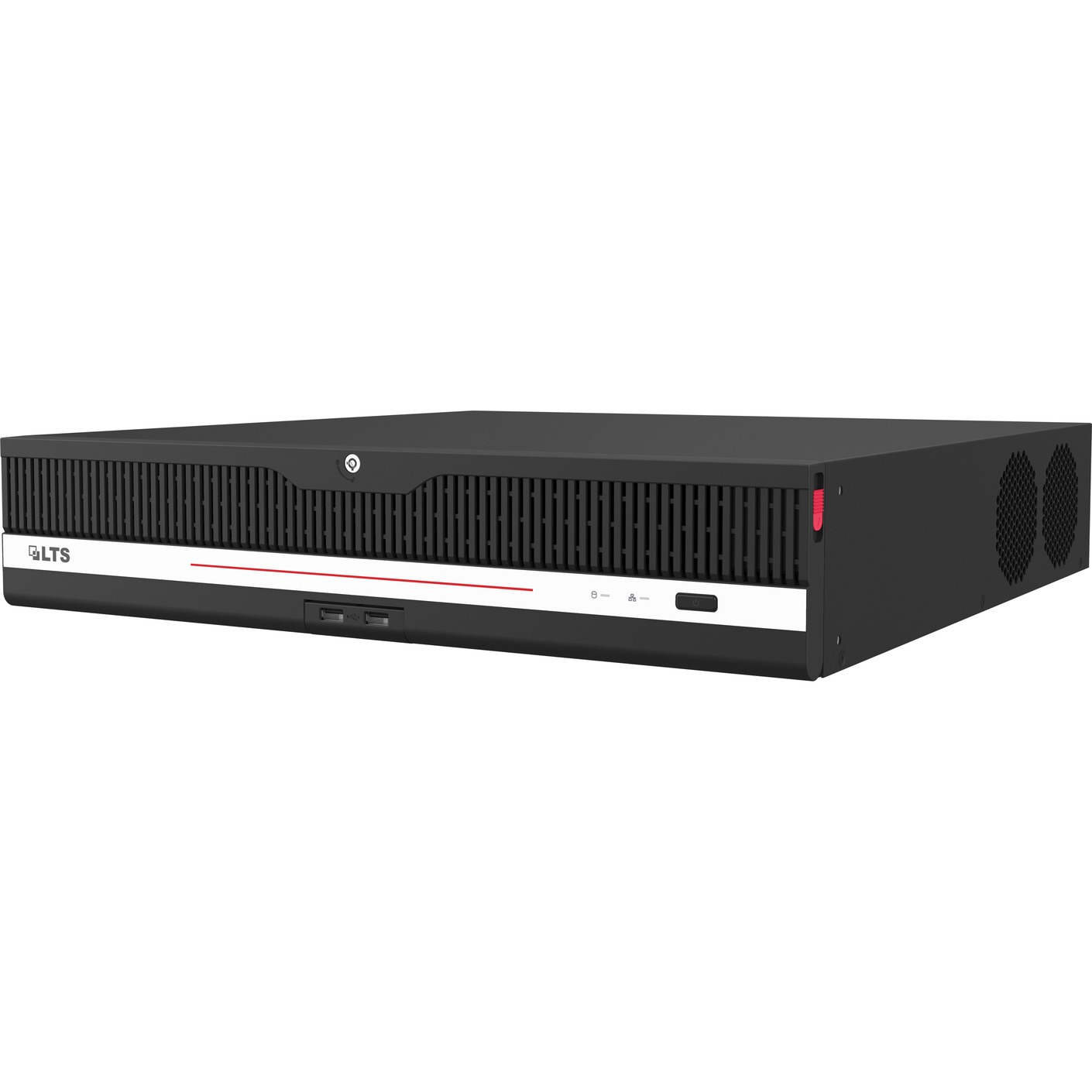

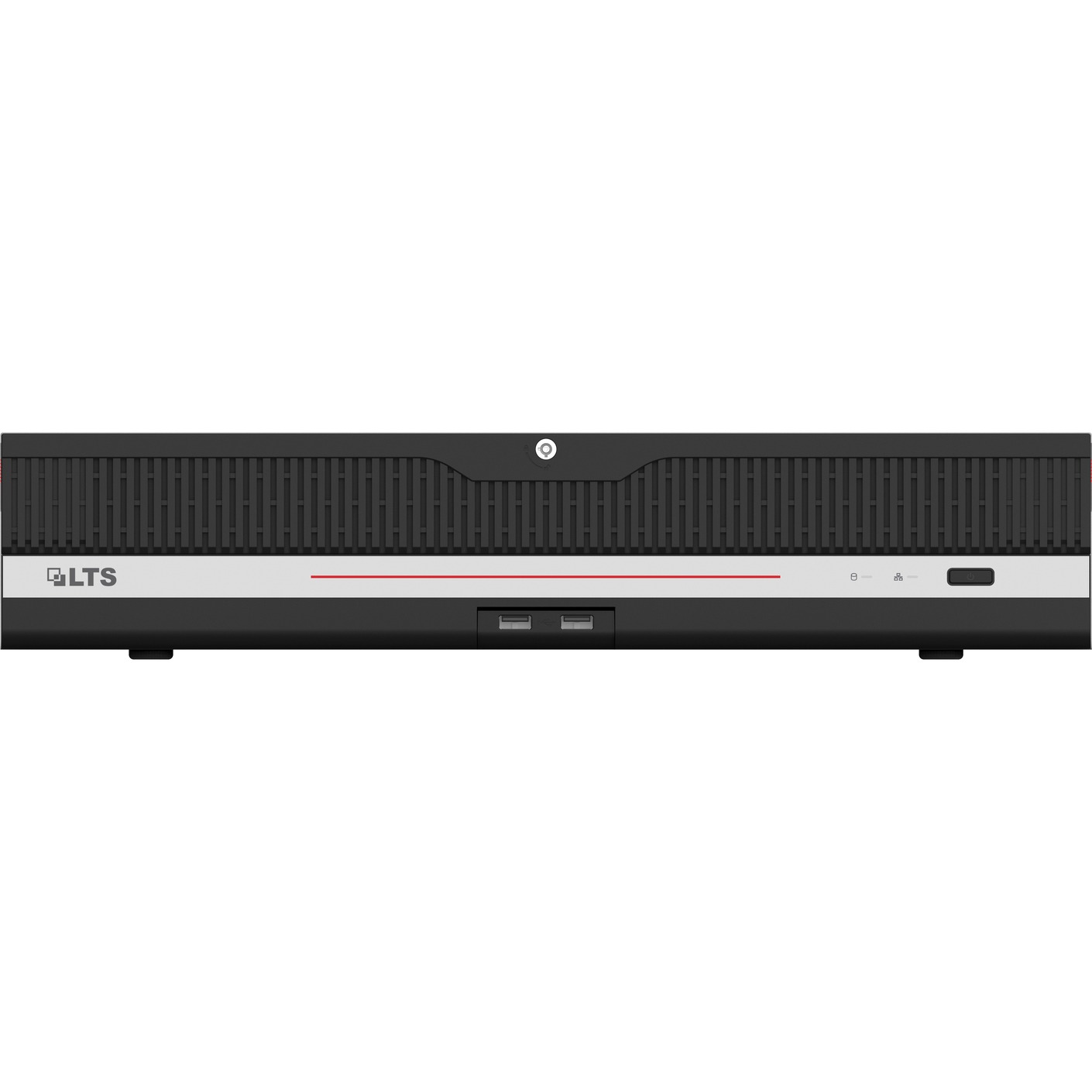

LTS LTN8064D-R Platinum Plus 64CH 8K Network Video Recorder RAID 8 SATA

Additional View

LTS LTN8064D-R Platinum Plus 64CH 8K Network Video Recorder RAID 8 SATA

SKU#

:

LTN8064D-R

Regular Price

:

$3490

Sale Price

:

$2682.9

You Save

$807.10(23.13% )

Availability

:

Usually ships the next business day

HDD1

:

HDD2

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

LTS LTN8064D-R - 64 IP channels up to 32MP, 1280 Mbps, 8 SATA up to 20TB each, RAID 0/1/5/6/10, 8K HDMI, facial recognition, perimeter protection, Direct Search, redundant power.

Intelligent Analytics
AI by NVR	Facial recognition, perimeter protection, video structuralization Facial recognition, perimeter protection, video structuralization, Direct Search, motion
AI by Camera	detection2.0, ANPR, people counting, VCA
Facial Recognition
Facial Detection and Analytics	Face picture comparison, human face capture, face picture search Up to 64 face picture libraries, up to 300,000 face pictures in list library (each picture ≤
Face Picture Library	4 MB, total capacity ≤ 10 GB)
Face Picture Comparison	16-ch
(Captured from Camera)	Comparison speed: 24 pictures per second
Facial Detection and Analytics	Simultaneous mode: 8-ch, up to 2 MP
Performance	independent mode: 4-ch, up to 2 MP.
Direct Search	All channels, up to 345,600 targets per day
By Camera	Note: The camera should enable Direct Search function.
Perimeter Protection	Simultaneous mode: 8-ch, up to 2 MP
By NVR	independent mode: 4-ch, up to 2 MP.
By Camera	All channels
Video Structuralization	Simultaneous mode: 8-ch, up to 2 MP
Structured Analysis	independent mode: 4-ch, up to 2 MP. Up to 64 face picture libraries, up to 300,000 face pictures in list library (each picture ≤
Face Picture Library	4 MB, total capacity ≤ 10 GB) 16-ch;
Face Picture Comparison	Comparison speed: 24 pictures per second
Video and Audio	64-ch
IP Video Input	Up to 32 MP resolution
Incoming Bandwidth	1280 Mbps
Outgoing Bandwidth	1024 Mbps
Incoming Bandwidth (RAID	640 Mbps
Mode)
Outgoing Bandwidth (RAID	512 Mbps
mode)	4K (4096 � 2160)/30 Hz, 4K (3840 � 2160)/60 Hz, 4K (3840 � 2160)/30 Hz, 2K (2560 �
HDMI 1 Output	1440)/60 Hz, 1080P (1920 � 1080)/60 Hz 4K (4096 � 2160)/30 Hz, 4K (3840 � 2160)/60 Hz, 4K (3840 � 2160)/30 Hz, 2K (2560 �
HDMI 2 Output	1440)/60 Hz, 1080P (1920 � 1080)/60 Hz 8K (7680 � 4320)/30 Hz, 4K (4096 � 2160)/30 Hz, 4K (3840 � 2160)/60 Hz, 4K (3840 �
HDMI 3 Output	2160)/30 Hz, 2K (2560 � 1440)/60 Hz, 1080P (1920 � 1080)/60 Hz
HDMI 4 Output	1080P (1920 � 1080)/60 Hz
VGA 1 Output	1080P (1920 � 1080)/60 Hz
VGA 2 Output	1080P (1920 � 1080)/60 Hz Mode 1 (default output mode): simultaneous output with 1080p resolution; Mode 2 (simultaneous output): HDMI 1, VGA 1, HDMI 2, VGA 2, HDMI 3, and HDMI 4 provide simultaneous output, the maximum resolution for VGA 1/VGA 2/HDMI 4 is 1080p, the maximum resolution for HDMI 1/HDMI 2/HDMI 3 is 4K; Mode 3 (independent output and 8K HDMI 3 output resolution): HDMI 1/VGA 1/HDMI
Video Output Mode	2/VGA 2, HDMI 3, and HDMI 4 provide independent output respectively. The maximum resolution is 8K + 4K + 1080p; Mode 4 (independent output and HDMI 3 output resolution ≤ 4K): HDMI 1/VGA 1, HDMI 2/VGA 2, HDMI 3, and HDMI 4 provide independent output respectively. The maximum resolution is 4K + 4K + 4K + 1080p.
HDMI Input	1-ch
HDMI Loopback	1-ch (matching the HDMI input)
Audio Output	2-ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
Decoding Format	H.265/H.265+/H.264/H.264+ 2-ch@32 MP (30 fps)/2-ch@24 MP (30fps)/4-ch@16 MP (30fps)/8-ch@8 MP
Decoding Capability	(30fps)/16-ch@4 MP (30fps)/32-ch@2 MP (30fps)
Synchronous Playback	16-ch 32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA
Recording Resolution	/4CIF/DCIF/ 2CIF/CIF/QCIF
Network
Remote Connection	128 TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, IP Portal, SMTP, SNMP, NFS, iSCSI,
Network Protocol	ISUP, UPnP�, HTTP, HTTPS, ONVIF (version 2.2), OTAP
API	ONVIF (profile S/T); SDK; ISAPI
Compatible Browser	IE11, Chrome V57, Firefox V52, Safari V12, Edge V89, or above version 4, RJ-45 10/100/1000/2500 Mbps self-adaptive Ethernet interface
Network Interface	2, SFP 1000 Mbps Optical Port
Camera Access Protocol	ONVIF (version 2.5), RTSP
RAID
RAID Type	RAID 0, RAID 1, RAID 5, RAID 6, RAID 10
Auxiliary Interface
SATA	8 SATA interfaces; 3.5-inch HDD
eSATA	1 eSATA interface
Capacity	Up to 20 TB capacity for each HDD
Serial Interface	1 RS-232, 2 RS-485 (half-duplex)
USB Interface	Front panel: 2 � USB 2.0; Rear panel: 4 � USB 3.0
Alarm In/Out	16/8
General	English, Russian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Turkish, Japanese, Danish, Swedish
GUI Language	Language, Norwegian, Finnish, Korean, Traditional Chinese, Thai, Estonian, Vietnamese, Croatian, Slovenian, Serbian, Latvian, Lithuanian, Uzbek, Kazakh, Arabic, Ukrainian, Kyrgyz , Brazilian Portuguese, Indonesian
Power Supply	100 to 240 VAC, 50 to 60 Hz
Consumption	≤ 50 W (without HDD)
Working Temperature	-10 to 55�C (14 to 131� F)
Working Humidity	10 to 90%
Dimension (W � D � H)	17.4 � 18.1 � 3.5 inch (442 mm � 460 mm � 88 mm)
Weight	≤ 28.7 lb (without HDD, 10 kg.)
Certification
Obtained Certification	CE, IC, CB, Rohs, Reach, WEEE, RCM, UKCA, LOA EN 55032:2015+A1:2020, ENIEC61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:201
CE	9, EN 50130-4:2011+A1:2014, EN 55035:2017+A11:2020
