LTS LTN7732-P16 32 Channel NVR with built-in 16 Ch PoE Switch
LTS LTN7732-P16 32 Channel NVR with built-in 16 Ch PoE Switch
LTS LTN7732-P16 32 Channel NVR with built-in 16 Ch PoE Switch
SKU#
:
LTN7732-P16
Regular Price
:
$
899.95
Sale Price
:
$
799.95
You Save
$100.00(11.11% )
Availability
:
Contact us for availability
Hard Drive
:
No Hard Drive (not recommended)
500GB Sata AV Hard Drive (+89.95)
1TB Sata AV Hard Drive (+99.95)
2TB Sata AV Hard Drive (+139.95)
3TB Sata AV Hard Drive (+189.95)
4TB Sata AV Hard Drive (+209.95)
6TB Sata AV Hard Drive (+379.95)
8TB Sata AV Hard Drive (+459.95)
12TB Sata AV Hard Drive (+699.95)
16TB Sata AV Hard Drive (+949.95)
DVD Burner
:
Not Included
Multi DVD/CD RW Burner (+34.95)
Warranty
:
1 Year Manufacturer Warranty Included
2 Year Extended Warranty (+89.95)
3 Year Extended Warranty (+149.95)
Hi-Res Security Monitor
:
NO MONITOR
LCD 19" WIDE SCREEN (+139.95)
LCD 22" WIDE SCREEN (+169.95)
LCD 27" WIDE SCREEN (+299.95)
Quantity
:
Description
Specifications
Downloads
Product Review
Please note, this product has been discontinued by manufacturer. Before ordering, please
Contact Us
or call 866-446-2288 for availability or for suggestion on compatible replacement.

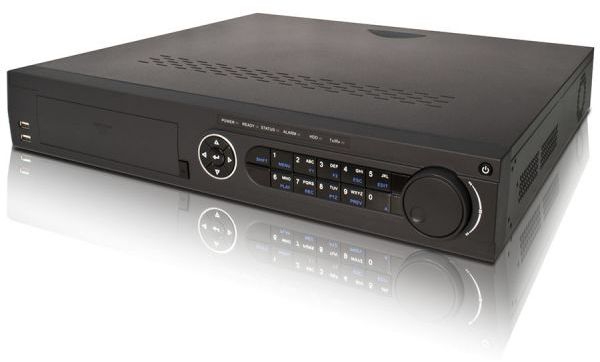

LTS LTN7732-P16 32 Channel NVR with built-in 16 Ch PoE Switch
Third-party network cameras supported
Up to 5MP resolution recording
HDMI and VGA output at up to 1920×1080P resolution
Plug & Play with 16 independent PoE network interfaces
4 SATA HDD interface up to 4TB each
HDD quota and group management
Model
LTN7732-P16
Video/Audio input
IP video input
32ch
Two-way audio input
1-ch, BNC (2.0 Vp-p, 1kΩ)
Incoming bandwidth
160Mbps
Video/Audio output
Recording resolution
5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
CVBS output
1-ch, BNC (1.0 Vp-p, 75 Ω)
Resolution: 704 ? 576 (PAL); 704 ? 480 (NTSC)
HDMI output
1-ch, resolution:
1920 ? 1080P /60Hz, 1600 ? 1200 /60Hz,
1280 ? 1024 /60Hz, 1280 ? 720 /60Hz, 1024 ? 768 /60Hz
VGA output
1-ch, resolution:
1920 ? 1080P /60Hz, 1600 ? 1200 /60Hz, 1280 ? 1024 /60Hz, 12 ?80 720 /60Hz, 1024 ? 768 /60Hz
Audio output
2-ch, BNC (Linear, 600Ω)
Playback resolution
5MP / 3MP / 1080P / UXGA / 720P / VGA / 4CIF / DCIF / 2CIF / CIF / QCIF
Synchronous playback
16-ch
Hard disk
SATA
4 SATA interfaces for 2 HDDs + 1 DVD-R/W (default), or 4HDDs
eSATA
1 eSATA interface
Capacity
Up to 4TB capacity for each HDD
External interface
Network interface
1 RJ-45 10 / 100 / 1000 Mbps self-adaptive Ethernet interface
16 independent 100 Mbps PoE network interfaces
Serial interface
1 RS-232 interface(for parameters configuration, maintenance,transparent channel)
1 RS-485 interface (reserved);
1 RS-485 keyboard interface (for special keyboard control)
USB interface
3 ? USB 2.0
Alarm in
16
Alarm out
4
General
Power supply
100 ~ 240VAC, 6.3A, 50 ~ 60Hz
Consumption
≤45 W
Working temperature
-10 ?C ~ +55 ?C(14?F ~ 131?F)
Working humidity
10% ~ 90%
Chassis
19-inch rack-mounted 1.5U chassis
Dimensions(W ? D ? H)
440 ? 390 ? 70 mm(17.3" x 15.3" x 2.8")
Weight
≤ 4 Kg (8.8 lb) ( without hard disk or DVD-R/W )
