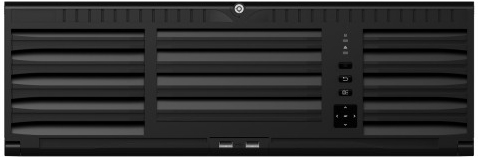

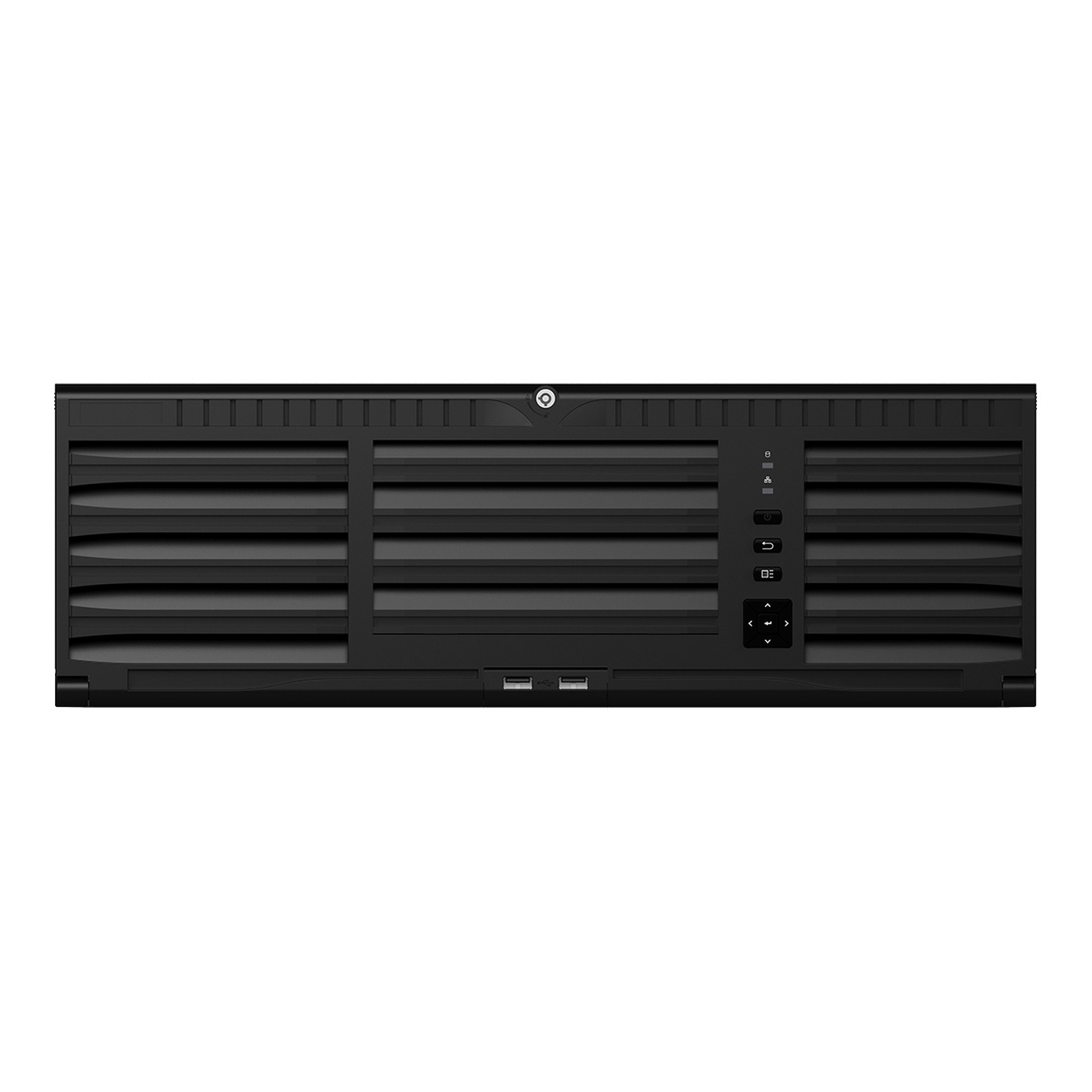

LTS LTN07128-R16 Platinum Enterprise Level 128 Channel NVR – 4K

SKU#

:

LTN07128-R16

Regular Price

:

$4999.95

Sale Price

:

$4499.95

You Save

$500.00(10.00% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

Description
Features
Specifications
Downloads
Product Review

LTS LTN07128-R16 Platinum Enterprise Level 128 Channel NVR – 4K

128 Channel Network Video Recorder
Supports Live View, Recording, Playback up to 12MP IP Camera
Quad-Core CPU
576MB Bandwidth
4K (3840x2160) HDMI Video Output
16 SATA up to 160TB each HDD
4 RJ45 10/100/1000Mbps, 4 Fiber Optic Ethernet Interfaces
RAID 0, 1, 5, 6, 10 and Hot Swap
H.265/H.265+/H.264/H.264+

Model	LTN07128-R16
Recorder Series	Platinum Series
Recorder Channel	128-Channel
Recorder Case	3U Case
Recorder Technology	IP / NVR
Featured Product	No
Video/Audio Input
IP Video Input	128CH
Incoming/Outgoing Bandwidth	768Mbps/768Mbps
Incoming/Outgoing Bandwidth (RAID mode)	768Mbps/768Mbps
Protocol	LTS, ACTi, ARECONT, AXIS, BOSCH, BRICKCOM, CANON, HUNT, ONVIF (Version 2.5), PANASONIC, PELCO, PSIA, RTSP, SAMSUNG, SONY, VIVOTEK, ZAVIO, HIKVISION
Video/Audio Output
HDMI Output	Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096×2160), 4K (3840×2160)/30Hz, 2K (2560×1440)/60Hz, 1080P (1920×1080)/60Hz, UXGA (1600×1200)/60Hz, SXGA (1280×1024)/ 60Hz, 720P (1280×720)/60Hz, XGA (1024×768)/60Hz
VGA Output	1CH Resolution: 1080P (1920×1080) /60Hz, UXGA (1600×1200) /60Hz, SXGA (1280×1024) /60Hz, 720P (1280×720) /60Hz, XGA (1024×768) /60Hz
Audio Output	1CH, RCA (Linear, 1kO)
Video & Audio Decoding
Decoding Format	H.265, H.265+, H.264, H.264 Zip+, MPEG4, MJPEG
Video Resolution	12MP/8MP/7MP/6MP/5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF
Synchronous Playback	Up to 16 channels
Capability	68CH @ 1080P
Hard Disk
SATA	16 SATA interfaces supporting hot-plug
Capacity	Up to 8TB capacity for each HDD
RAID
RAID Type	RAID 0, 1, 5, 6, and 10
Network Management
Protocol	IPv6, HTTPS, UPnP, SNMP, NTP, SADP, SMTP, NFS, iSCSI, PPPoE, DDNS
Network Interface	4, RJ45 10M/100M/1000M self-adaptive Ethernet interface
External Interface
Two-way Audio Input	1-ch, RCA (2.0 Vp-p, 1 KO)
Serial Port	1 RS-485,Keyboard
USB Interface	Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0
Alarm Input/Output	16/8
Decoding Board	1
General
Power Supply	100 ~ 240 VAC, 550W
Consumption	= 140 W(without hard disk or DVD-R/W)
Working Temperature	32 °F to 122 °F (0°C to + 50°C)
Working Humidity	10 % ~ 90 %
Casing	19-inch rack-mounted 3U chassis
Dimensions (WxDxH)	17.4" ×19.4"×5.7"(442× 494 ×146 mm)
Weight	= 35.3 lb (16Kg, without hard disk or DVD-R/W)
