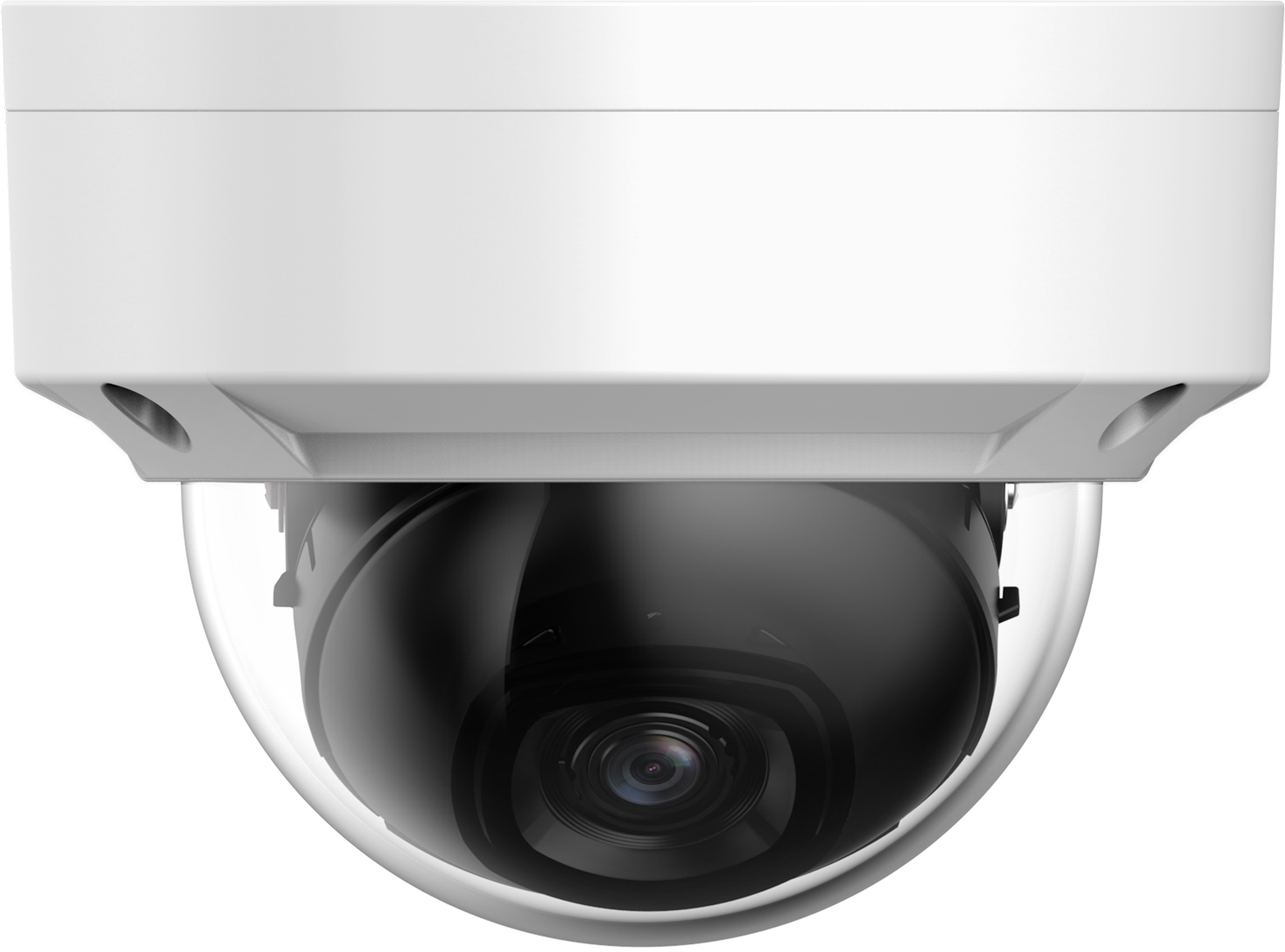

LTS LTDHIP7742W-36MD 4MP Lite AI IR Fixed focal Dome Network Camera 3.6mm

LTS LTDHIP7742W-36MD 4MP Lite AI IR Fixed focal Dome Network Camera 3.6mm
- 4MP
- H.265+
- 2688 × 1520@30fps
- 3.6mm Fixed Lens
- Color 0.005 lux, BW 0 lux, IR LED up to 165ft
- WDR 120dB, 3D DNR, PoE
- BLC, IP67, IK10
- 12V DC/ PoE, Perimeter Protection, SMD
- Audio I/O: 1/1, Alarm I/O: 1/1
- Micro SD Slot up to 256GB
| Model | LTDHIP7742W-36MD | ||||||||||||||||
| Camera | |||||||||||||||||
| Image Sensor | 1/3 4Megapixel progressive CMOS | ||||||||||||||||
| Effective Pixels | 2688 (H) x 1520 (V) | ||||||||||||||||
| ROM | 128 MB | ||||||||||||||||
| RAM | 512 MB | ||||||||||||||||
| Scanning System | Progressive | ||||||||||||||||
| Electronic Shutter Speed | Auto/Manual 1/3 s1/100000 s | ||||||||||||||||
| Min. Illumination | 0.005 Lux@F1.6 | ||||||||||||||||
| IR Distance | 50 m (164.0 ft) | ||||||||||||||||
| IR On/Off Control | Auto/Manual | ||||||||||||||||
| IR LEDs Number | 3 (IR LEDs) | ||||||||||||||||
| Pan/Tilt/Rotation Range | Horizontal: 0°-355°; vertical: 0°-65°; rotation: 0°-355° | ||||||||||||||||
| Lens | |||||||||||||||||
| Lens Type | Fixed focal | ||||||||||||||||
| Mount Type | M12 | ||||||||||||||||
| Focal Length | 2.8 mm; 3.6 mm; 6 mm | ||||||||||||||||
| Max. Aperture | F1.6 | ||||||||||||||||
| Field of View | 2.8 mm: Horizontal:103°; vertical: 55°; diagonal: 122° 3.6 mm: Horizontal:84°; vertical: 45° ; diagonal: 100° 6 mm: Horizontal:52°; vertical: 28°; diagonal: 61° | ||||||||||||||||
| Iris Type | Fixed aperture | ||||||||||||||||
| Close Focus Distance | 2.8 mm: 0.9 m (3.0 ft) 3.6 mm: 1.6 m (5.3 ft) 6 mm: 3.2 m (10.5 ft) | ||||||||||||||||
| DORI Distance |
|
||||||||||||||||
| Professional, Intelligent | |||||||||||||||||
| Perimeter Protection | Tripwire; intrusion (Recognition of human and vehicle) | ||||||||||||||||
| Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||||||||||||||
| Video | |||||||||||||||||
| Video Compression | H.265; H.264; H.264H; H.264B; MJPEG | ||||||||||||||||
| Smart Codec | Yes | ||||||||||||||||
| Video Frame Rate | Main stream (2688 × 1520@125/30 fps) sub stream (704 × 576@125 fps/704 × 480@130 fps) third stream (1280 × 720@125/30 fps) | ||||||||||||||||
| Stream Capability | 3 streams | ||||||||||||||||
| Resolution | 4M (2688 x 1520); 3M (2304 x 1296); 1080p (1920 x 1080); 1.3M (1280 x 960); 720p (1280 x 720); D1 (704 x 576/704 x 480); VGA (640 x 480); CIF (352 x 288/352 x 240) | ||||||||||||||||
| Bit Rate Control | CBR/VBR | ||||||||||||||||
| Video Bit Rate | H.264: 3 Kbps8192 Kbps H.265: 3 Kbps8192 Kbps | ||||||||||||||||
| Day/Night | Auto(ICR)/Color/B/W | ||||||||||||||||
| BLC | Yes | ||||||||||||||||
| HLC | Yes | ||||||||||||||||
| WDR | 120 dB | ||||||||||||||||
| White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||||||||||||||
| Gain Control | Auto/Manual | ||||||||||||||||
| Noise Reduction | 3D DNR | ||||||||||||||||
| Motion Detection | OFF/ON (4 areas, rectangular) | ||||||||||||||||
| Region of Interest(RoI) | Yes (4 areas) | ||||||||||||||||
| Smart IR | Yes | ||||||||||||||||
| Image Rotation | 0°/90°/180°/270°(Support 90°/270°with 1920 x 1080 resolution.) | ||||||||||||||||
| Mirror | Yes | ||||||||||||||||
| Privacy Masking | 4 areas | ||||||||||||||||
| Audio | |||||||||||||||||
| Audio Compression | G.711a; G.711Mu; G726; AAC | ||||||||||||||||
| Network | |||||||||||||||||
| Network | RJ-45 (10/100 Base-T) | ||||||||||||||||
| Protocol | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP;RTMP;SMTP; FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast; ICMP;IGMP;NFS;PPPoE;802.1x;SNMP | ||||||||||||||||
| Interoperability | ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec | ||||||||||||||||
| Scene Self-adaptation | Yes | ||||||||||||||||
| User/Host | 20 (Total bandwidth: 64 M) | ||||||||||||||||
| Edge Storage | FTP; SFTP; Micro SD Card (support max. 256 G); LTSCloud; NAS | ||||||||||||||||
| Browser | IE: IE8, IE9, IE11 Chrome Firefox | ||||||||||||||||
| Management Software | Smart PSS, DSS, DMSS | ||||||||||||||||
| Mobile Phone | IOS; Android | ||||||||||||||||
| Certification | |||||||||||||||||
| Certifications | CE-LVD: EN60950-1 CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU FCC: 47 CFR FCC Part 15, Subpart B UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | ||||||||||||||||
| Port | |||||||||||||||||
| Audio Input | 1-channel (RCA port) | ||||||||||||||||
| Audio Output | 1-channel (RCA port) | ||||||||||||||||
| Alarm Input | 1 channel in: 5mA 3V-5V DC | ||||||||||||||||
| Alarm Output | 1 channel out: 300mA 12V DC | ||||||||||||||||
| Power | |||||||||||||||||
| Power Supply | 12V DC/PoE (802.3af) | ||||||||||||||||
| Power Consumption | <7.3W | ||||||||||||||||
| Environment | |||||||||||||||||
| Operating Conditions | -40℃ to +60℃ (-40℉ to +140℉)/less than ≤ 95% RH | ||||||||||||||||
| Strorage Conditions | -40℃ to +60℃ (-40℉ to +140℉) | ||||||||||||||||
| Ingress Protection | IP67; IK10 | ||||||||||||||||
| Structure | |||||||||||||||||
| Casing | Metal | ||||||||||||||||
| Dimensions | 81 mm × Φ109.9 mm (3.2" × Φ4.3") | ||||||||||||||||
| Net Weight | 378 g (0.8 lb) | ||||||||||||||||
| Gross Weight | 523 g (1.2 lb) | ||||||||||||||||
