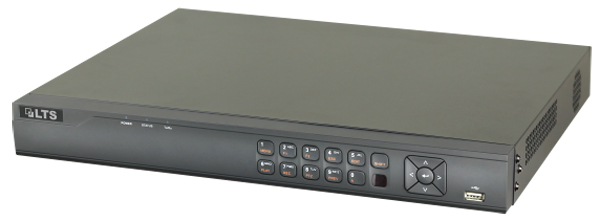

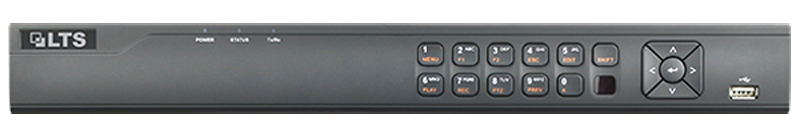

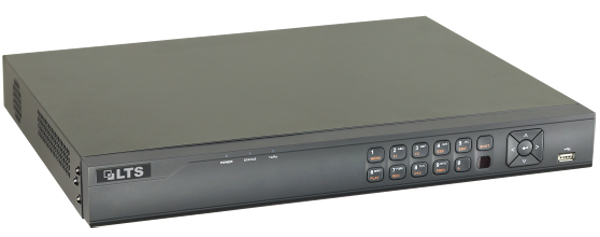

LTS LTD8508T-ST 3.0MP Platinum Advanced Level HD-TVI 8CH DVR

Additional View

LTS LTD8508T-ST 3.0MP Platinum Advanced Level HD-TVI 8CH DVR

Model	LTD8508T-ST
Recorder Series	Platinum Series
Recorder Channel	8-Channel
Recorder Case	1U Case
Recorder Technology	TVI DVR
Featured Product	No
Video/Audio Input
Video Compression	H.264 Zip+/H.264
Video Input	8ch BNC (1.0Vp-p, 75Ω), PAL / NTSC self-adaptive
IP Input	Up to 2CH (Support ONVIF, up to 4MP Resolution)
Audio Compression	G.711u
Audio Input	4-CH, RCA (2.0 Vp-p kΩ)
Two-Way Audio Input	1-CH, RCA (2.0 Vp-p kΩ)
Video/Audio Outuput
HDMI/VGA Output	1 -ch , 1920 � 1080/60Hz, 1280 � 1024/60Hz, 1280 � 720/60Hz, 1024 � 768/60 Hz
Encoding resolution	3MP@15fps/1080p@30fps/720p@30fps
CVBS output	1-ch, BNC (1.0 Vp-p, 1 kΩ)
Frame Rate	Main stream: 30f ps(N)/25fps(P) Sub-stream:WD1/4CIF@12fps (non-real-time); CIF/QVGA/QCIF (real time)
Video Bit Rate	32 Kbps-10 M bps
Audio Output	1-ch, RCA (Linear, 1 kΩ)
Audio Bit Rate	64 Kbps
Dual Stream	Support
Stream Type	Video, Video & Audio
Synchronous Playback	8ch
Network
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SAD P, NFS, iSCSI, UPnP�, HTTPS, ONVIF
Hard Disk
SATA	2 SATA
Capacity	Up to 8 TB capacity for each disk
External Interface
Network interface	1:10M / 100Mself-adapt ive Ethernet interface
Serial interface	RS-4 85
USB Port	2 � USB2.0
Alarm In/Out	8/4
General
Power supply	DC12V
Consumption	≤ 20W
Working temperature	-10 �C ~ +55 �C(14�F - 131�F)
Working humidity	10% ~ 90%
Chassis	1U chassis
Dimensions (WxDxH)	380 � 320 � 45 mm (15.0 � 12.6 � 1.8 inch)
Weight	≤2 Kg (4.4 lb)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

Additional View

LTS LTD8508T-ST 3.0MP Platinum Advanced Level HD-TVI 8CH DVR

SKU#

:

LTD8508T-ST

Regular Price

:

$349.95

Sale Price

:

$249.95

You Save

$100.00(28.58% )

Availability

:

Usually ships the next business day
