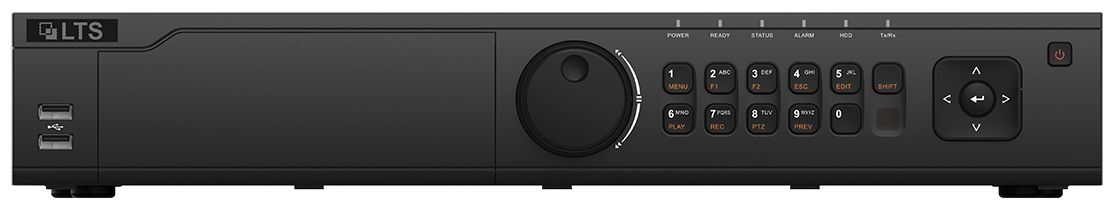

LTD8432M-EA(S) LTS Platinum, TVI DVR, 32ch, Alarm/Audio, VGA, 2x HDMI, UL, H.265, 1.5U Case, Supports 4 SATA up to 12TB each, TVI/CVI/AHD/Analog/IP 5-in-1, Up to 1080p TVI Encoding

Model	LTD8432M-EA(S)
Recording
Video Compressions	H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolution	With 1080p Lite mode disabled: 4 MP Lite / 1080p / 720p / VGA / WD1 / 4CIF / CIF; With 1080p Lite mode enabled: 4 MP Lite / 1080p Lite / 720p Lite / VGA / WD1 / 4CIF / CIF
Frame Rates	Main stream, with 1080p Lite mode disabled: � 4 MP stream access: 4 MP Lite @ 15 fps; 1080p Lite / 720p / WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N) � 1080p stream access: 1080p / 720p @ 15 fps; VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) � 720p stream access: 720p / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) With 1080p Lite mode enabled: � 4 MP Lite @ 15 fps � 1080p Lite / 720p Lite / VGA / WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N) Sub-stream: WD1 / 4CIF @ 12 fps; CIF @ 25 fps (P) / 30 fps (N)
Video Bitrate	32 Kbps to 6 Mbps
Dual-stream	Supported
Stream Type	Video, Video & Audio
Audio Compression	G.711 u
Audio Bitrate	64 Kbps
Video and Audio
IP Video Input	16 channels (up to 48) Up to 6 MP resolution Support for H.265+ / H.265 / H.264+ / H.264 IP cameras
Analog Video Input	32 channels BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
Incoming Bandwidth	200 Mbps
Outgoing Bandwidth	160 Mbps
HDTVI Input	4 MP, 1080p @ 25 & 30 fps, 720p @ 25, 30, 50, & 60 fps
AHD Input	4 MP, 1080p @ 25 & 30; 720p @ 25 & 30 fps
HDCVI Input	1080p @ 25 & 30 fps; 720p @ 25 & 30 fps
CVBS Input	PAL/NTSC
CVBS Output	1 ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI 1 Output	1 ch, 1920 x 1080 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz
HDMI 2 Output	1 ch, 4K (3840 x 2160) @ 30 Hz, 2K (2560 x 1440) @ 60 Hz, 1920 x 1080 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz
VGA Output	1 ch, 1920 x 1080 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz
Video Output Mode	HDMI1 / VGA simultaneous output; HDMI2 / VGA independent output
Audio Input	4 ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output	1 ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1 ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous Playback	16 channels
Network
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, LTS Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP�, HTTPS, ONVIF, SNMP
Network Interface	2 x RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
Serial Interface	RS-232, RS-485 (full-duplex), keyboard
SATA	4 x SATA interfaces
eSATA	Supported
Capacity	Up to 12 TB capacity for each disk
Alarm In / Out	16 / 4
USB Interface	Front panel: 2 x USB 2.0 Rear panel: 1 x USB 3.0
General
Power Supply	100 to 240 VAC, 50 to 60 Hz
Consumption	≤ 40 W (without HDD)
Operating Temperature	14° to 131° F (-10° to 55° C)
Operating Humidity	10% to 90%
Dimensions (W x D x H)	17.5 x 15.7 x 2.8 in. (445 x 400 x 71 mm)
Weight (without HDD)	≤ 15.4 lbs (7 kg)
