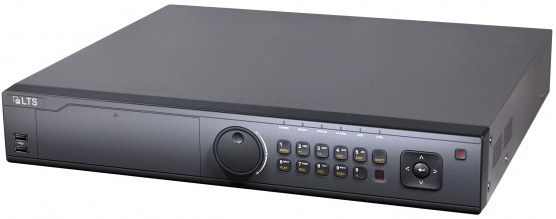

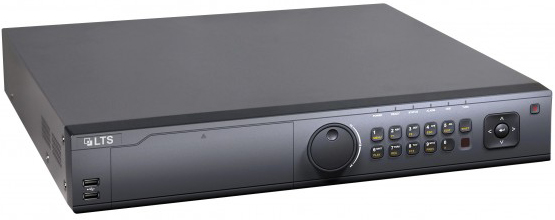

LTS LTD8424K-ST Platinum Enterprise Level 24 Channel HD-TVI DVR - with RAID

Additional View

LTS LTD8424K-ST Platinum Enterprise Level 24 Channel HD-TVI DVR - with RAID

Model	LTD8424K-ST
Recorder Series	Others
Recorder Channel	24-Channel
Recorder Case	1.5U Case
Recorder Technology	TVI DVR
Featured Product	No
Video / Audio input
Video compression	H.265+/H.265/H.264Zip+/H.264
HD-TVI video input	24-ch
Video input interface	BNC interface (1.0Vp-p, 75 O), supporting coaxitron connection
IP input	8-ch (up to 32-ch); Up to 8MP resolution; Supports H.265+/H.265/H.264+/H.264 IP cameras
Audio compression	G.711u
Audio input	4-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI/VGA output	HDMI1/VGA: 1 -ch , 1920 � 1080/60Hz, 1280 � 1024/60Hz, 1280 � 720/60Hz, 1024 � 768/60 Hz HDMI2: 1-ch, 4K(3840 � 2160)/30Hz, 2K(2560 � 1440)/60Hz, 1920� 1080/60Hz, 1280 � 1024/60Hz, 1280 � 720/60Hz, 1024 � 768/60 Hz
Encoding resolution	5MP/4MP/3MP/1080p/720p/WD1/4CIF/VGA/CIF
Frame rate	Main stream: 5MP@12fps/4 MP@15fps/3 MP@18fps,1080p/720p/WD1/4CIF/VGA/CIF@25fps(P)/30fps(N) Sub-stream: WD1/4CIF/CIF@25fps (P)/30f ps ( N )
Video bit rate	32 Kbps- 10 Mbps
Audio output	1-ch, RCA (Linear, 1 kΩ)
Audio bit rate	64 Kbps
Dual-stream	Support
Stream type	Video, Video & Audio
Synchronous playback	16ch
Network
Remote connection	128
Network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP�, HTTPS
Hard disk
SATA	4 SATA
Capacity	Up to 8TB capacity for each disk
External interface
Network interface	2, RJ45 10M/100M/1000Mself-adaptive Ethernet interface
Serial interface	RS-232, RS-485 (full duplex), Keyboard
USB port	2 � USB 2.0, Rear Panel 1 x USB 3.0
General
Power supply	AC 100 to 240V
Power Consumption	= 55W
Working temperature	-10 �C~+55�C (14�F ~ 131 �F)
Working humidity	10% ~ 90%
Dimension	445 � 390 � 70mm (17.5 � 15.4 � 2.8 inch)
Weight	=7Kg (15.4lb)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Tell A Friend

bookmark site!

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

Additional View

LTS LTD8424K-ST Platinum Enterprise Level 24 Channel HD-TVI DVR - with RAID

SKU#

:

LTD8424K-ST

Regular Price

:

$1299.95

Sale Price

:

$1149.95

You Save

$150.00(11.54% )

Availability

:

Usually ships the next business day

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:
