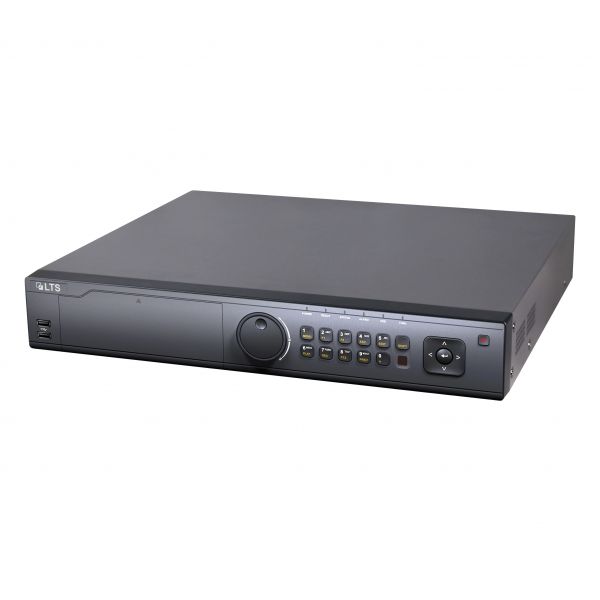

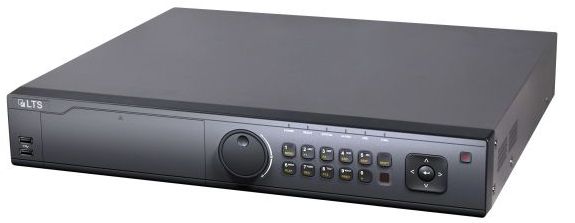

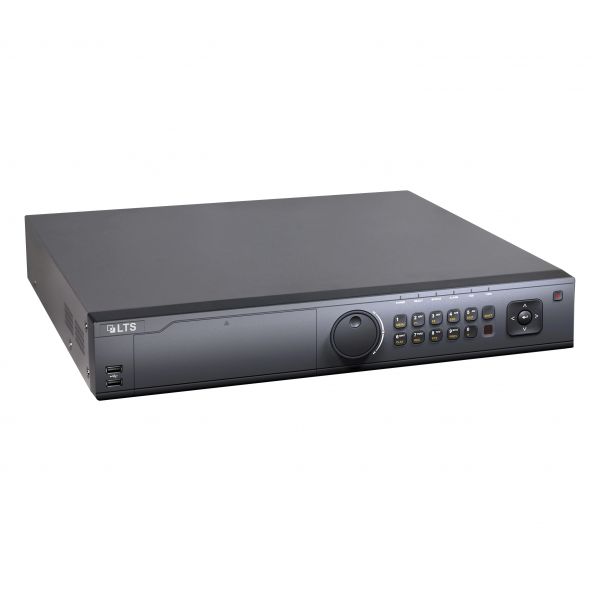

LTS LTD8416T-ST 16 Channel 1.5U Embedded HD-TVI Digital Video Recoder

Additional View

LTS LTD8416T-ST 16 Channel 1.5U Embedded HD-TVI Digital Video Recoder

SKU#

:

LTD8416T-ST

Regular Price

:

$999.95

Sale Price

:

$729.95

You Save

$270.00(27.00% )

Availability

:

Usually ships the next business day

Hard Drive

:

DVD Burner

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

LTS LTD8416T-ST 16 Channel 1.5U Embedded HD-TVI Digital Video Recoder

H.264 & Dual-stream video compression
Support HD-TVI/Analog/IP camera triple hybrid
Full channel@ 1080P resolution real-time recording
HDMI and VGA output at up to 1920×1080P resolution
Long transmission distance over coax cable
Support up to16-ch synchronous playback

Model	LTD8416T-ST
Video / Audio input
Video compression	H.264
HD-TVI video input	16-ch
Video input interface	BNC interface (1.0Vp-p, 75 Ω)
IP input	2ch(1080p@30fps)
Supported camera types	720P25, 720P30, 720P50, 720P60, 1080P25, 1080P30, CVBS
Audio compression	G.711u?
Audio input	4-ch, RCA (2.0 Vp-p, 1 kΩ)
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 kΩ)
Video / Audio output
HDMI/VGA output	1920 ? 1080 / 60 Hz,1280 ? 1024 / 60 Hz, 1280 ? 720 / 60 Hz, 1024 ? 768 / 60 Hz
CVBS output	1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 ? 576, NTSC: 704 ? 480
Encoding resolution	Main stream: 1080P / 720P / VGA / 4CIF / CIF Sub-stream: WD1(non-real-time) / 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame rate	Main stream: 1/16 fps ~ Real time frame rate Sub-stream: 1/16 fps ~ Real time frame rate
Video bit rate	32 Kbps-10 Mbps
Audio output	2-ch, RCA (Linear, 1KΩ, for VGA output and CVBS output respectively)
Audio bit rate	64 Kbps
Dual-stream	Support
Stream type	Video, Video & Audio
Synchronous playback	16-ch
Playback resolution	1080P / 720P / VGA / WD1 / 4CIF / CIF / QVGA / QCIF
Network
Remote connection	128
Network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP?, HTTPS
Hard disk
SATA	4 SATA interfaces for 4 HDDs; 1 eSATA interface
Capacity	Up to 4TB capacity for each disk
External interface
Network interface	1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface	RS-232, RS-485, Keyboard
USB port	3 ? USB2.0
Alarm in / out	16 / 4
General
Power supply	100 ~ 240VAC, 47 ~ 63HZ
Power Consumption	≤ 55 W
Working temperature	-10 ?C~+55?C(14?F ~ 131 ?F)
Working humidity	10% ~ 90%
Chassis	19-inch rack-mounted 1.5U chassis
Dimension?	445 ? 390 ? 70 mm (17.5'' ? 15.3'' ? 2.7'')
Weight	≤5Kg (11.0lb)(without hard disks)
