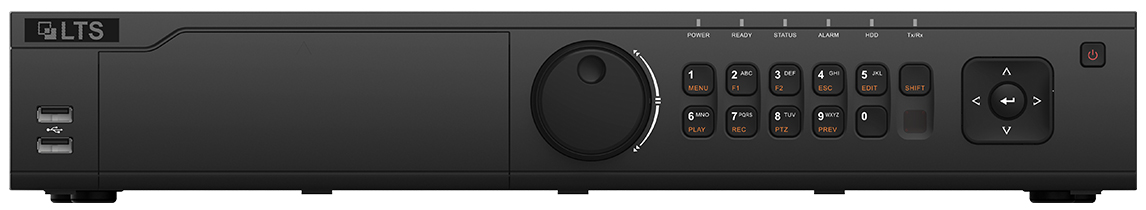

LTD8416M-ST(S) LTS Platinum, DVR, 16ch, 4 SATA @12TB each, HDTVI up to 8MP, AHD up to 5MP, CVI up to 4MP, 18ch (up to 34 ch) Network Camera Inputs

SKU#

:

LTD8416M-ST-S

Regular Price

:

$857

Sale Price

:

$679.95

You Save

$177.05(20.66% )

Availability

:

Usually ships the next business day

Hard Drive

:

(+99.95)"

:

(+169.95)"

:

(+199.95)"

:

(+299.95)"

:

(+499.95)"

:

(+999.95)"

:

Warranty

:

(+89.95)"

:

Hi-Res Security Monitor

:

22\"

:

Quantity

:

LTD8416M-ST(S) LTS Platinum, DVR, 16ch, 4 SATA @12TB each, HDTVI up to 8MP, AHD up to 5MP, CVI up to 4MP, 18ch (up to 34 ch) Network Camera Inputs

Model	LTD8416M-ST-S
Recording
Video Compressions	H.265 Pro+ / H.265 Pro / H.265 / H.264+ / H.264
Encoding Resolutions	8 MP / 3K / 5 MP / 4 MP / 3 MP / 1080p / 720p / WD1 / 4CIF / VGA / CIF
Frame Rates	Main stream: 8 MP @ 8 fps/ 3K @ 12 fps / 5 MP @ 12 fps / 4 MP @ 15 fps / 3 MP @ 18 fps 1080p / 720p / WD1 / 4CIF / VGA / CIF @ 25 fps (P) / 30 fps (N) Sub-stream: WD1 / 4CIF / CIF @ 25 fps (P) / 30 fps (N)
Video Bitrate	32 Kbps to 10 Mbps
Dual-stream	Supported
Stream Type	Video, Video & Audio
Audio Compression	G.711 u
Audio Bitrate	64 Kbps
Video and Audio
IP Video Input	18 channels (up to 34) Up to 12 MP resolution Support for H.265+ / H.265 / H.264+ / H.264 IP cameras
Analog Video Input	16 channel BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
HDTVI Input	3K; 4 & 5 MP; 3, 4, 5, 8 MP; 1080p @ 25 & 30 fps; 720p @ 25, 30, 50, & 60 fps
AHD Input	4 & 5 MP, 720p @ 25 & 30 fps, 1080p @ 25 & 30 fps
HDCVI Input	4 MP; 720p @ 25 & 30 fps; 1080p @ 25 & 30 fps
CVBS Input	PAL / NTSC
CVBS Output	1 channel, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 x 576, NTSC: 704 x 480
HDMI 1 Output	1 ch, 1920 x 1080 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz
HDMI 2 Output	1 ch, 4K (3840 x 2160) @ 30 Hz, 2K (2560 x 1440) @ 60 Hz, 1920 x 1080 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz
VGA Output	1 ch, 1920 x 1080 @ 60 Hz, 1280 x 1024 @ 60 Hz, 1280 x 720 @ 60 Hz, 1024 x 768 @ 60 Hz
Video Output Mode	HDMI1 / VGA simultaneous output; HDMI2 / VGA independent output
Audio Input	4 ch, RCA (2.0 Vp-p, 1 KΩ)
Audio Output	2 ch, RCA (Linear, 1 KΩ)
Two-Way Audio	1 ch, RCA (2.0 Vp-p, 1 KΩ) (independent)
Synchronous Playback	16 channels
Network
Total Bandwidth	320 Mbps
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, NFS, iSCSI, UPnP�, HTTPS, ONVIF, SNMP
Network Interface	2 x RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
SATA	4 x SATA interfaces
eSATA	Supported
Capacity	Up to 12 TB storage capacity for each disk
Serial Interface	RS-232, RS-485 (full-duplex), keyboard
Alarm In / Out	16 / 4
USB Interface	Front panel: 2 x USB 2.0 Rear panel: 1 x USB 3.0
General
Power Supply	100 to 240 VAC, 50 to 60 Hz
Consumption	≤ 35 W (without HDD)
Operating Temperature	14° to 131° F (-10° to 55° C)
Operating Humidity	10% to 90%
Dimensions (W x D x H)	17.5 x 15.7 x 2.8 in. (445 x 400 x 71 mm)
Weight (without HDD)	≤ 11.0 lbs (5 kg)
