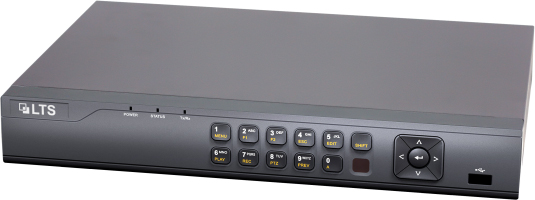

LTS LTD8308K-ETC H.265/H.265+ Platinum Professional Level 8 Channel HD-TVI DVR - Compact

Additional View

LTS LTD8308K-ETC H.265/H.265+ Platinum Professional Level 8 Channel HD-TVI DVR - Compact

Model	LTD8308K-ETC
Recorder Series	Platinum Series
Recorder Channel	8-Channel
Recorder Case	1U Case
Recorder Technology	TVI DVR
Featured Product	No
Video / Audio input
Video compression	H.265+/H.265/H.264 Zip+/H.264
Analog video input	8ch BNC interface (1.0Vp-p, 75 Ω), supporting coaxitron connection
HD-TVI Input	3MP, 1080P30,1080P25, 720P60, 720P50,720P30,720P25 Note: 3MP signal input is only available for channel 1/2
AHD input	1080p25, 1080p30, 720p25, 720p30
HDCVI input	1080p25, 1080p30, 720p25, 720p30
CVBS input	PAL/NTSC
IP video input	2-ch, Up to 4 MP resolution, supports H.265+/H.265/H.264 Zip+/H.264 IP cameras
Audio compression	G.711u
Audio input	1-ch, RCA (2.0 Vp-p, 1 KΩ)
Video / Audio output
HDMI/VGA output	1 -ch , 1920 � 1080/60Hz, 1280 � 1024/60Hz, 1280 � 720/60Hz, 1024 � 768/60 Hz
Encoding resolution	When 1080p Lite mode not enabled: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF When 1080p Lite mode enabled: 3 MP/1080p lite/720p lite/VGA/WD1/4CIF/CIF
CVBS output	1-ch, BNC (1.0 Vp-p,75kΩ), resolution: PAL: 704 � 576, NTSC: 704 � 480
Frame rate	When 1080p Lite mode not enabled: For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15fps For 1080p stream access: 1080p/720p@15fps; VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) When 1080p Lite mode enabled: 3 MP@15fps 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25fps (P)/30fps (N) Sub-stream: WD1/4CIF@12fps; CIF@25fps (P)/30fps (N)
Video bit rate	32 Kbps- 6 Mbps
Audio output	1-ch, RCA (Linear, 1 kΩ)
Audio bit rate	64 Kbps
Dual- stream	Support
Stream type	Video, Video & Audio
Synchronous Playback	8ch
Network
Remote Connections	128
Network Protocols	TCP/IP, PPPoE, DHCP, PT Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP�, HTTPS, ONVIF
Hard disk
SATA	1 SATA
Capacity	Up to 6TB capacity for each disk
External interface
Two-way audio input	1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the1st audio input)
Network interface	1, RJ45 10M/100M self-adaptive Ethernet interface
Serial interface	RS-485 (half-duplex)
USB port	2� USB 2.0
General
Power Supply	DC12V
Consumption	≤ 7.5W
Working Temperature-	10 �C ~ +55 �C(14�F - 131�F)
Working Humidity	10% ~ 90%
Chassis	1U chassis
Dimesnsions (WxDxH)	315 � 242 � 45 mm (12.4 � 9.5 � 1.8 inch)
Weight	≤1.78Kg (3.9 lb)

free shipping

orders $500 and up

Search Product

Products

customer services

By Manufacturer

By Price

Surveillance Mega-Store Ultimate Destination for All CCTV Needs

Lifetime technical support.

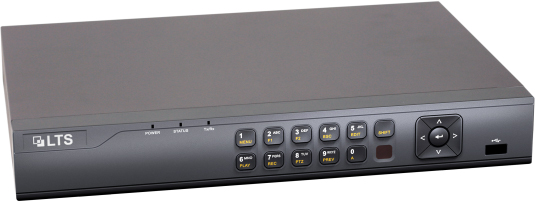

Additional View

LTS LTD8308K-ETC H.265/H.265+ Platinum Professional Level 8 Channel HD-TVI DVR - Compact

SKU#

:

LTD8308K-ETC

Regular Price

:

$249.95

Sale Price

:

$124.95

You Save

$125.00(50.01% )

Availability

:

Usually ships the next business day
