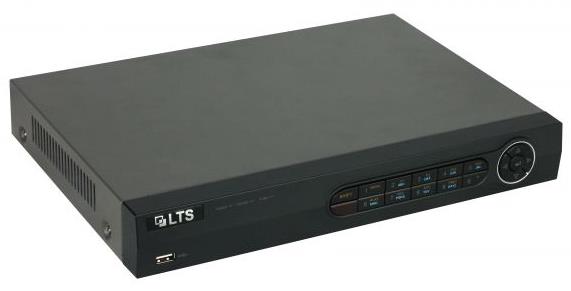

LTS LTD7204-FT 4Ch 1080p, 720p Real-Time Recording HD-SDI DVR

Additional View

LTS LTD7204-FT 4Ch 1080p, 720p Real-Time Recording HD-SDI DVR

SKU#

:

LTD7204-FT

Regular Price

:

$499.95

Sale Price

:

$269.95

You Save

$230.00(46.00% )

Availability

:

Contact us for availability

Hard Drive

:

Warranty

:

Hi-Res Security Monitor

:

Quantity

:

Description
Features
Specifications
Downloads
Product Review

Please note, this product has been discontinued by manufacturer. Before ordering, please Contact Us or call 866-446-2288 for availability or for suggestion on compatible replacement.

4 CH 1080P@15fps/CH Record, H.264 Compression, Compatible with HDMI 1920*1080 output, 4 CH Playback (2CH 1080P Realtime). LTD7204-FT adopts high performance video processing chips and embedded Linux. It utilizes the most advanced technologies, such as standard H.264, 4 Ch 1080P Record and 4 Ch Playback, Compatible with HDMI 1920*1080 output, full remote control via IE browser, mobile surveillance (by cell phones), etc.. It has all the powerful functions and is of high stability. LTD7204-FT supports mobile phone surveillance (BroView) on iPhone, iPad, Android, HD-SDI DVR

Product Features

Standard H.264 format
Multiplex mode: recording, playback, setup, backup, network and mobile phone surveillance simultanously
Sophisticated Network Functions: remote surveillance, remote playback,
remote recording, remote control DVR, remote menu setup, remote recording backup
Various recording mode: timer, motion detection, alarm, and watermark
HDMI, VGA Output
720P Realtime recording
Multi-method searching: Time, Event(Alarm, Motion Detection), Recording List
Easy Backup: download recorded files via IE browser through network, or to external USB2.0 device
Support IE browser, remote menu setup
Support 8 CH playback
Support PTZ control with preset and auto-cruise
Support full mouse control via USB mouse
Support VGA output, display resolution adjustable up to 1280*1024.
Support CMS Central Management System for multiple sites monitoring
Support multi-level user management
Compact case

Model	LTD7204-FT
Video / Audio input
Video compression	H.264
HD-SDI video input	4-ch HD-SDI interface (800 mVp-p, 75 Ω)
Supported HD-SDI camera types	1080I60, 1080I50, 1080P30, 1080P25, 720P60, 720P50, 720P30, 720P25
Audio compression	G.711u
Audio input	4-ch RCA (2.0 Vp-p, 1 K Ω)
Two-way audio in	1-ch, RCA (2.0 Vp-p, 1 K Ω), (using the 1st channel of audio input)
HDMI / VGA output	1920 ? 1080 / 60 Hz,1280 ? 1024 / 60 Hz, 1280 ? 720 / 60 Hz, 1024 ? 768 / 60 Hz
Encoding resolution	Main stream: 1080P / 720P / VGA / 4CIF / CIF, Sub-stream: 4CIF(non-real-time) / CIF / QCIF / QVGA
Frame rate	Main stream: 1/16 fps ~ Real time frame rate, Sub-stream: 1/16 fps ~ Real time frame rate
Video / Audio output
Video bitrate	32 Kbps-16 Mbps
Audio output	1-ch, RCA (Linear, 1K Ω)
Audio bitrate	64 Kbps
Dual-stream	Support
Stream type	Video, Video & Audio
Synchronous playback	4-ch (up to 2-ch 1080P real time)
Playback resolution	1080P / 720P / VGA / 4CIF / CIF / QVGA / QCIF
Remote access
Output bandwidth	128Mbps
Remote connection	128
Network Management
Network protocols	TCP/IP, PPPoE, DHCP, DNS, DDNS, NTP, SADP, SMTP, SNMP, NFS, iSCSI, UPnP
Hard disk
SATA	1 SATA interface
Capacity	Up to 4 TB capacity for each disk
External interfaces
Network interface	1; 10M / 100M / 1000M self-adaptive Ethernet interface
Serial interface	1; standard RS-485 serial interface, half-duplex
USB port	2 ? USB2.0
Alarm in / out	4 / 1 (optional)
Power supply	12V DC
Consumption (without HD)	Max. 15 W
General
Working humidity	10% ~ 90%
Chassis	Compact 1U chassis
Dimensions (W ? D ? H)	315 ?230 x 45 mm ?(12.4 ? 9.1 ? 1.8 inch)
Weight	2 kg / 4.4lb (without hard disk)
