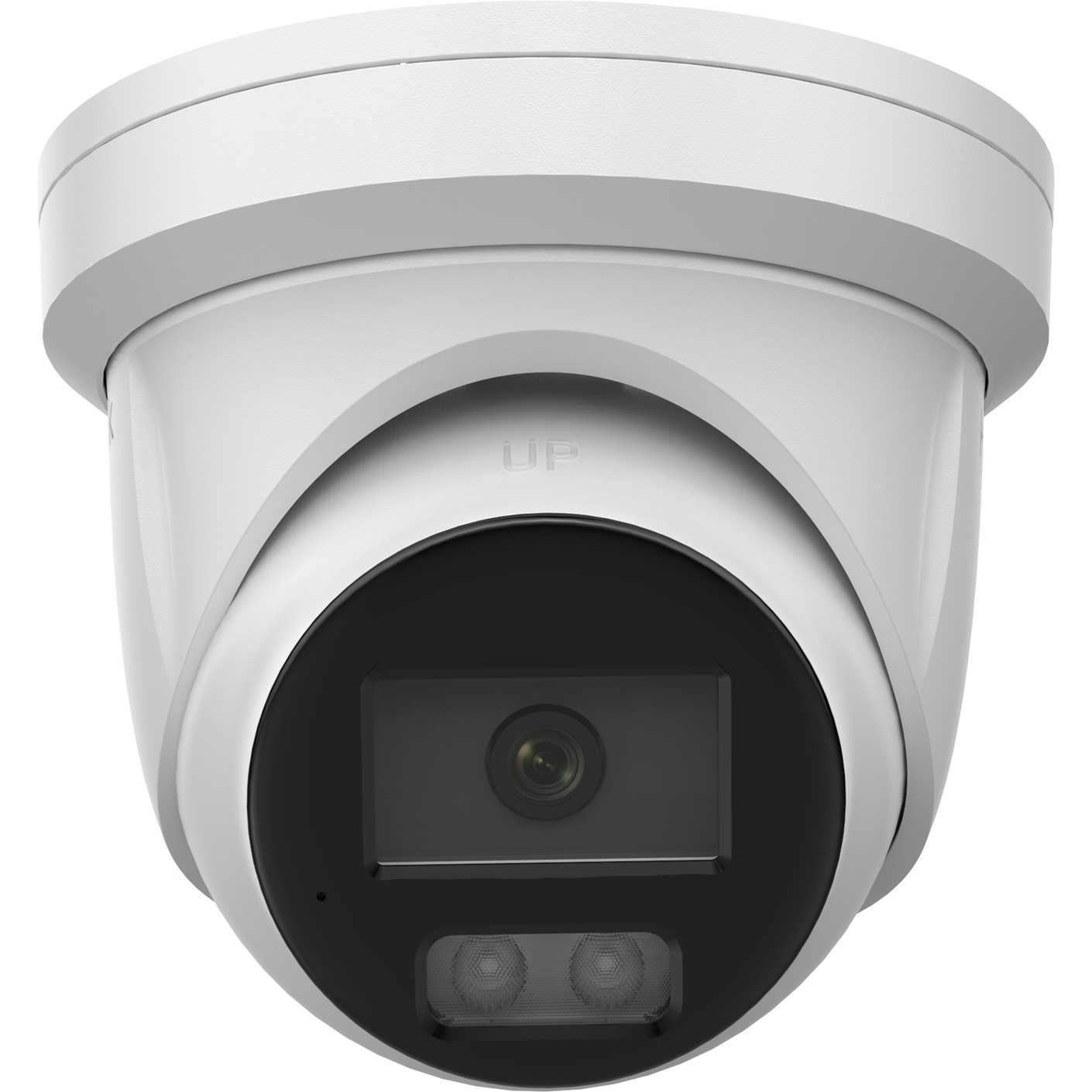

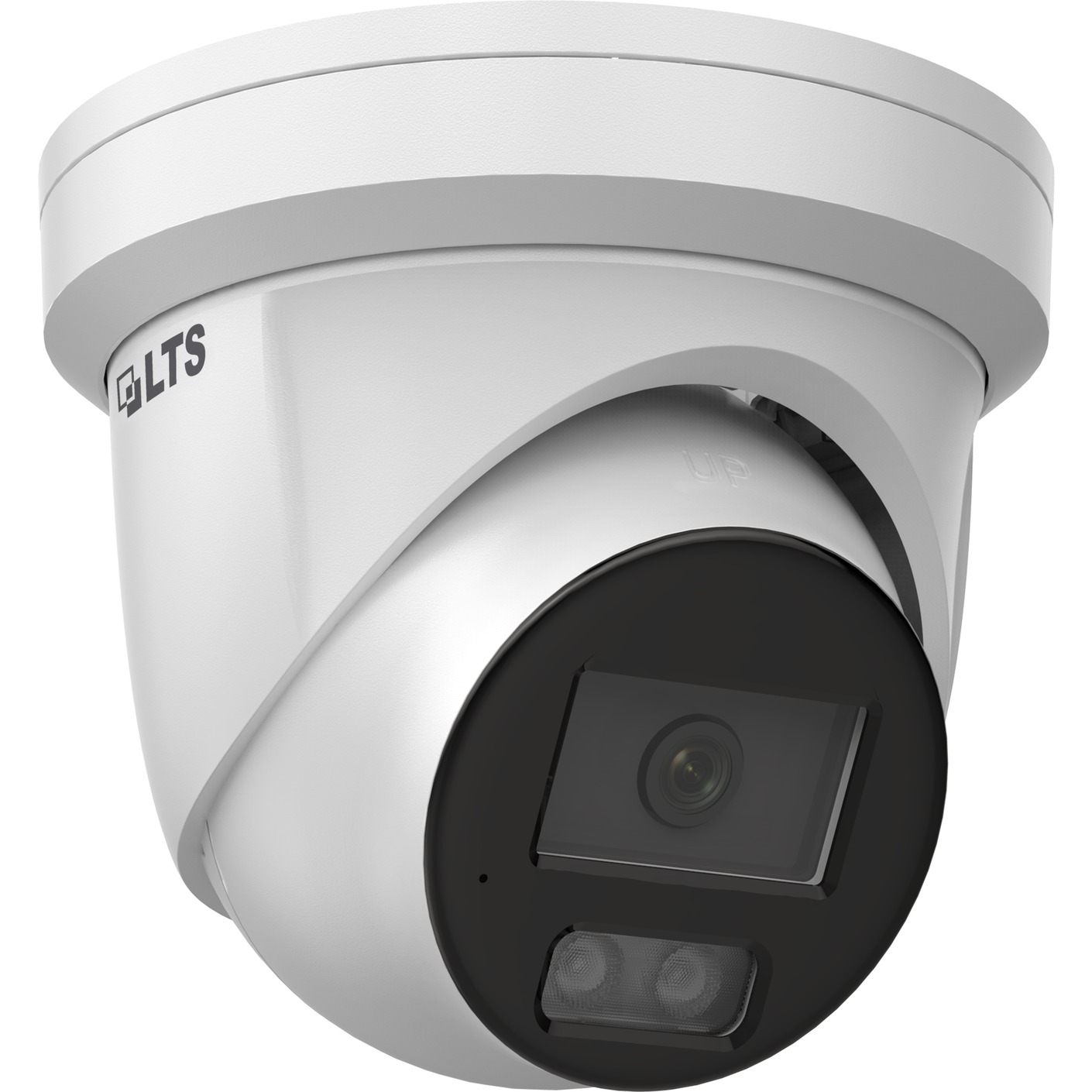

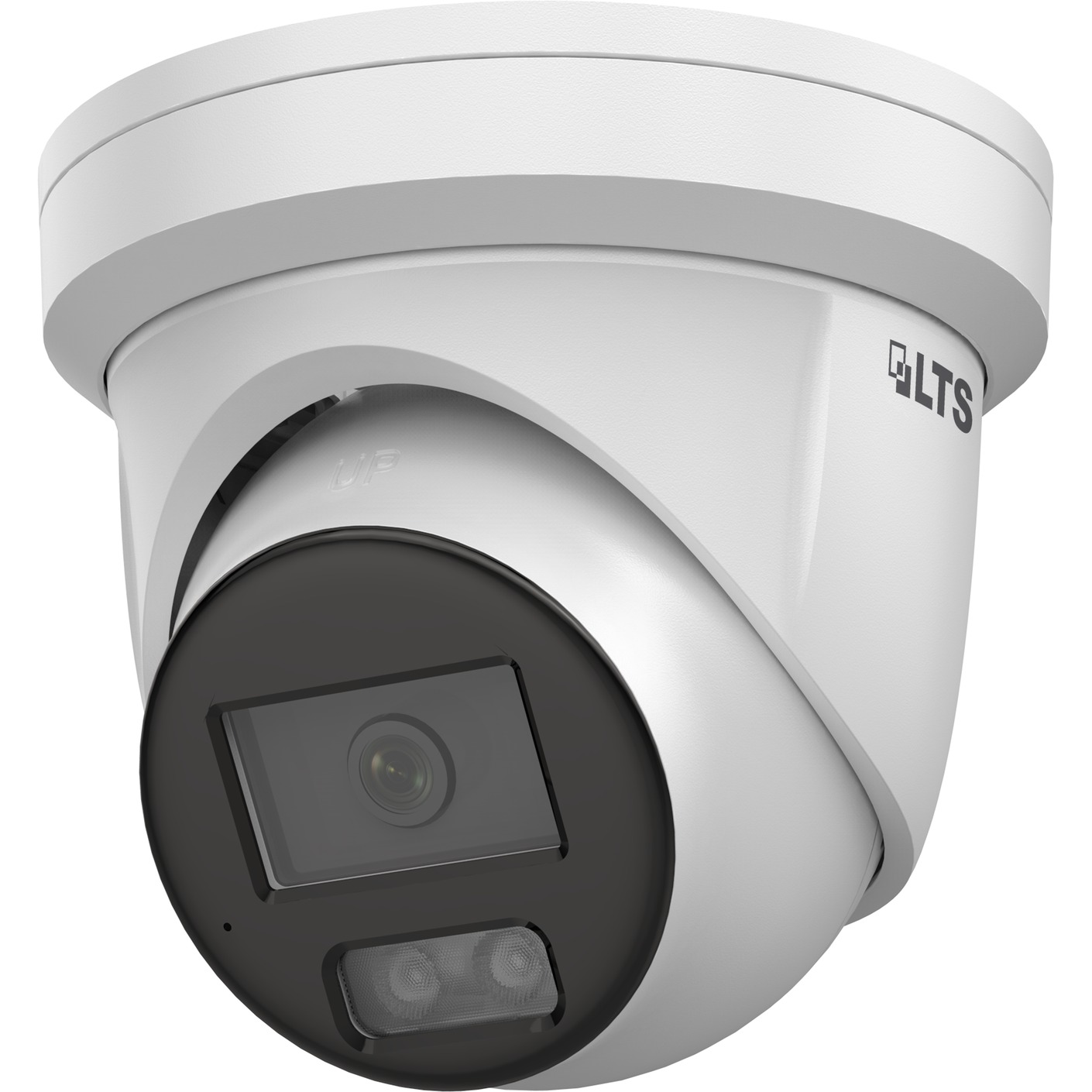

LTS LTCMIP2T83I-SDZ Platinum Plus 8MP Smart Hybrid Light Motorized Varifocal Turret Network Camera 2.8-12mm

Additional View

LTS LTCMIP2T83I-SDZ - 8MP, 2.8-12mm motorized varifocal, Smart Hybrid Light (IR + white, up to 40m), 120 dB true WDR, dual mic, MD 2.0 human/vehicle detection, IP67/IK10, PoE.

Camera
Image Sensor	1/2.8" Progressive Scan CMOS
Max. Resolution	3840 � 2160
Min. Illumination	Color: 0.005 Lux @ (F1.6, AGC ON), 0 Lux with Supplement light
Shutter Time	1/3 s to 1/100,000 s
Day & Night	IR cut filter
Angle Adjustment	Pan: 0� to 360�, tilt: 0� to 75�, rotate: 0� to 360�
Lens
Lens Type	Varifocal lens, motorized lens, 2.8 to 12 mm 2.8 to 12 mm, horizontal FOV 106.5� to 30.2�, vertical FOV 55.7� to 17�, diagonal FOV
Focal Length & FOV	128.5� to 34.7�
Lens Mount	�14
Iris Type	Fixed
Aperture	F1.6
DORI	2.8 to 12 mm: D: 88.3 m to 289.7 m, O: 35 m to 114.9 m, R: 17.7 m to 57.9 m, I: 8.8 m
DORI	to 29.0 m
Illuminator
Supplement Light Type	IR, White Light
Supplement Light Range	Up to 40 m
Smart Supplement Light	Yes
IR Wavelength	850 nm
Video	50 Hz: 20 fps (3840 � 2160) 25 fps (3200 � 1800, 2688 � 1520, 1920 � 1080, 1280 � 720)
Main Stream	60 Hz: 20 fps (3840 � 2160) 30 fps (3200 � 1800, 2688 � 1520, 1920 � 1080, 1280 � 720) 50 Hz: 25 fps (1280 � 720, 640 � 480, 640 � 360)
Sub-Stream	60 Hz: 30 fps (1280 � 720, 640 � 480, 640 � 360) 50 Hz: 10 fps (1920 � 1080, 1280 � 720, 640 � 480, 640 � 360)
Third Stream	60 Hz: 10 fps (1920 � 1080, 1280 � 720, 640 � 480, 640 � 360) *Third stream is supported under certain settings. Main stream: H.265/H.264/H.264+/H.265+, Sub-stream: H.265/H.264/MJPEG,
Video Compression	Third stream: H.265/H.264, *Third stream is supported under certain settings.
Video Bit Rate	32 Kbps to 16 Mbps
H.264 Type	Baseline Profile, Main Profile, High Profile
H.265 Type	Main Profile
Scalable Video Coding (SVC)	H.264 and H.265 encoding
Bit Rate Control	CBR, VBR
Region of Interest (ROI)	1 fixed region for main stream and sub-stream
Target Cropping	Yes
Audio
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM/MP3/AAC-LC 64 Kbps (G.711ulaw/G.711alaw)/16 Kbps (G.722.1)/16 Kbps (G.726)/32 to 192 Kbps
Audio Bit Rate	(MP2L2)/8 to 320 Kbps (MP3)/16 to 64 Kbps (AAC-LC)
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/48 kHz
Environment Noise Filtering	Yes
Network	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, NTP, UPnP,
Protocols	SMTP, IGMP, 802.1X, QoS, IPv4, IPv6, UDP, Bonjour, SSL/TLS, PPPoE, SNMP, WebSocket, WebSockets
Simultaneous Live View	Up to 6 channels
API	ONVIF (Profile S, Profile G), ISAPI, SDK, ISUP Password protection, complicated password, HTTPS encryption, IP address filter,
Security	Security Audit Log, basic and digest authentication for HTTP/HTTPS, TLS 1.1/1.2/1.3, WSSE and digest authentication for Open Network Video Interface Up to 32 users
User/Host	3 user levels: administrator, operator, and user NAS (NFS, SMB/CIFS), Auto Network Replenishment (ANR),
Network Storage	Together with high-end memory card, memory card encryption and health detection are supported.
Client	NVMS V3, LTS Connect, XVMS Plug-in required live view: IE 11,
Web Browser	Plug-in free live view: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+, Local service: Chrome 80+, Firefox 80+, Edge 89+, Safari 13+
Image Parameters Switch	Yes
Day/Night Switch	Day, Night, Auto, Schedule
Image Settings	Rotate mode
Wide Dynamic Range (WDR)	120 dB
SNR	≥ 52 dB
Image Enhancement	BLC, HLC, 3D DNR
Privacy Mask	8 programmable polygon privacy masks
Interface
Ethernet Interface	1 RJ45 10 Mbps/100 Mbps self-adaptive Ethernet port Built-in Microphone: Arrayed dual-microphone 1 input (line in), two-core terminal block, max. input amplitude: 3.3 Vpp, input
Audio	impedance: 4.7 KΩ, interface type: non-equilibrium, 1 output (line out), two-core terminal block, max. output amplitude: 3.3 Vpp, output impedance: 100 Ω, interface type: non-equilibrium
On-Board Storage	Built-in memory card slot, support microSD/microSDHC/microSDXC card, up to 512 GB
Alarm	1 input, 1 output (max. 24 VDC/24 VAC, 1 A)
Reset Key	Yes
Event	Motion detection (support alarm triggering by specified target types (human and
Basic Event	vehicle)), video tampering alarm, exception
Smart Event	Face detection Upload to FTP/NAS/memory card, notify surveillance center, send email, trigger alarm
Linkage	output, trigger recording, trigger capture
Deep Learning Function	Line crossing, intrusion
Perimeter Protection	Support alarm triggering by specified target types (human and vehicle)
General	12 VDC � 25%, 0.88 A, max. 10.56 W, �5.5 mm coaxial power plug, reverse polarity
Power	protection, PoE: IEEE 802.3af, Class 3, max. 12.5 W
Material	Metal
Dimension	�5.4" � 4.8" (�138.6 mm � 123 mm)
Package Dimension	6.7" � 6.7" � 6.3" (170 mm � 170 mm � 160 mm)
Weight	Approx. 1.9 lb (860 g.)
With Package Weight	Approx. 2.5 lb (1140 g.)
Storage Conditions	-30 �C to 60 �C (-22 �F to 140 �F). Humidity 95% or less (non-condensing)
Startup and Operating	-30 �C to 60 �C (-22 �F to 140 �F). Humidity 95% or less (non-condensing)
Conditions	33 languages: English, Russian, Estonian, Bulgarian, Hungarian, Greek, German, Italian, Czech, Slovak, French, Polish, Dutch, Portuguese, Spanish, Romanian, Danish, Swedish,
Language	Norwegian, Finnish, Croatian, Slovenian, Serbian, Turkish, Korean, Traditional Chinese, Thai, Vietnamese, Japanese, Latvian, Lithuanian, Portuguese (Brazil), Ukrainian
General Function	Heartbeat, mirror, flash log, password reset via email, pixel counter, anti-banding
Approval	CE-EMC: EN 55032:2015+A1:2020, EN 50130-4:2011+A1:2014, EN IEC 61000-3-2:2019+A1:2021, EN 61000-3-3:2013+A1:2019+A2:2021,
EMC	RCM: AS/NZS CISPR 32: 2015, IC: ICES-003: Issue 7, KC: KN32: 2015, KN35: 2015 CB: IEC 62368-1: 2014+A11, CE-LVD: EN 62368-1: 2014/A11: 2017,
Safety	BIS: IS 13252 (Part 1): 2010/IEC 60950-1: 2005, LOA: IEC/EN 60950-1 CE-RoHS: 2011/65/EU,
Environment	WEEE: 2012/19/EU, Reach: Regulation (EC) No 1907/2006
Protection	IP67: IEC 60529-2013, IK10: IEC 62262:2002
