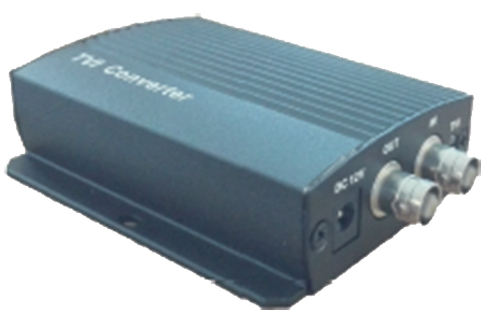

LTS LTAH5100T HD-TVI to HDMI Converter
LTS LTAH5100T HD-TVI to HDMI Converter
- HD-TVI Converter
Model | LTAH5100T | |
Properties | ||
Physical Interface | BNC, HDMI | |
Input Level | >500 mVp-p | |
Output Format | HDMI 1.4b, A standard interface | |
Input Auto Cable Equalization | 1080 p, 720 p, supporting 100M75-5 cable input with distance of 100M | |
Input Format | 1080 p 25/30, 720 p 25/30/50/60, compatible with V2.0 HDTVI | |
Input Impedance | 75 ? | |
Output Resolution | 720 p 50/60, 1080 p 50/60 | |
Output Format Distance | HDMI 1.4b, D-type base, 10 M distance | |
LED | Power LED, video source LED | |
Power Supply | 12 VDC, 1A | |
Power Consumption | ? 8 W | |
Working Humidity | 10 % to 90 % | |
Working Temperature | -86º F to + 167º F | |
Dimensions (W×D×H) | 2.0 × 1.2 × 1.0" | |
Mounting Type | Independent |
