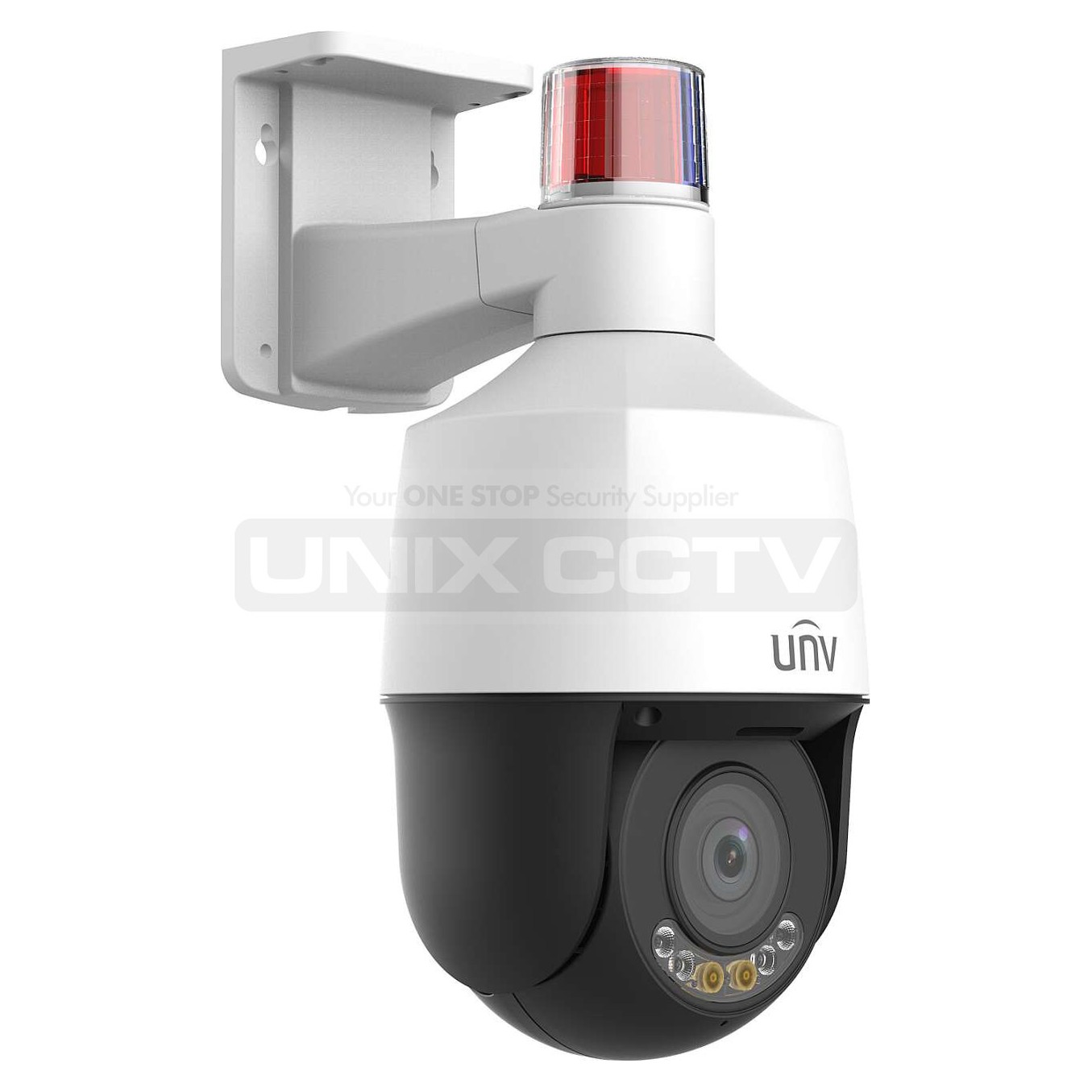

UNV IPC6325LFW-AX5C-VG 5MP Tri-Guard ColorHunter IP PTZ Camera, 5x Zoom, Red & Blue Warning Light & Sound

PTZ • Auto Tracking • Smart Intrusion Prevention • People Counting • Exception Detection • Tri-Guard • ColorHunter • Red & Blue Warning Light (Active Deterrence) • 1 / 2.7″ CMOS 5MP • 0.005 Lux (F1.2, AGC ON) • Ultra 265 / H.265 / H.264 • 120dB True WDR • 2.7-13.5 mm (5x Optical Zoom) • Dual Light • 164 ft (50m) IR Distance • 49.3 ft (15m) WL Distance • IP66 • 12VDC 18W / PoE+(at) • Built-in Mic • Speaker • Micro SD Slot / up to 512 GB

Camera
Max Resolution	5 MP
Sensor	1 / 2.7" CMOS
Min. Illumination	Colour: 0.005 Lux (F1.2, AGC ON) 0 Lux with IR
Day / Night	IR-cut filter with auto switch (ICR)
Shutter	Auto / Manual, 1 to 1 / 100000 s
WDR	120 dB
S / N	>56 dB
Lens
Focal Length	2.7 to 13.5 mm
Optical Zoom	5X
Iris	F1.2
Field of View (H)	106.9° ~ 30.6°
Field of View (V)	56° ~ 17.7°
Field of View (D)	131.5° ~ 36.1°
DORI
DORI Distance (Detect)	70.9 m ~ 247.5 m (232.5 ft ~ 812 ft)
DORI Distance (Observe)	28.4 m ~ 99 m (93 ft ~ 324.8 ft)
DORI Distance (Recognize)	14.2 m ~ 49.5 m (46.5 ft ~ 162.4 ft)
DORI Distance (Identify)	7.1 m ~ 24.8 m (23.3 ft ~ 81.2 ft)
Illuminator
Illumination Distance (Warm Light)	15 m (49.3 ft)
Light On / Off Control	Auto / Manual
Illumination Distance (IR)	50 m (164.0 ft)
Wavelength	850 nm
Video
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 5MP (28801620), Max 30fps Sub Stream: 720P (1280720), Max 30fps Third Stream: D1 (720*576), Max 30fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
Privacy Mask	Up to 4 areas
OSD	Up to 8 OSDs
Events
Basic Detection	Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind, Scene change, Defocus detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
Audio
Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16KHZ
Storage
Edge Storage	Micro SD, up to 512 GB
Network Storage	ANR, NAS (NFS)
Intelligent
Exception Detection	Object removed, Object Left Behind, Scene change, Defocus detection
Auto Tracking	Support, target filtering: human only
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring
Network
Protocols	TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL / TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10 and above,Chrome 45 and above,Firefox 52 and above,Edge 79 and above
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D / 3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Smart IR	Support
Defog	Digital defog
PTZ
Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Patrol Stay Time	120 s to 1800 s
Home Position	Support
Pan Range	0° ~ 345°
Pan Speed	1° / s～50° / s
Tilt Range	−10° ~ 100°
Tilt Speed	1° / s～40° / s
Interface
Audio I / O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I / O	1 / 1
Built-in Mic	Support
Built-in Speaker	Support
Network	1 × RJ45 10 M / 100 M Base-TX Ethernet
Certification
EMC	CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130 ~ 4: 2011+A1: 2014, EN 61000 ~ 3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000 ~ 3-2: 2019+A1: 2021)
Safety	CE LVD (EN 62368 ~ 1: 2020+A11: 2020) UL (UL 62368 ~ 1, 2nd Ed., Issue Date: 2014 ~ 12-01)
Environment	CE-ROHS (2011 / 65 / EU;(EU)2015/863)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)
General
Power	DC12V(±25%), PoE(IEEE 802.3at)
Power Consumption	18 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	185 × 133 × 286mm (7.3" × 5.2" × 11.3") (L x W x H)
Weight	1.32 kg
Working Environment	−30°C ~ 60°C (−22°F ~ 140°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	−40°C ~ 70°C (−40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	2 KV
Reset Button	Support
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Heater	Support
