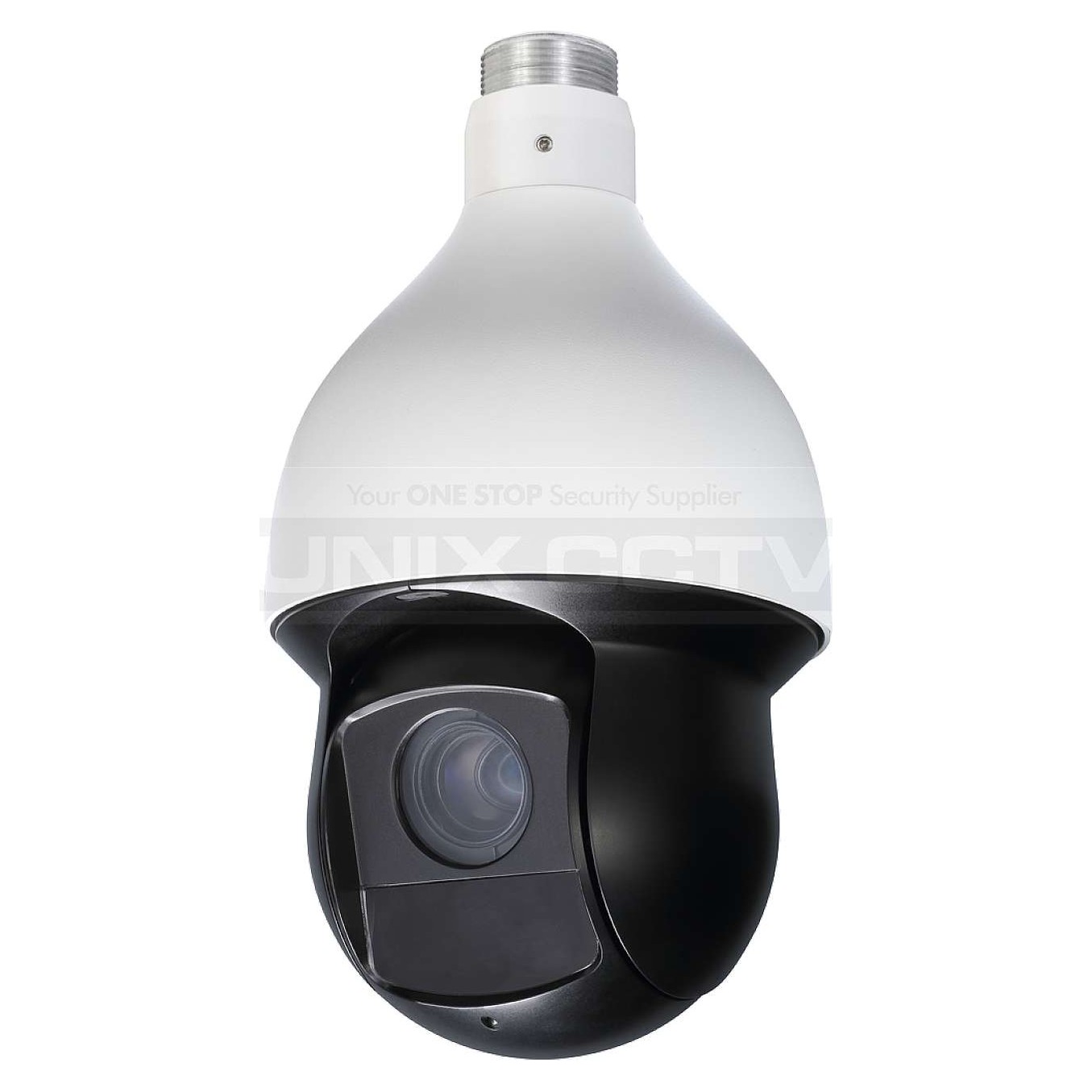

Featuring with powerful optical zoom and accurate pan/tilt/zoom performance, the EPT IR-A8200 series PTZ camera can provide large monitoring range and great detail. The camera delivers 1080P resolution at 25/30 fps, with 25x optical zoom, and has very excellent low light performance due to adopting the latest starlight technology. EPT IR-A8200 series PTZ is equipped with smooth control, high quality image and good protection, which make it can meet small and medium size of video surveillance applications.
HDCVI technology inherits the born feature of simplicity from traditional analog surveillance system, making itself a best choice for investment protection. HDCVI system can seamlessly upgrade the traditional analog system without replacing existing coaxial cabling. The plug and play approach enables full HD video surveillance without the hassle of configuring a network.
Thanks to our experience and expertise in hardware and software development , the camera is equipped with the latest image processing algorithm, high performance hardware and high quality optical components, which make the camera have very excellent low light performance. In most conditions, this camera can deliver clear, bright and low-noise color images.
Wide Dynamic Range
Embedded with industry leading wide dynamic range (WDR) technology, vivid pictures are achieved even in the most intense contrast lighting conditions. For applications with both bright and low lighting conditions that change quickly, true WDR (120dB) optimizes both the bright and dark areas of a scene at the same time to provide usable video.
With a temperature range of -40 °C to +70 °C (-40 °F to +158 °F), the camera is designed for extreme temperature environments. Subjected and certified to rigorous dust and water immersion tests, the IP66 rating makes it suitable for demanding outdoor applications.
This camera suits even the harsh conditions for outdoor applications. Its 6KV lightning rating provides protection against the camera and its structure from the effects of lightning.
- 1/2.8” 2Megapixel STARVIS™ CMOS
- Powerful 25x optical zoom
- Starlight technology
- 120dB true WDR, 3D DNR
- Max. 25/30fps@1080P, 25/30/50/60fps@720P
- IR distance up to 100m
|Image Sensor||1/2.8” STARVIS™ CMOS|
|Effective Pixels||1920(H) x 1080(V), 2 Megapixels|
|Electronic Shutter Speed||1/1s~1/30,000s|
|Minimum Illumination||Color: 0.005Lux@F1.6; 0Lux@F1.6 (IR on)|
|S/N Ratio||More than 55dB|
|IR Distance||Distance up to 100m (328ft)|
|IR On/Off Control||Auto/Manual|
|Max. Aperture||F1.6 ~ F4.4|
|Angle of View||H: 59.2° ~ 2.4°|
|Close Focus Distance||100mm~ 1000mm|
Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively.
|Pan/Tilt Range||Pan: 0° ~ 360° endless; Tilt: -15° ~ 90°,auto flip 180°|
|Manual Control Speed||Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s|
|Preset Speed||Pan: 240° /s; Tilt: 200° /s|
|PTZ Mode||5 Pattern, 8 Tour, Auto Pan ,Auto Scan|
|Speed Setup||Human-oriented focal Length/ speed adaptation|
|Power up Action||Auto restore to previous PTZ and lens status after power failure|
|Idle Motion||Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period|
|Protocol||DH-SD, Pelco-P/D (Auto recognition)|
|Frame Rate||25/30fps@1080P, 25/30/50/60fps@720P|
|Video Output||1-channel BNC high definition video output/ CVBS standard definition video output (switchable)|
|Day/Night||Auto(ICR) / Color / B/W|
|Backlight Compensation||BLC / HLC / WDR (120dB)|
|White Balance||Auto, ATW, Indoor, Outdoor, Manual|
|Gain Control||Auto / Manual|
|Noise Reduction||Ultra DNR (2D/3D)|
|Privacy Masking||Up to 24 areas|
FCC: Part15 subpartB,ANSI C63.4- 2014
UL: UL60950-1+CAN/CSA C22.2,No.60950-1
|Audio Interface||1 channel in|
|Power Supply||DC 12V/3A|
|Power Consumption||13W,20W (IR on)|
|Operating Conditions||-40°C ~ 70°C (-40°F ~ +158°F) / Less than 90% RH|
|Dimensions||Φ160(mm) x 295(mm)|
|Net Weight||6.61lb (3kg)|
|Gross Weight||9.26lb (4.2kg)|
