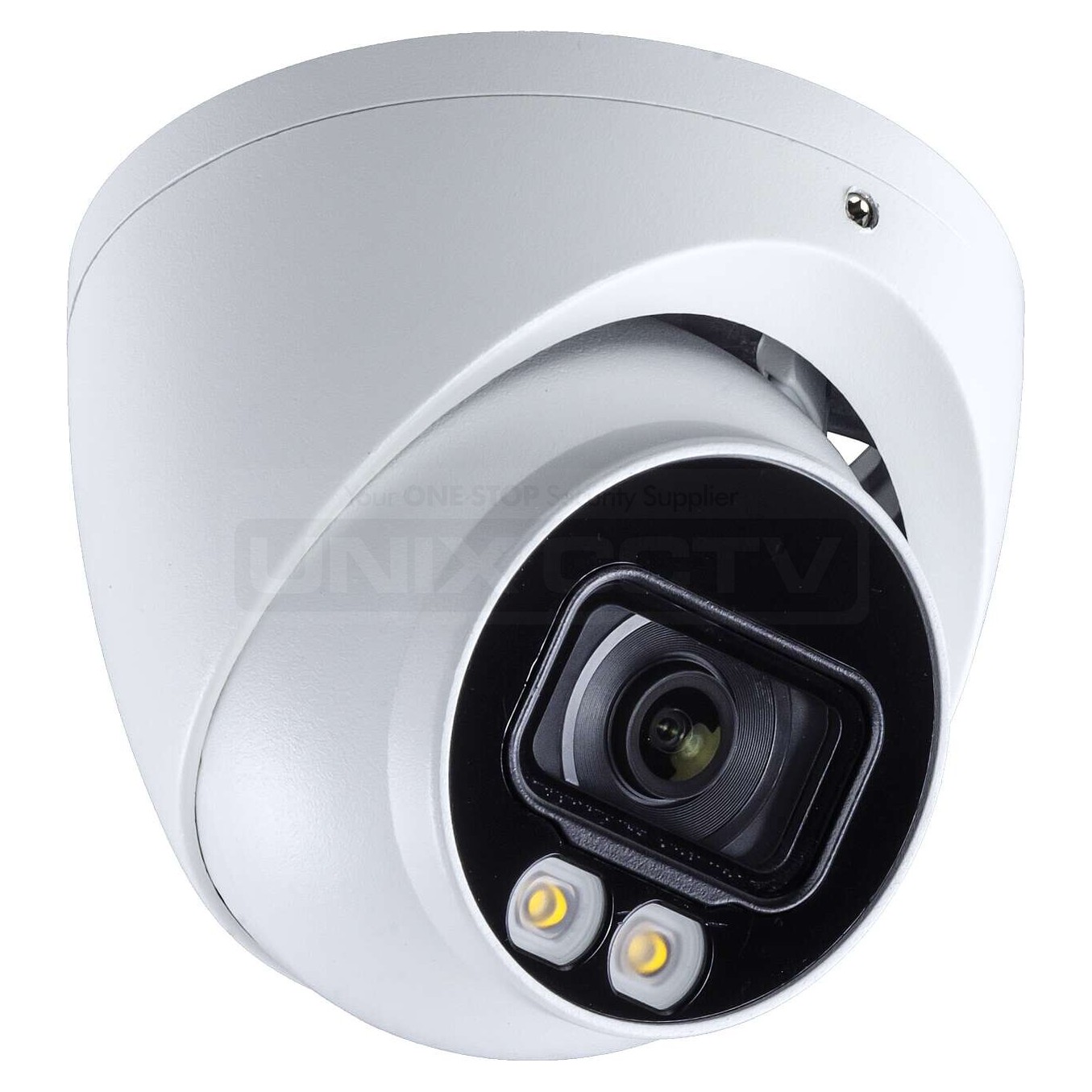

Eyemax EIU-E5042-AW28 Pro 5MP 4-IN-1 Turret Coax Camera, Fixed Lens

Smart Dual Illuminators (IR + White Light) IR mode white light turns on motion detection • CVI / CVBS / AHD / TVI (4-In-1) switchable • 120dB WDR • Super Adapt • 2.8mm • IP67 • 12VDC • Built-in Mic

Mount Accessories

Wall Mount Bracket	CWB E204W
Junction Box	CJB E130

Camera
Pixel	5MP
Image Sensor	5MP CMOS
Max. Resolution	2880 (H) × 1620 (V)
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/3 s–1/100,000s NTSC: 1/4 s–1/100,000s
Min. Illumination	0.001 lux@F1.0 (Color, 30 IRE) 0.0001 lux@F1.0 (B/W, 30 IRE) 0 lux (Illuminator on)
S/N Ratio	>65dB
Illumination Distance	IR: 131.23 ft (40m) Warm light: 131.23 ft (40m)
Illuminator On/Off Control	Auto; manual
Illuminator Number	2 (IR light) 2 (Warm light)
Pan / Tilt / Rotation Range	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm
Max. Aperture	F1.0
Field of View	H: 111°; V: 57°; D: 131°
Iris Control	Fixed
Close Focus Distance	4.92 ft (1.5 m)
DORI distance	Detect: 216.54 ft (66.0 m) Observe: 86.61 ft (26.4 m) Recognize: 43.31 ft (13.2 m) Identify: 21.65 ft (6.6 m)
Video
Video Frame Rate (NTSC)	CVI: 5M@25 fps / 4M@30 fps / 1080p@30 fps AHD: 4M@30 fps TVI: 4M@30 fps; CVBS: 960H
Video Frame Rate (PAL)	CVI: 5M@25 fps / 4M@25 fps / 1080p@25 fps AHD: 4M@25 fps TVI: 4M@25 fps CVBS: 960H
Resolution	5M (2880 × 1620) 4M (2560 × 1440) 1080p (1920 × 1080) 960H (960 × 576/960 × 480)
Day/Night	Auto (ICR) / Color / B/W
BLC	BLC / HLC / WDR / HLC-Pro
WDR	120 dB
White Balance	Auto; Area white balance
Gain Control	Auto; manual
Noise Reduction	3D NR
Defog	Electronic defog
Digital Zoom	4×
Mirror	Yes
Privacy Masking	Off/On (8 areas, rectangle)
Illumination Mode	Smart IR&WL / WL Mode / IR Mode
Certifications
Certifications	CE (EN55032:2015, EN61000 ~ 3-2:2014, EN61000 ~ 3-3:2013, EN55024:2010+A1:2015, EN55035:2017, EN50130 ~ 4:2011+A1:2014, EN62368 ~ 1:2014+A11:2017) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4 ~ 2014) UL (UL62368 ~ 1+CAN/CSA C22.2 No.62368 ~ 1-14)
Port
Video Output	Video output choices of CVI/TVI/AHD/CVBS by one BNC port
Audio Input	One channel built-in MIC
Power
Power Supply	12 VDC ± 30%
Power Consumption	Max 5.7 W (12 VDC, LED on)
Environment
Operating Temperature	−40°C to +60°C (−40°F to 140°F)
Operating Humidity	<95% (RH), non-condensing
Storage Temperature	−40°C to +60°C (−40°F to 140°F)
Protection	IP67
Structure
Casing Material	Metal
Product Dimensions	Φ4.17" × 3.69" (Φ106.0 mm × 93.6 mm)
Packaging Dimensions	5.83" × 5.47" × 5.39" (148 mm × 139 mm × 137 mm )
Net Weight	1.08 lb (0.49 kg)
Gross Weight	1.46 lb (0.66 kg)
Installation	Wall mount; ceiling mount; vertical pole mount
