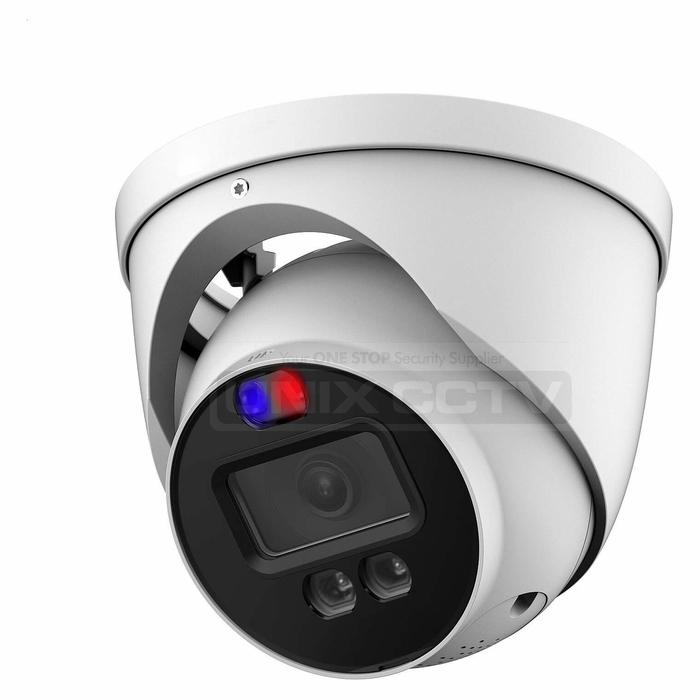

Eyemax ECU-E8342-LW28A 8MP (4K) Night Color Turret 3-in-1 Camera, Red and Blue Flashlight Alarm

Siren and Light Active Deterrence, 130ft White LED Range, Fix Lens, 12VDC

Mount Accessories

Wall Mount Bracket	CWB-E203W
Junction Box	CJB-E137

Camera
Image Sensor	1/2.8" CMOS
Max. Resolution	3840(H) × 2160(V)
Pixel	4K
Scanning System	Progressive
Electronic Shutter Speed	PAL: 1/3s ~ 1/100000s NTSC: 1/4s ~ 1/100000s
S/N Ratio	>65 dB
Min. Illumination	0.005 Lux/F1.6, 0 Lux warm light on
Illumination Distance	40 m (131.2 ft)
Illumination Type	Warm light
Illuminator On/Off Control	Auto; manual
Illuminator Number	2 (Warm light)
Pan/Tilt/Rotation Range	Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360°
Lens
Lens Type	Fixed-focal
Mount Type	M12
Focal Length	2.8 mm
Max. Aperture	F1.6
Field of View	H: 107°; V: 56°;D: 127°
Iris Type	Fixed iris
Close Focus Distance	1.5m(4.92ft)
DORI Distance	Detect: 87.7 m (287.73 ft) / Observe: 35.1m (115.16 ft) / Recognize: 17.5m / Identify : 8.8m (28.87 ft)
Video
Frame Rate	CVI: 4K@15fps/25fps/30fps, 4M@25fps/30fps; AHD: 4K@15fps; TVI: 4K@15fps
Resolution	4K(3840 × 2160); 4M(2560 × 1440)
BLC Mode	BLC / HLC / DWDR
WDR	DWDR
White Balance	Auto / Manual
Gain Control	Auto / Manual
Noise Reduction	2D
Smart Light	Yes
Mirror	Off / On
Privacy Masking	Off / On (8 Area, Rectangle)
Certifications
Certifications	CE (EN55032:2015, EN61000 ~ 3-2:2014, EN61000 ~ 3-3:2013, EN55024:2010+A1:2015, EN 55035:2017, EN50130 ~ 4:2011+A1:2014) FCC (CFR 47 FCC Part 15 subpartB, ANSI C63.4 ~ 2014) IEC 62368 ~ 1:2014 (Second Edition)
Port
Video Output	1 BNC output Support CVI / TVI / AHD
Audio Input	Built-in mic
Alarm out	1ch alarm out
Active Deterrence
Red / Blue Light Warning	Flash: 5 s–30 s; frequency: high / medium / low
Sound Warning	Audio 1/2/3; Volume: high/medium/low; duration: 5 s–30 s; 110 dB
Power
Power Supply	12V ±30% DC
Power Consumption	Max 7.7W (12V DC, warm light on)
Environment
Operating Temperature	−40°C to +60°C (–40°F to 140°F); <95% (non-condensation)
Storage Temperature	−40°C to +60°C (–40°F to 140°F); <95% (non-condensation)
Ingress Protection	IP67
Structure
Casing	Metal
Camera Dimensions	∅122.0 mm × 110.9 mm (Φ4.8" × 4.37")
Net Weight	0.69 kg (1.52 lb)
Gross Weight	0.95 kg (2.01 lb)
