Home CCTV Cameras - Analog Dome CCTV Cameras Weather and Vandal Proof (Outdoor/Indoor) Dome CCTV Cameras Eyemax Storm Series DT 594FV Waterproof IP68 Vandal Resistant 1/3" Sony Double Scan CCD 580TVL 2.8~12mm AVF Lens, OSD, WDR, DNR

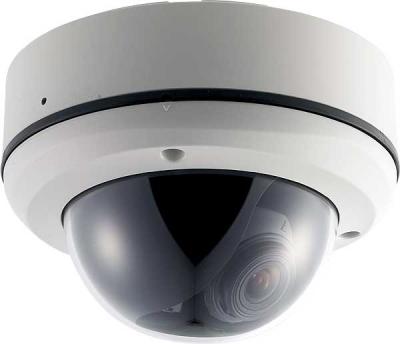

EYEMAX STORM SERIES DT 594FV FULLY WATERPROOF IP68 VANDAL RESISTANT CASE DOME CCTV CAMERA 1/3" SONY DUAL SCAN CCD 580TVL 2.8~12MM AVF LENS, ON SCREEN MENU, WIDE DYNAMIC RANGE, AUTO FILTER CHANGE, DIGITAL NOISE REDUCTION
Please note, this product has been discontinued by manufacturer. Before ordering, please Contact Us or call 866-446-2288 for availability or for suggestion on compatible replacement.
WIDE DYNAMIC RANGE (WDR)SS-II DSP chip allows the camera to find the best picture conditions in any environment and automatically gives a necessary light level compensation, so you can always obtain the clear picture, the finest details and perfect light level compensation.
AUTO FILTER CHANGEAt daytime, IR light is filtered away in the camera by the IR-cut filter in order to render color images that humans are used to. When light conditions are too dark to render color images, the IR-cut filter is automatically removed to enable the camera to make use of the IR light to produce a high quality black & white video.
OSD CAMERA SETUPDT 594FV have a small program built-in to the camera to help users to setup the camera function without difficulties. No more reading a manual and tipping dip-switches to configure the camera.
VANDAL-RESISTANT CASEThe polycarbonate impact resistant dome can withstand repeated blows from a 10-pound hammer and not break. They are perfect for prisons, banks, military installations and other high risk areas.
3-AXIS DOME CONSTRUCTIONAccompanying with 3-Axis construction, the Dome camera can be rotated, shifted horizontally or vertically so you can position the camera to get the pictures you need.
WHY 3-AXIS DOMES ARE EASY TO INSTALL?
1. 3-AXIS DOME INSTALLATION ON WALLUnlike other domes, 3-AXIS DOME can change view by turning the 3rd axis easily without a hassle!
2. 3-AXIS DOME INSTALLATION ON CEILINGUnless reinstalling camera bracket, you won't be able to flip the view on ordinary domes. 3-AXIS DOME can change view by turning the 3rd axis easily without a hassle!
3. SERVICE VIDEO-OUTIt has a small connector that duplicates the video output. This comes very handy once camera is in place and you have no way to see how is the angle like unless you see the monitor at the cable end. Just plug and finish your job in a miniute.
4. OSD CAMERA CONTROLO.S.D (On Screen Display) provides you with custom function control. We all know auto-setting is not always the best choice for certain circumstances. So, there is a little joystick control button to give more selectable options in order to perform best picture quality possible.
- 1/3" Sony Double Scan CCD
- 2.8 ~ 12mm Auto-Iris Vari-focal Lens
- 580(H) TV Line (Color) Crystal Clear Ultra High Resolution
- 0.3 Lux at F1.2 (Color) / 0.00004 Lux (IR On)
- OSD (On Screen Display) - Easy camera setup
- Digital Noise Reduction (DNR) : Improve the total DVR recording time up to 30%
- DC 12V / AC 24V Dual Power
- Auto White Balance (AWB) / Back Light Compensation (BLC) / Auto Gain Control (AGC)
- Vandal-Resistant Case
|Lens||2.8 ~ 12mm Auto-Iris Vari-Focal Lens|
|CCD Sensor||1/3 inch Sony Double Scan CCD with Samsung Chipset|
|Total Pixels||811(H) x 508(V) 410K Pixel|
|Effective Pixels||768(H) x 494(V) 380K Pixel|
|Scanning System||2:1 Interlace|
|Synchronization||Internal / Line Lock|
|Dynamic Range||52dB (x128)|
|Backlight||WDR / BLC / OFF Selectable|
|Resolution||580 TV Lines|
|S/N (Y signal)||52dB (AGC Off, Weight On)|
|Min. Illumination||0.3 Lux at F1.2 (Color) / 0.00004 Lux (Sens-up x256)|
|White Balance||ATW / AWC / Manual / Outdoor (1,800'K ~ 10,500'K) / Indoor (4,500'K ~ 8,500'K)|
|Electronic shutter speed||1/60 sec ~ 1/120,000 sec|
|Sens-Up||AUTO / FIXED / OFF (selectable limit x2 ~ x256)|
|Gain Control||LOW, HIGH, OFF selectable|
|DNR||OFF / ON (0 ~ 32 Level Adjustable)|
|Motion Detection||ON / OFF (8 Zone, ALARM Output)|
|Privacy||ON / OFF (8 Zone, Alarm Output)|
|Mirror (H-REV) / FLIP (V-REV) / Freeze||ON / OFF|
|Sharpness||ON / OFF (Level Adjustable)|
|D&N Selection||COLOR / Black & White / AUTO / EXT|
|DIS||ON / OFF|
|Digital Zoom||ON (x10) / OFF|
|Blemish Compensation||256 point (Even 128 Point, ODD 128 Point)|
|Lens||DC / VIDEO|
|Operating Temperature||-10°C ~ +50°C (14°F ~ 122°F) / 30% ~ 80% RH|
|Storage Temperature||-20°C ~ +60°C (-4°F ~ 140°F) / 20% ~ 90% RH|
|Power||DC 12V / AC 24V|
|Casing / Dimensions||5.5"(Ø) x 4.0"(H) / 2.4lbs / IP68 Waterproof & Vandal-Resistant Large Case|
