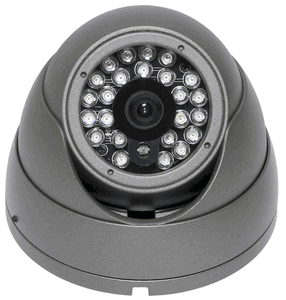

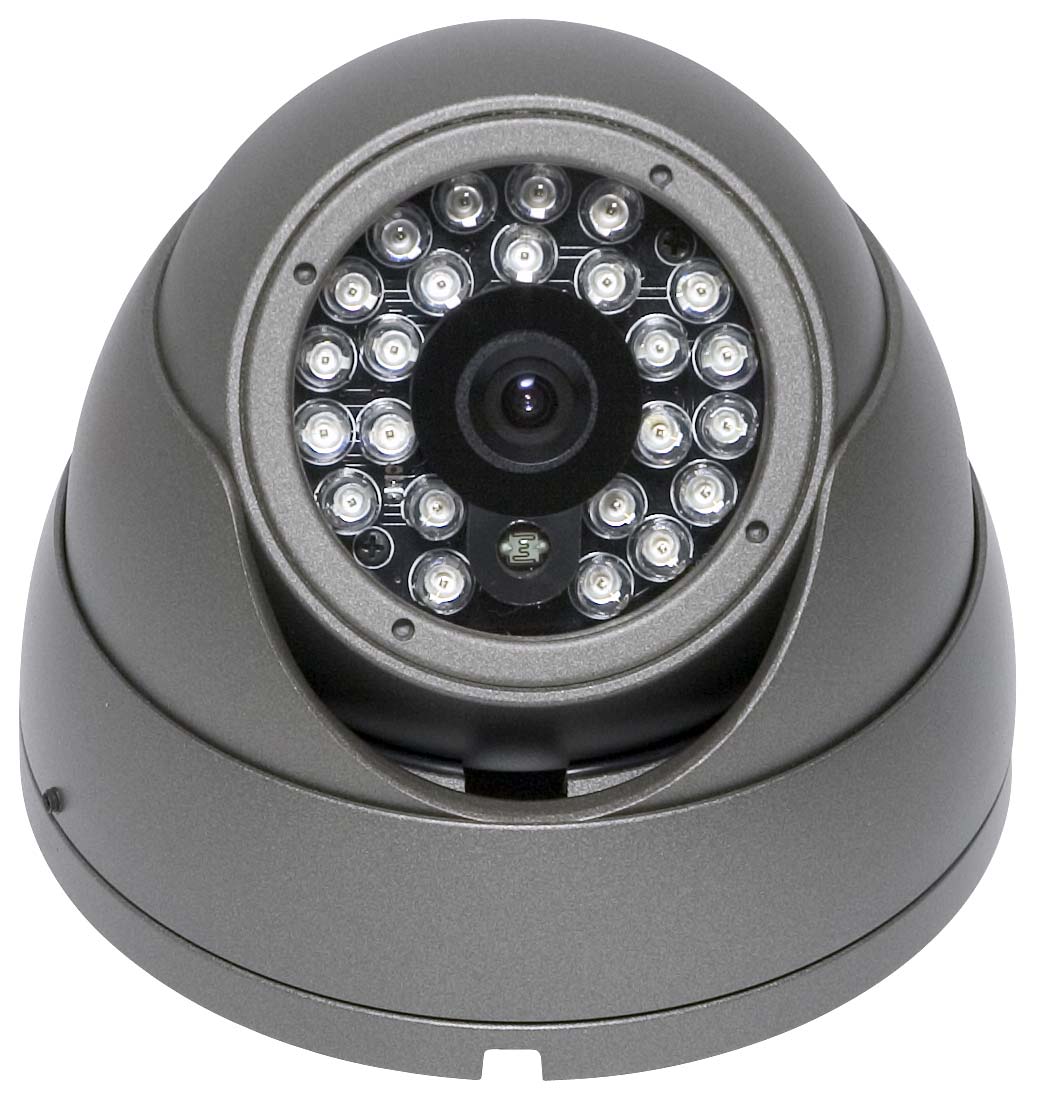

Eyemax IB4724 DO TPVDIR480 1/3" Sony Super HAD CCD 480TVL, 60FT IR

Please note, this product has been discontinued by manufacturer. Before ordering, please Contact Us or call 866-446-2288 for availability or for suggestion on compatible replacement.

Vandal Resistant!!! Metal Case!

NEW MANUFACTURER MODEL NUMBER IB 4724

24 IR LED, see up to 60ft in total darkness. Metal case. 1/3

We Carry the Best Brands in CCTV Business

	IB4724
Resolution	480(Color) / 520(B/W) TV Lines Horizontally
Image Pick-up Device	Sony 1/3 inch Super HAD CCD with Sony process chip
Picture Elements	811(H) x 508(V) 410K pixels
Effective Picture Elements	768(H) x 494(V) 380K pixels
Scanning Area	3.65(H) x 2.74(V) mm
Scanning System	2:1 Interface/ 525 Lines / 60 Fields / 30 Frames
Iris Mode	DC Iris (only with Auto-Iris Lens) ESC (only with Fixed and Manual-Iris Lens)
Lens	6mm Fixed Lens
Minimum Illumination	0.3 Lux at F1.2 / 0 Lux (IR On)
Sync. System	Internal Only
Video Output	1.0 Vp-p Comp. 75Ω
Electronic Iris	1/60 sec ~1/100,000 sec
Backlight Compensation	Built-in
Gain Control	Built-in
White Balance	AWB
Day & Night	Auto / On
IR LED	24 IR LED up to 60ft
Gamma	r=0.45
S/N Ratio	50dB (AGC Off, Eight On)
Operating Temp.	14°F ~ 122°F
Power Source	DC 12V
Power Consumption (Recommendation)	120mA (IR LED off) / 1500mA (IR LED On. Max)
Dimensions	4.0”(Ø) x 3.5”(H) / 1.2 lbs / Metal Case
